Fuel Injector: Service and Repair
AR07.03-P-6520A Remove/Install Injection Valves (ME-SFI)

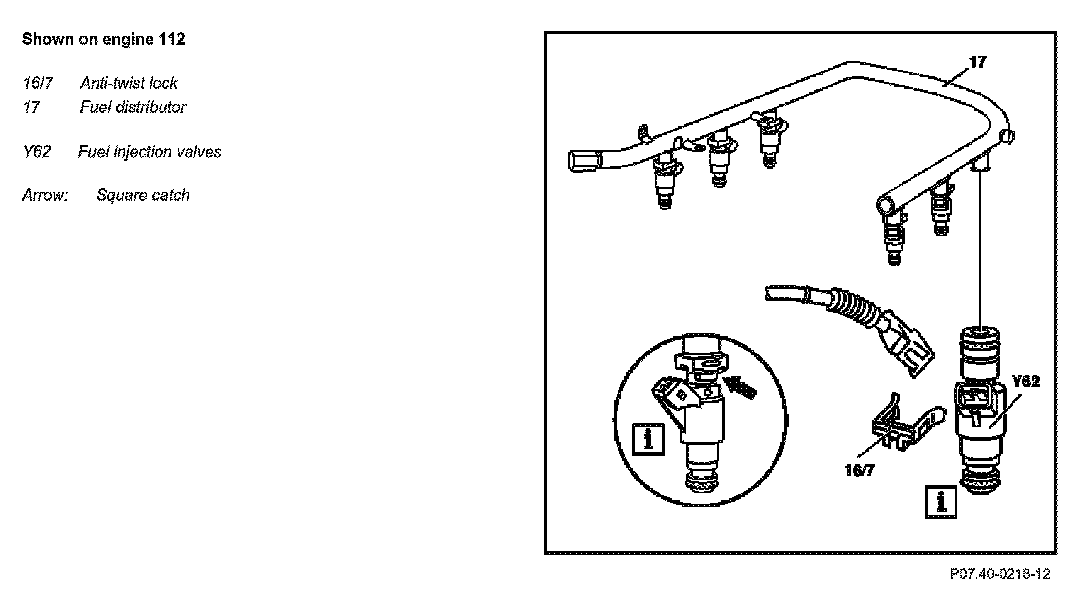

Component Identification:

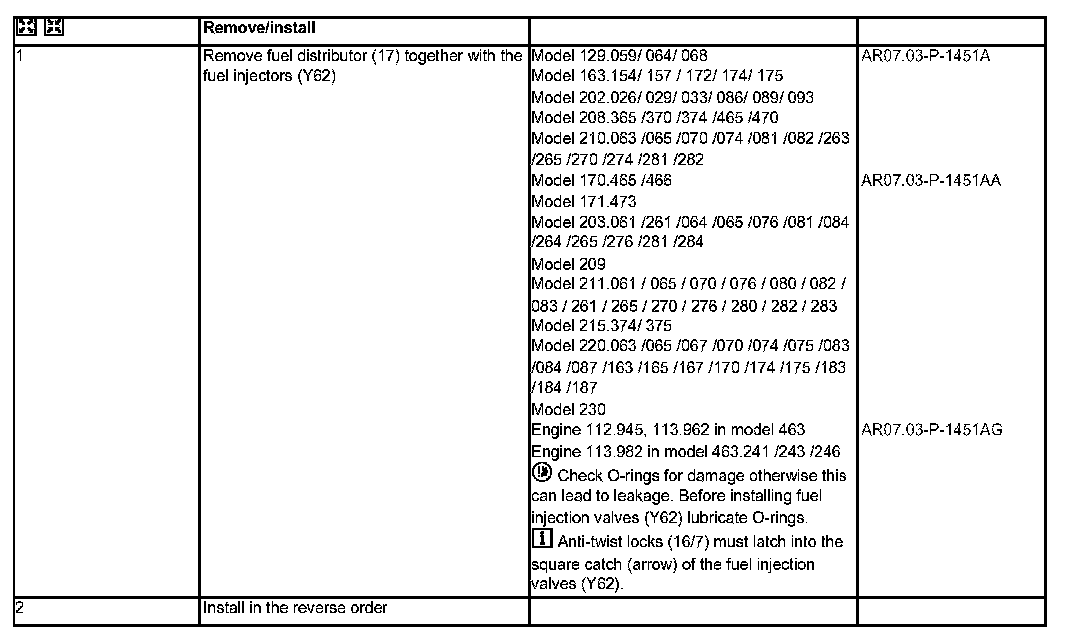

Steps 1 - 2:
