Home >> Mercedes Benz >> 2000 >> CLK 320 (208.365) V6-3.2L (112.940) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Engine Components >> Figure 13

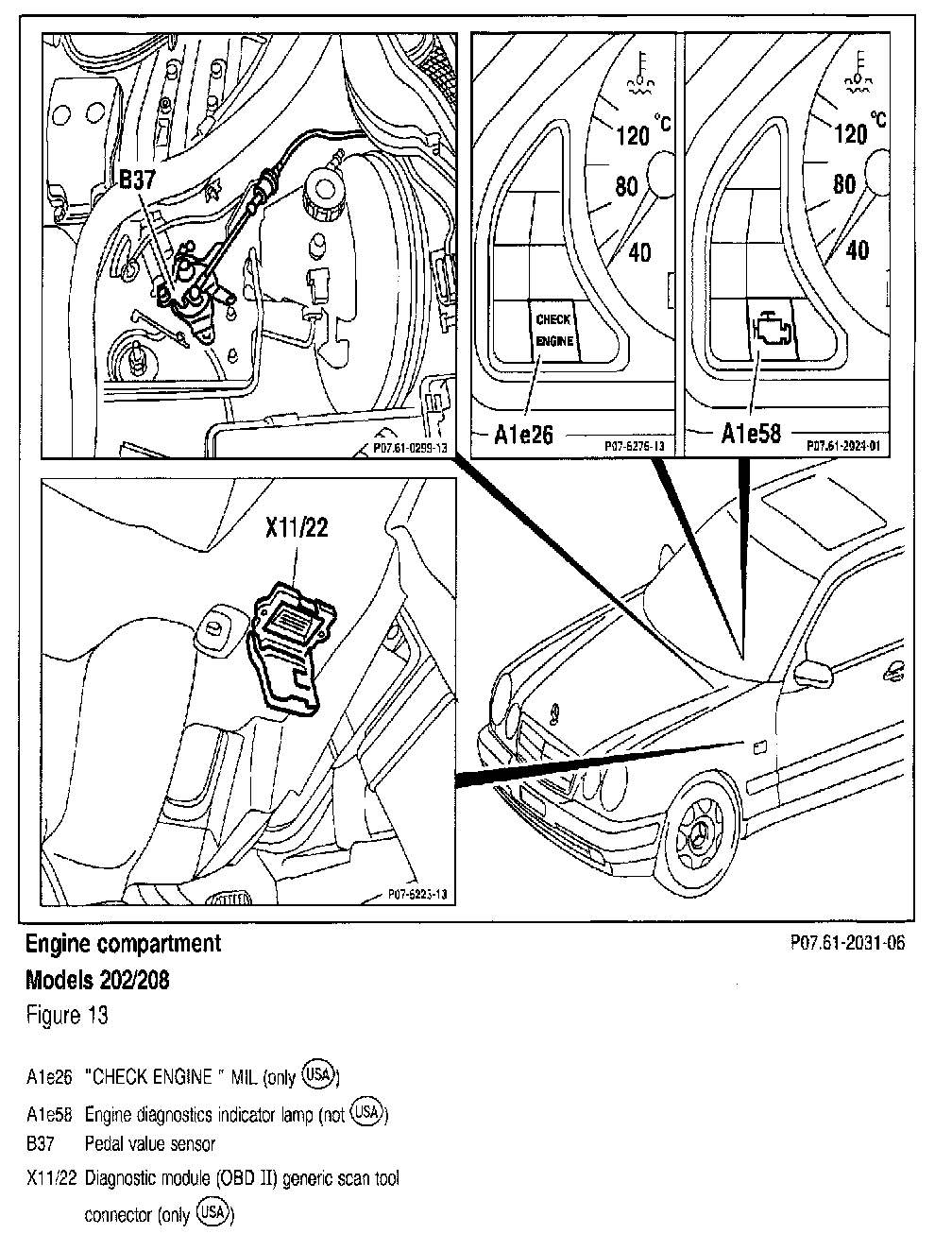

Figure 13
