Home >> Mercedes Benz >> 2000 >> CLK 320 (208.365) V6-3.2L (112.940) >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Component Tests and General Diagnostics >> Exterior Lighting >> Headlamp Range Adjustment >> Electrical Test Program >> Test - Section 23 and 24 >> 6.0 - 6.2

6.0 - 6.2

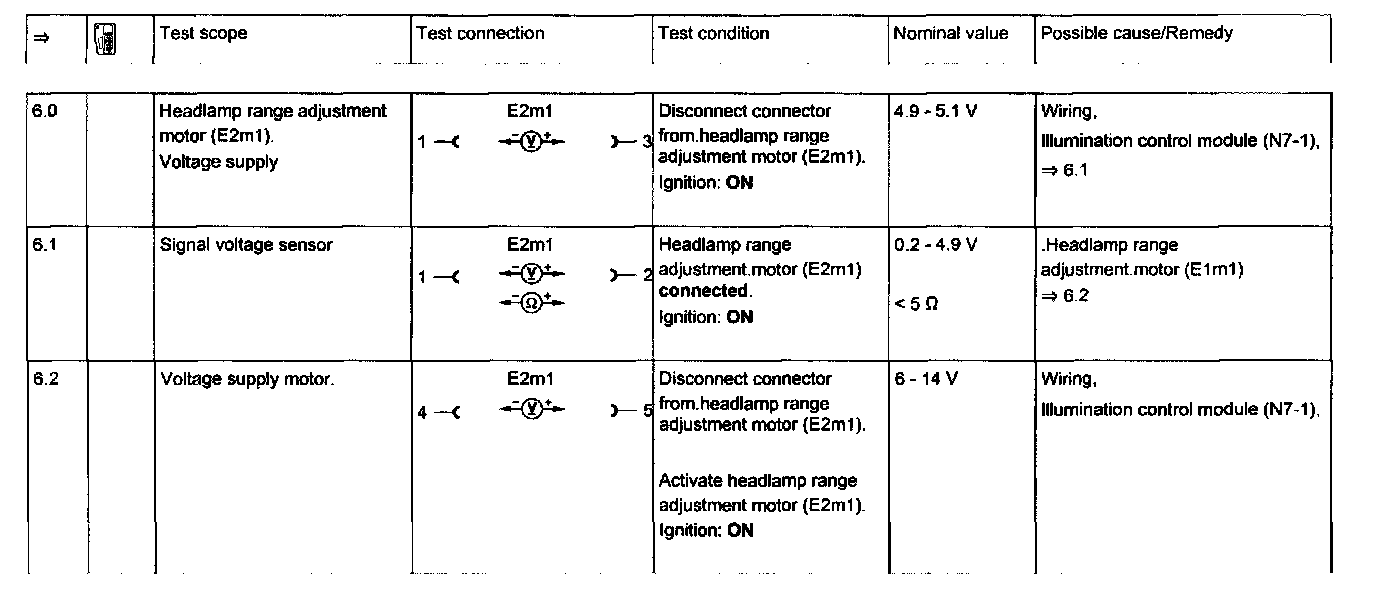

Steps 6.0 - 6.2:
