ETP - Preparation For Test [22]

Air Conditioning (A/C)

Models 208 as of MY 1998

Electrical Test Program (ETP) - Preparation for Test

1. Review 11, 12, 13, 14, 15, 20, 21, 22, 31, 32, 41
2. Connect HHT, see section 0.
3. Remove A/C pushbutton control module (N22), see AR83.40-P-6350C

Note: Upon completion of test, erase DTC memory from A/C pushbutton control module.

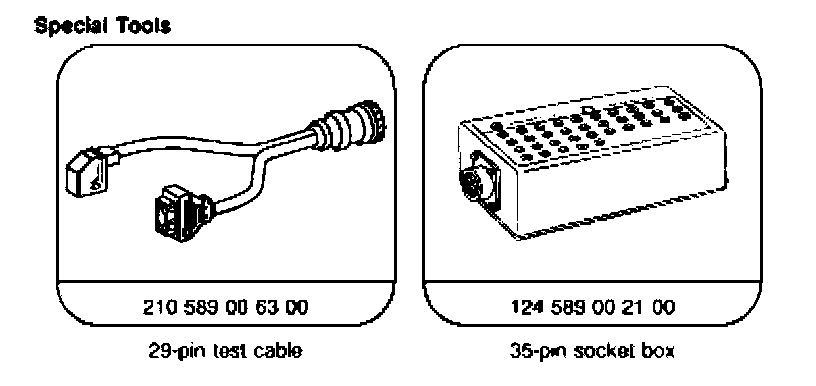

Special Tools:

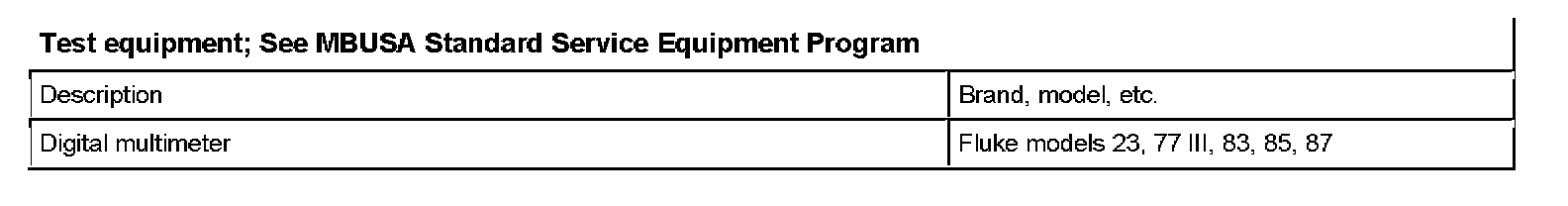

Test Equipment:

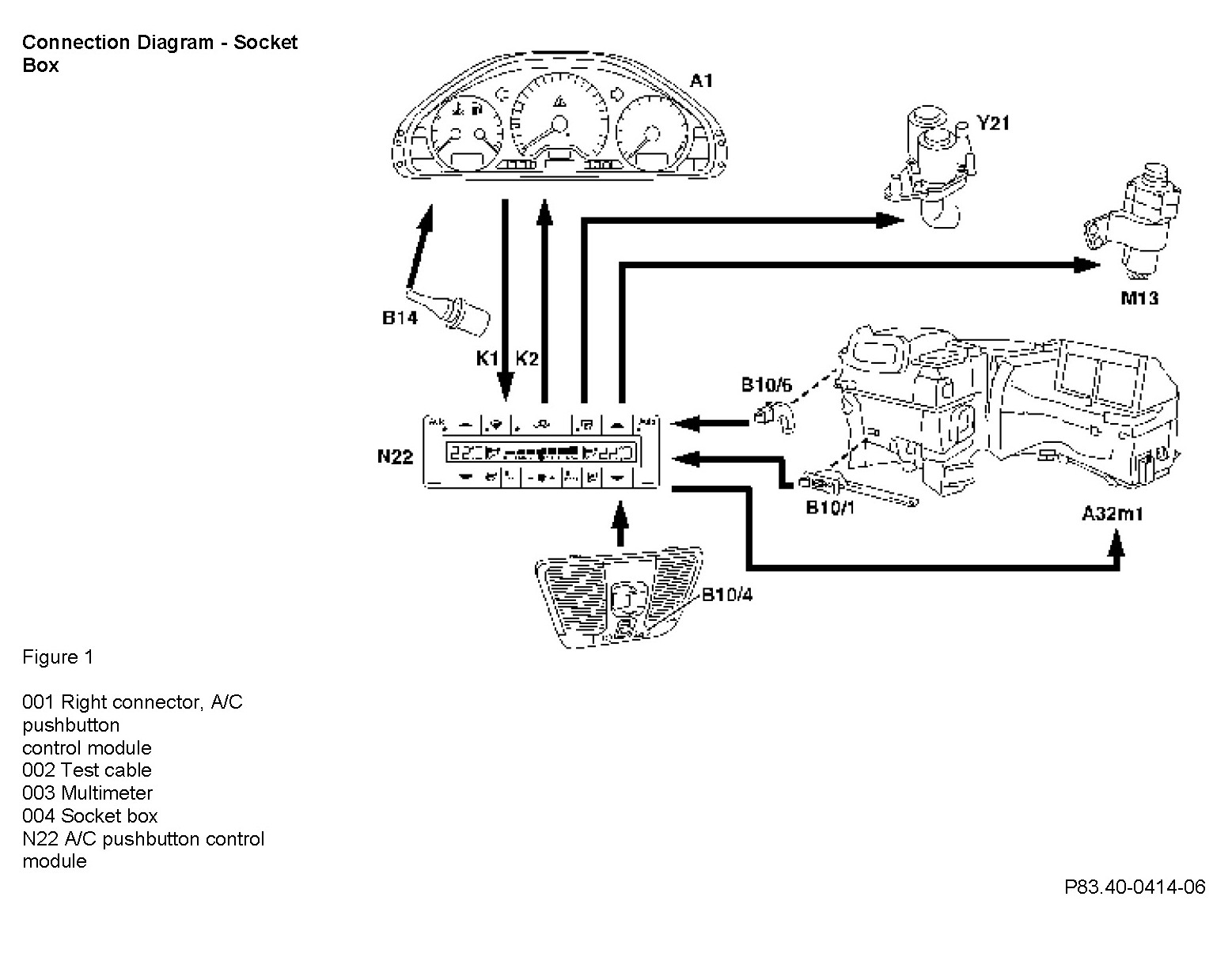

Connection Diagram:
