Air Conditioning (A/C)
Models 208 as of MY 1998

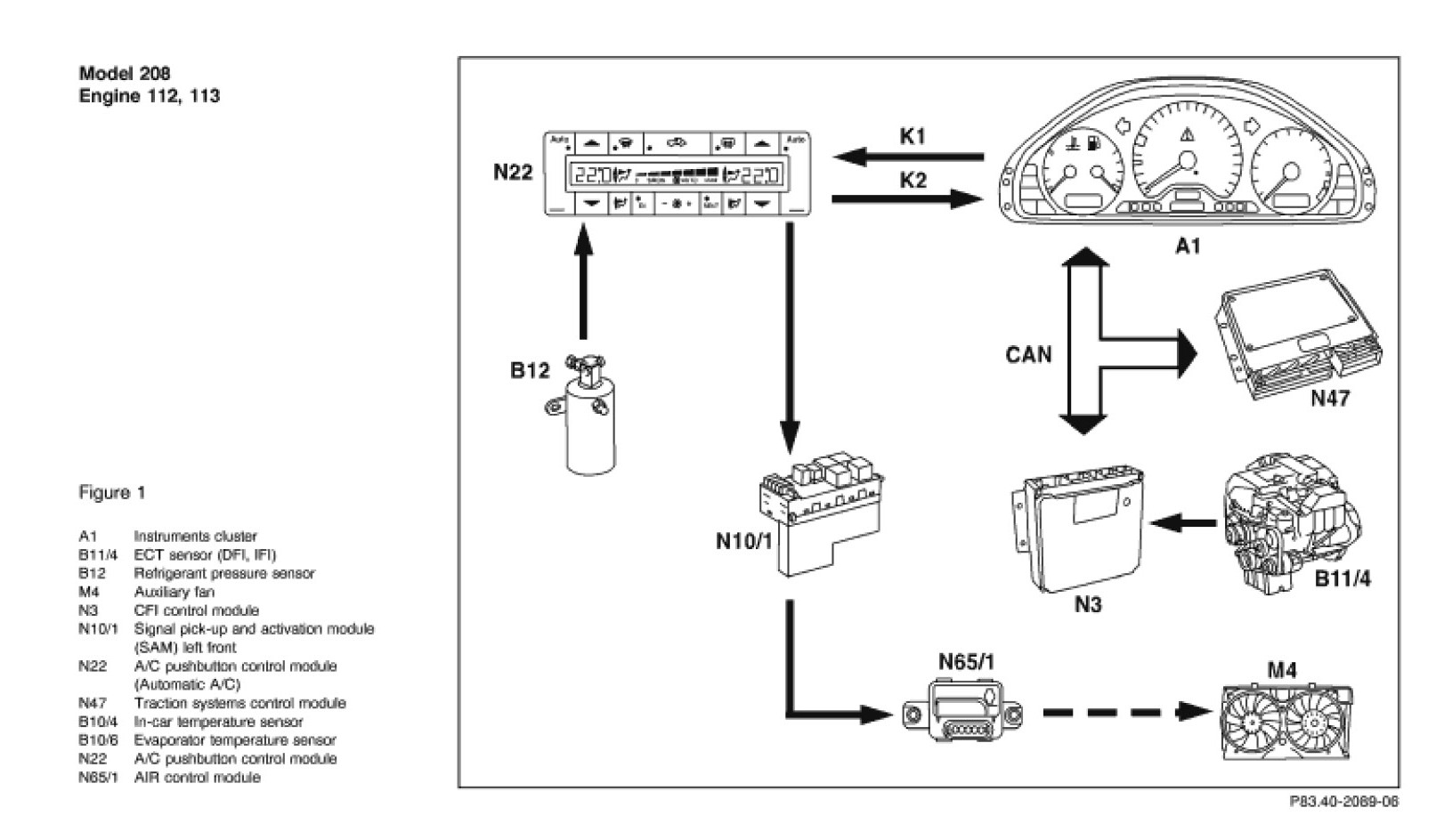

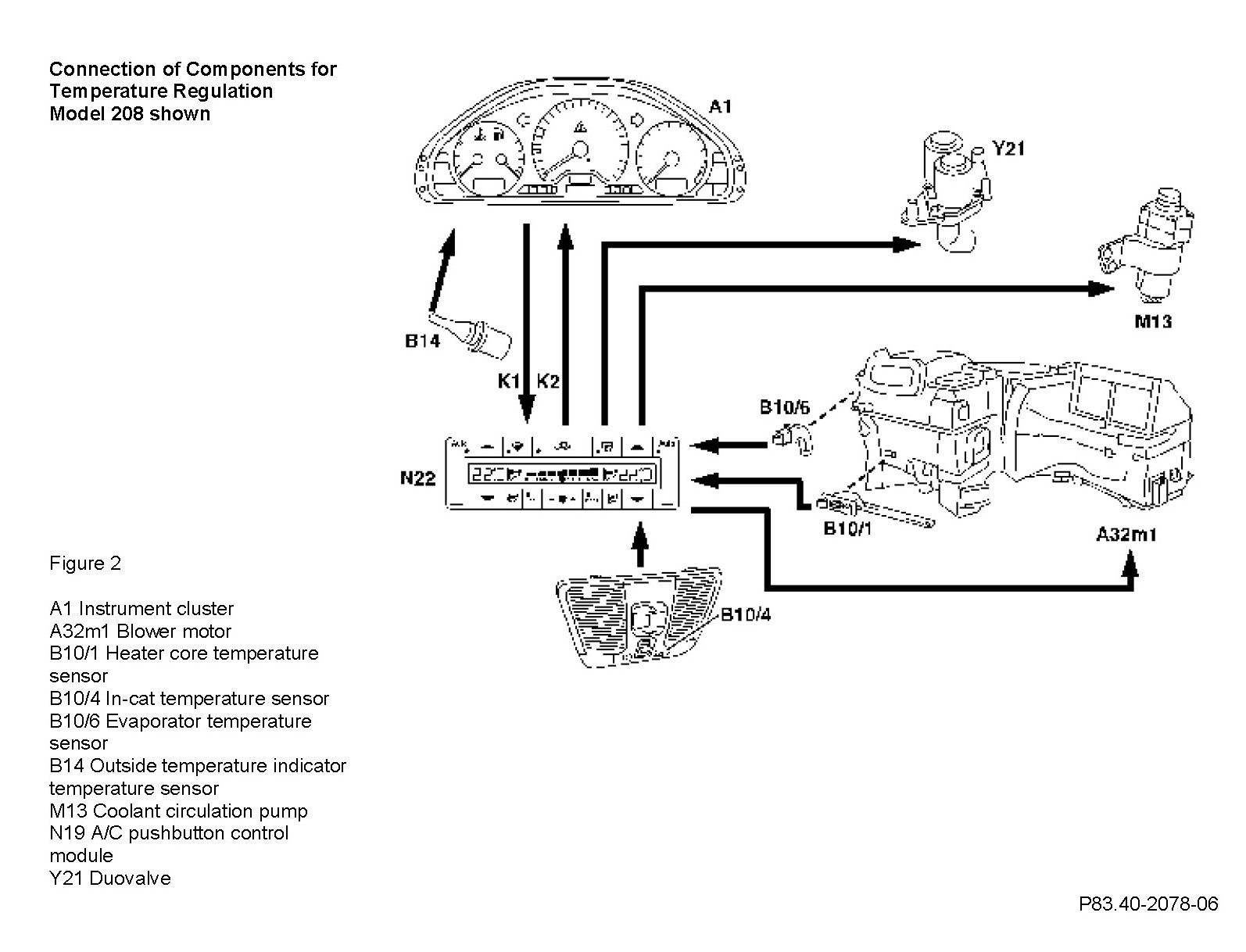

Electrical Test Program [ETP] - Connection of Components
