Electric Suction-Type Fan Control Module (Engine/A/C)

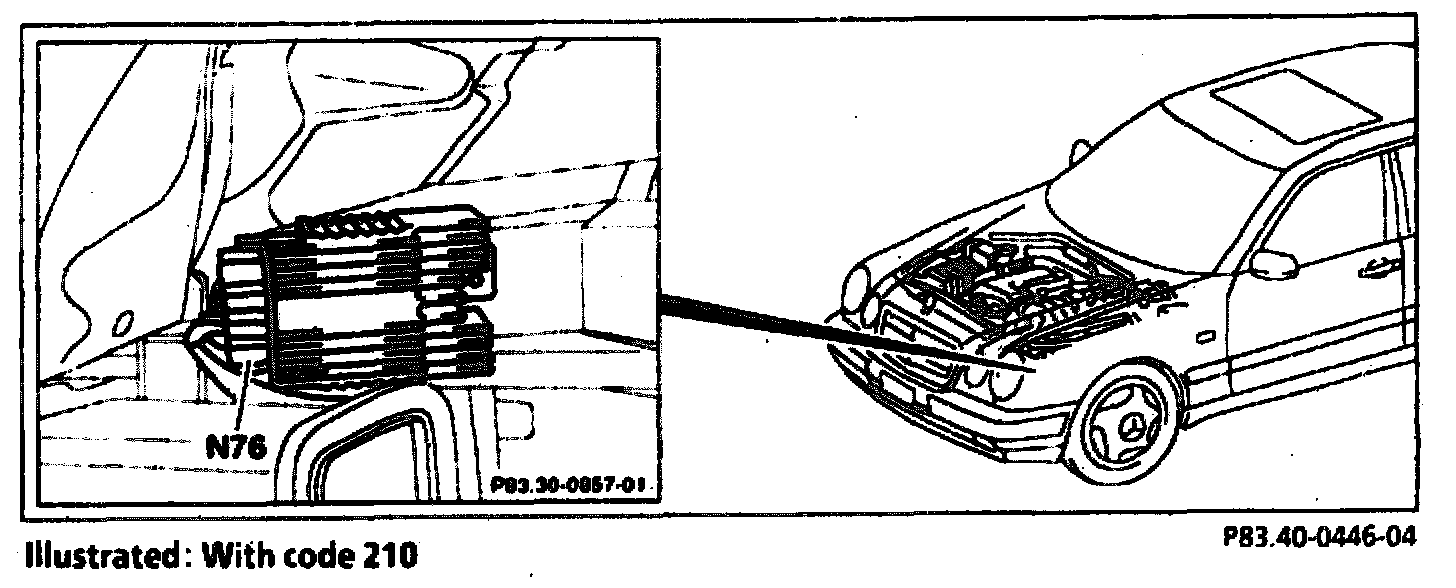

Illustrated: With Code 210:






The electric suction-type fan control module (engine/A/C) (N76) is located in the front left wheelhouse.
