Oil Pan: Service Precautions



Notes On Application Of Sealant Oil Pan

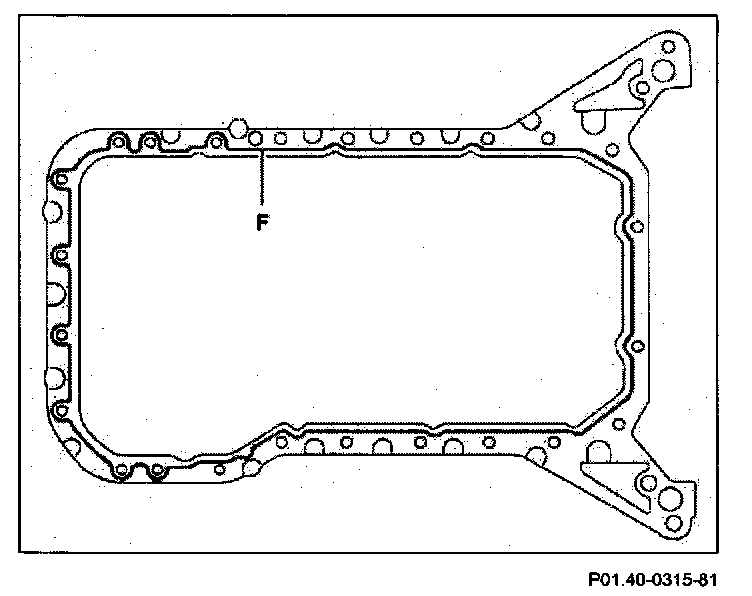

Application of sealant to top part of oil pan






NOTE:
- The line drawn F marks the application of sealant.
- Clean sealing surfaces, apply sealant only to the specified surfaces with a bead of 2.0 mm ± 0.5 mm.

The sealant must be applied within 10 minutes!
The silicone bead must not be spread.


Application of sealant to bottom part of oil pan






NOTE:
- The line drawn F marks the application of sealant.
- Clean sealing surfaces, apply sealant only to the specified surfaces with a bead of 2.0 mm ± 0.5 mm.

The sealant must be applied within 10 minutes!
The silicone bead must not be spread.
