Entry/Exit Lamps PE82.20-U-2100MB





Entry/Exit Lamps


{CZInterior Lights, PE82.20-U-2100MB:






Connector Assignment:

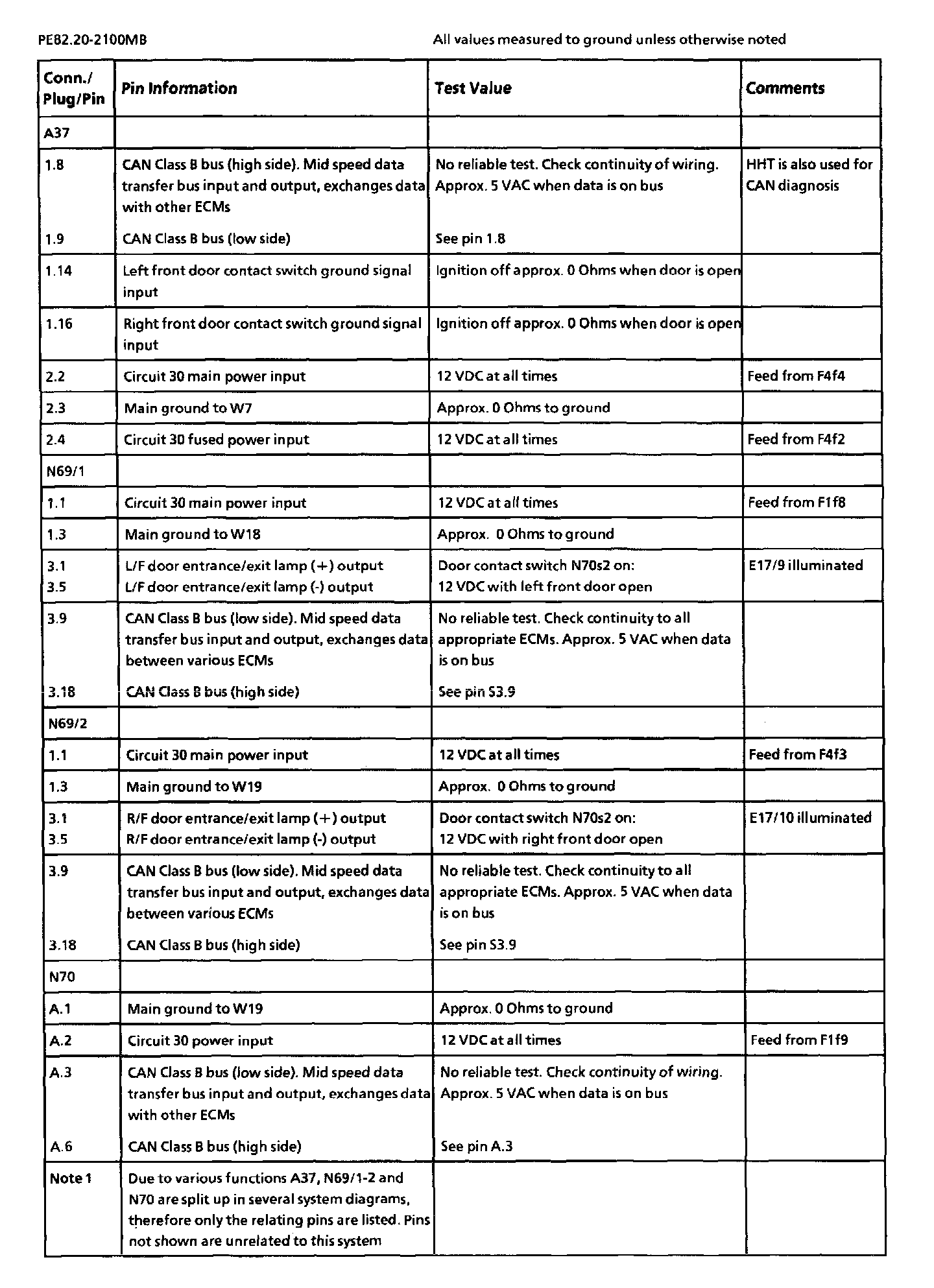

Pin Information:
