Interior Compartment (Cockpit)

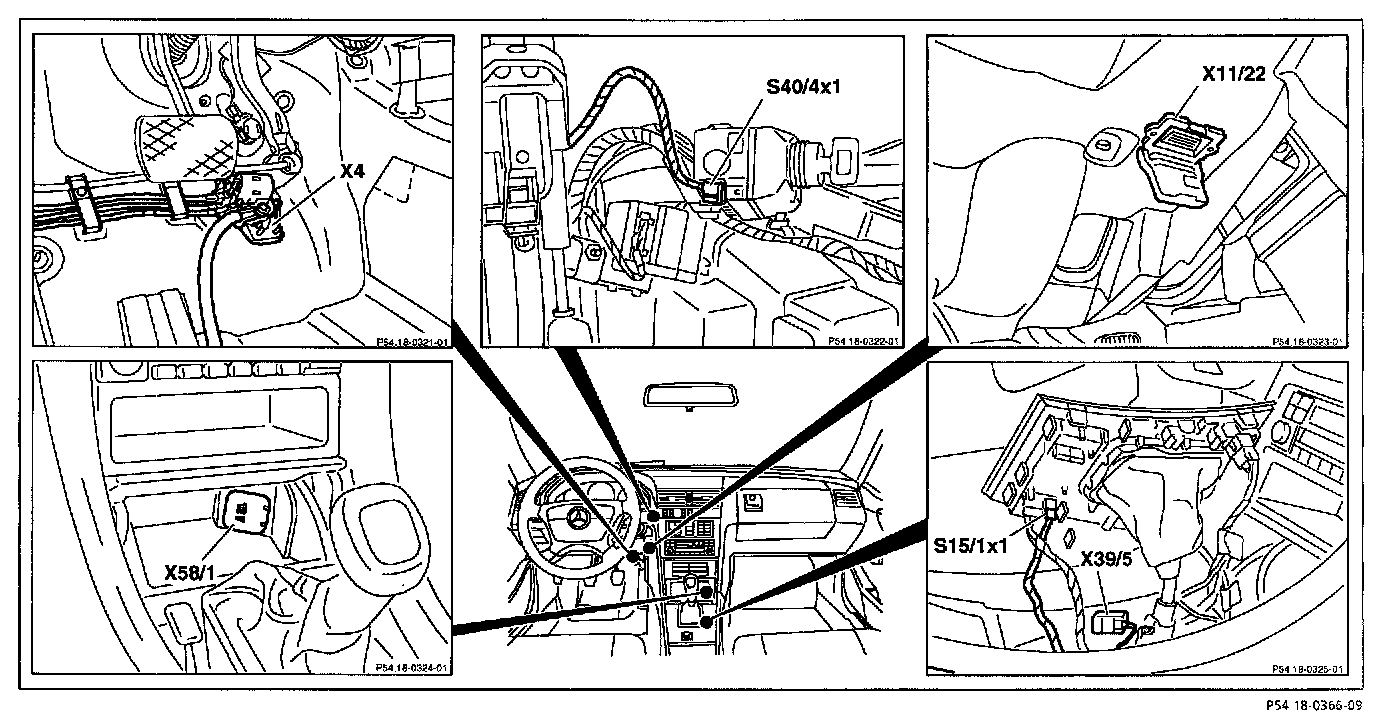

Interior Compartment (Cockpit), Connector Location,Wiring and Plug Connectors:






Interior Compartment, Wiring and Plug Connectors (Cockpit):

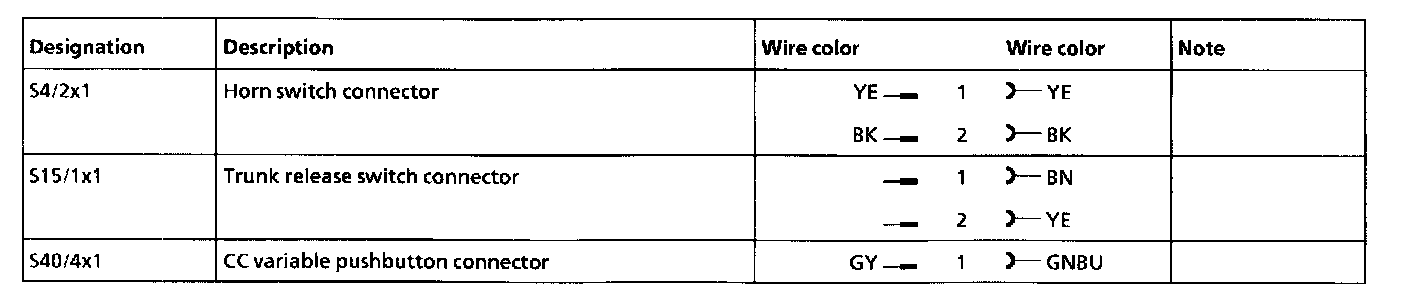

S4/2x1 - S40/4x1:

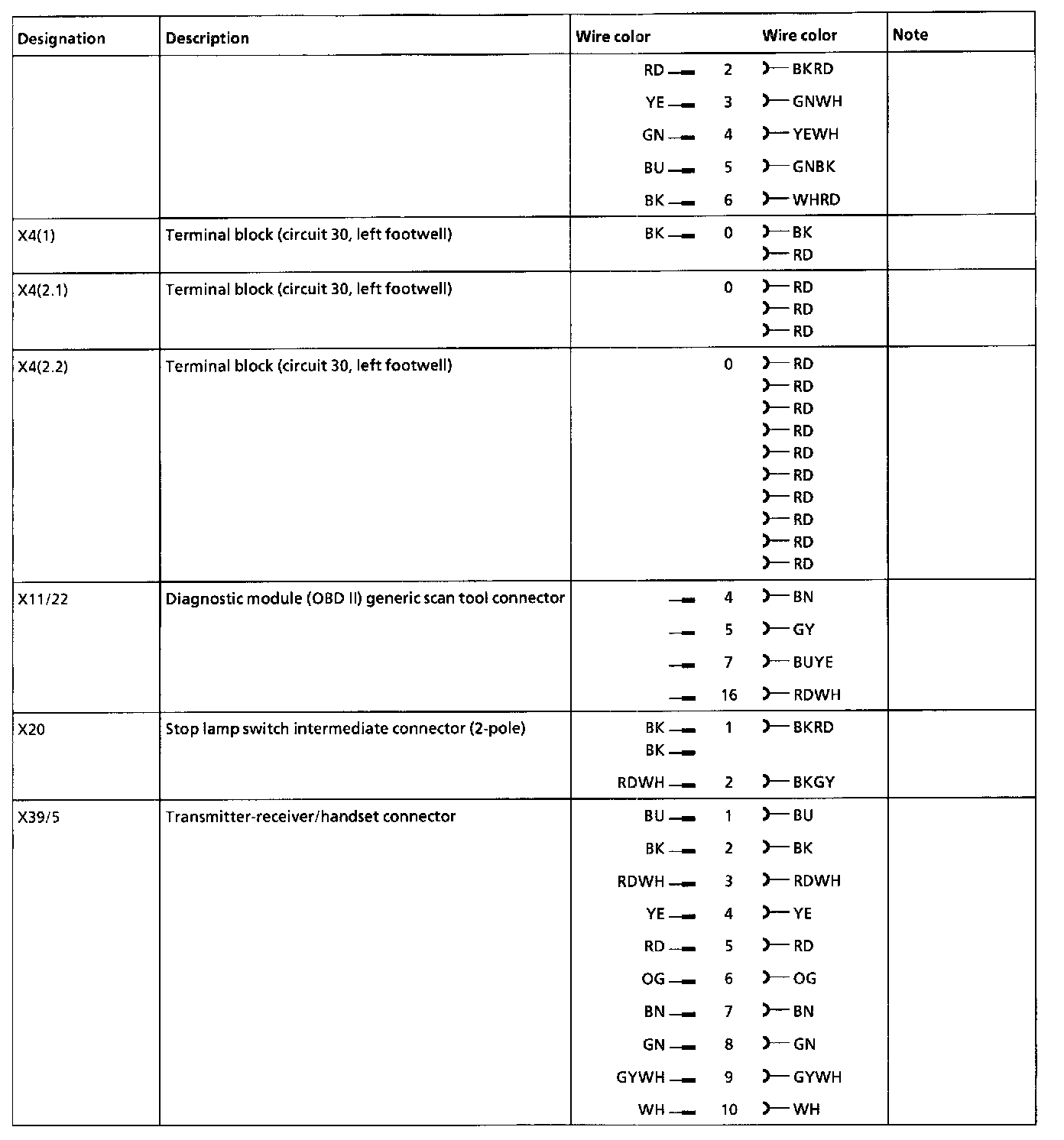

S40/4x1 - X39/5:
