Interior Compartment (Left)

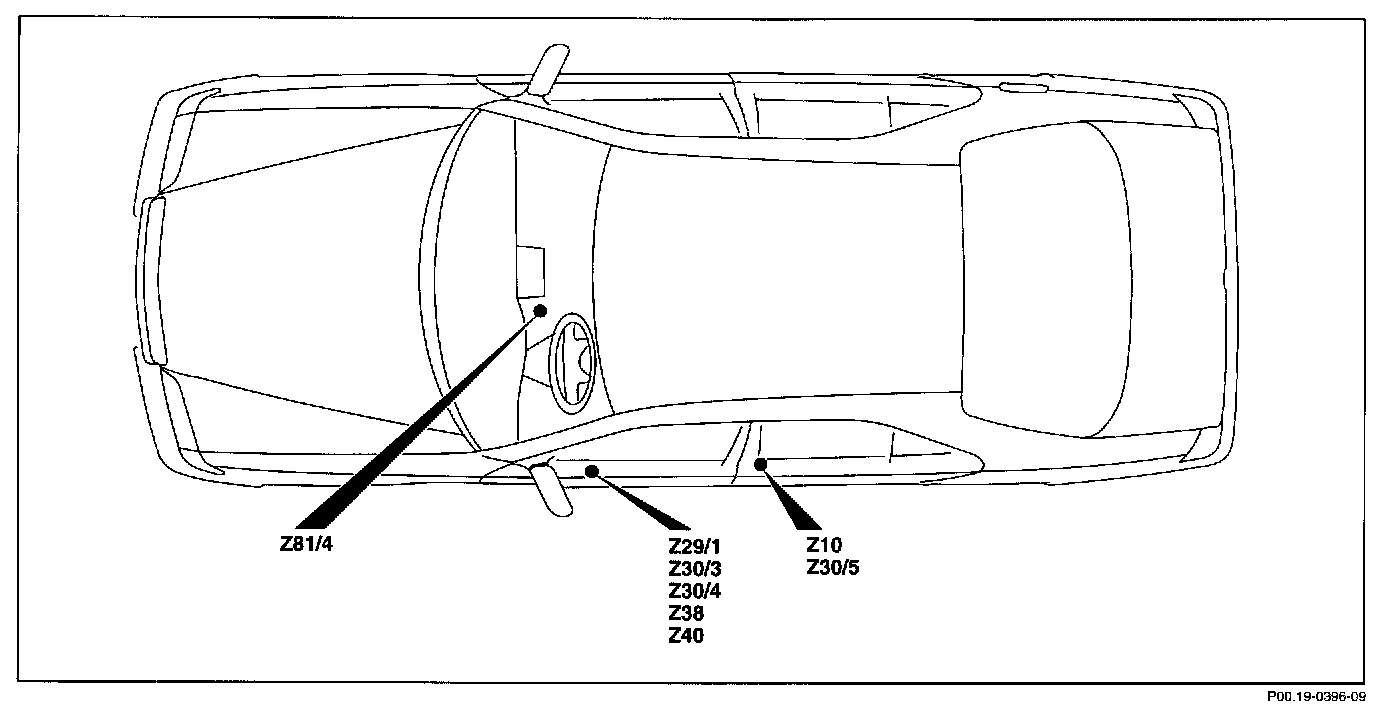

Arrangement and assignment of the wiring and plug connectors, interior compartment (left)

Interior Compartment (Left), Connector Location, Arrangement and Assignment of Z Connector Sleeve.:

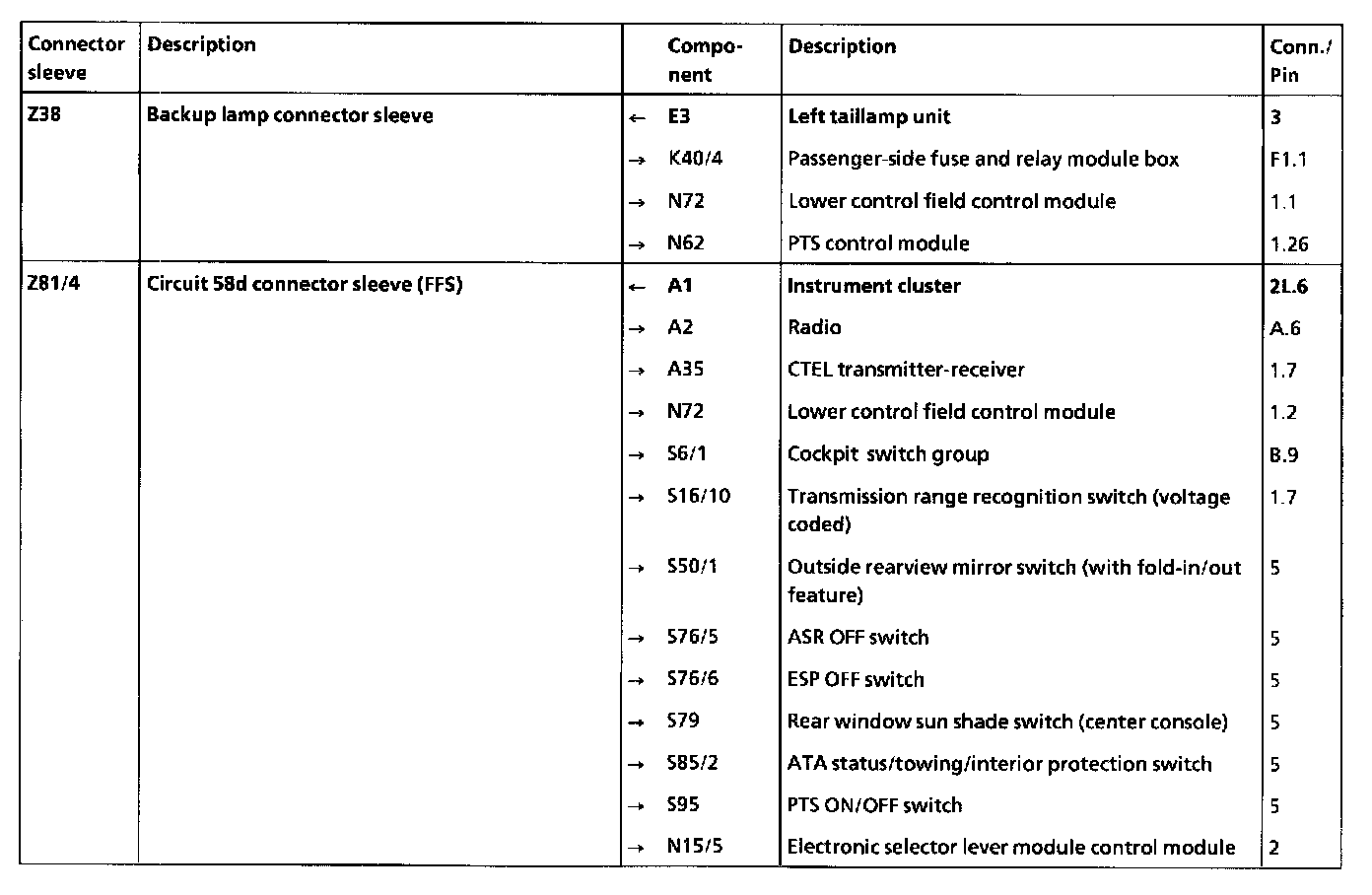

Z38 - Z81/4:
