Electronic Stability Program and SPS (DTC Memory [12])
Electronic Stability Program (ESP) and Speed-Sensitive Power Steering (SPS)
Model 129 (with engine 113) as of MY 1999
Model 202, 208 as of MY 1998 (ESP, BAS and SPS)
Model 210 (with engine 112, 113, 606) as of MY 1998
Diagnostic Trouble Code (DTC) Memory [12]
Preparation for DTC Readout
Warning! Life threatening injures possible due to vehicle slipping or toppling off while on lift. Prior to lift vehicle completely (wheels still in contact with floor), ensure that the vehicle is cntered within the lift columns and lift arm supports are correctly placed unto the vehicle contact points.
1. Review "Function Test" before continuing work.
2. Review section [13], [21], [22], [23]
3. Connect Hand-Held Tester (HHT) to data link connector (X11/4) according to connection diagram (see section 0). Read out DTC memory.
4. Ignition: ON
5. Read out DTC memory for the BAS, ETS, ME and ETC systems.
Note DTC readout is not possible using an impulse counter scan tool.

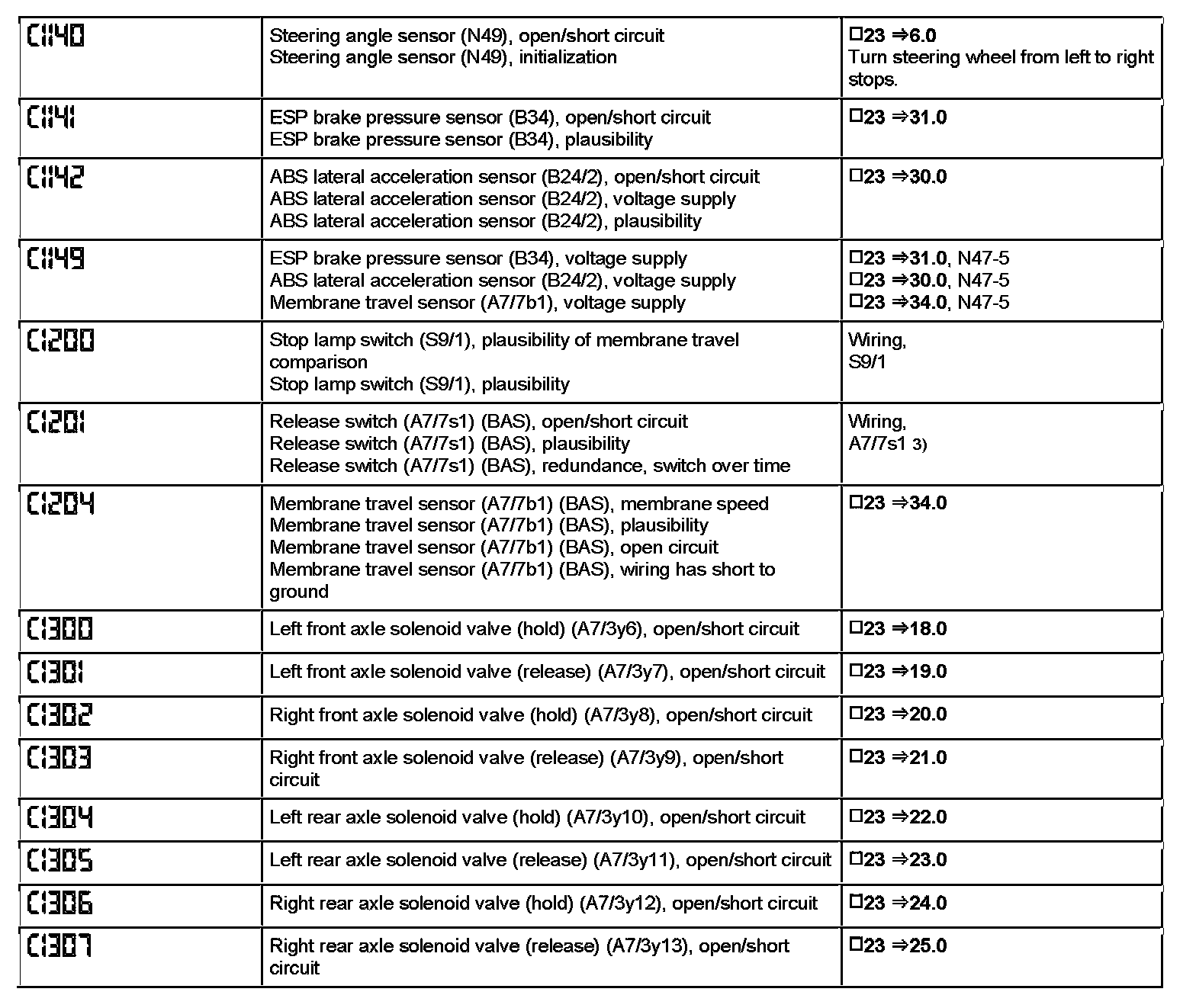

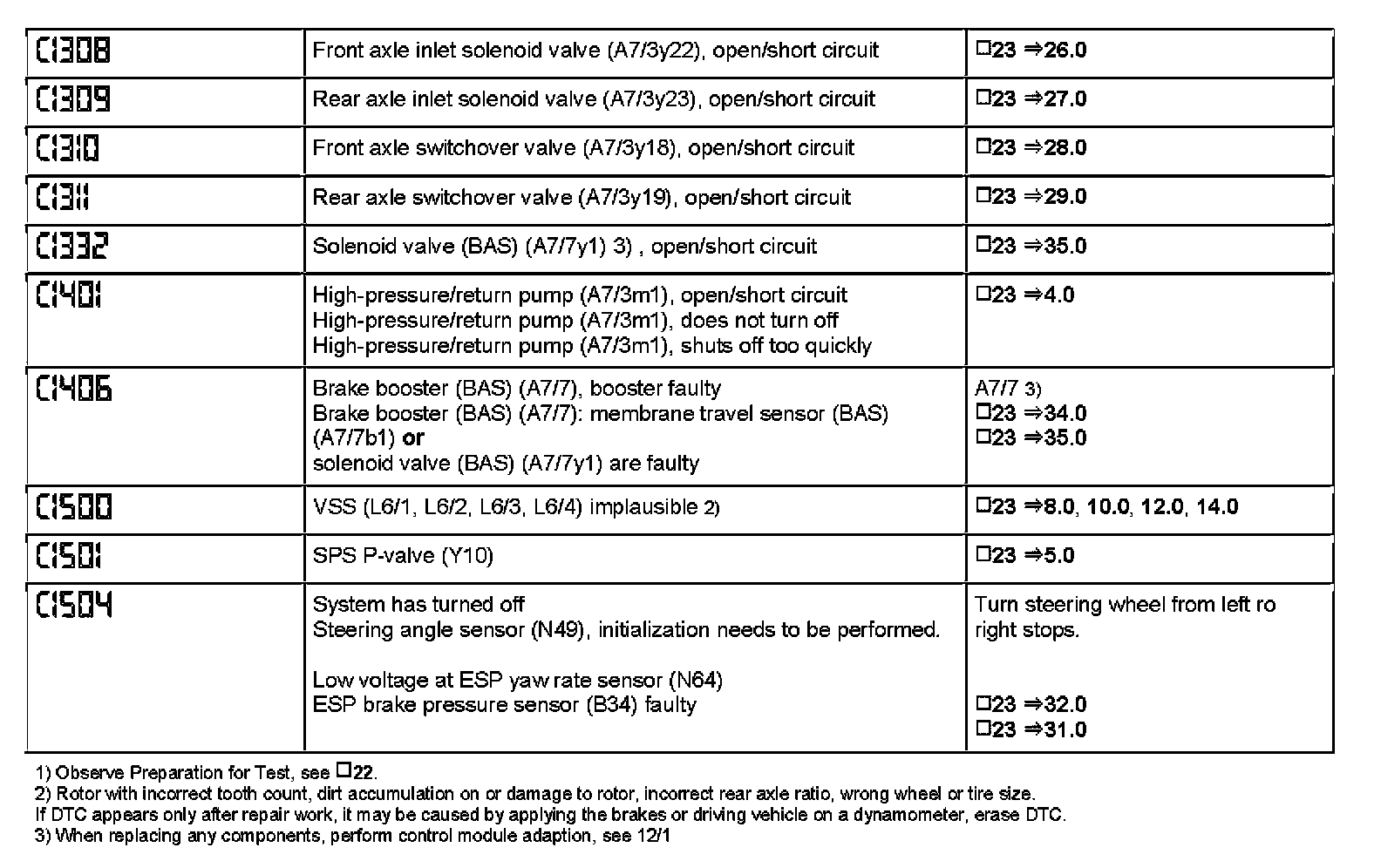

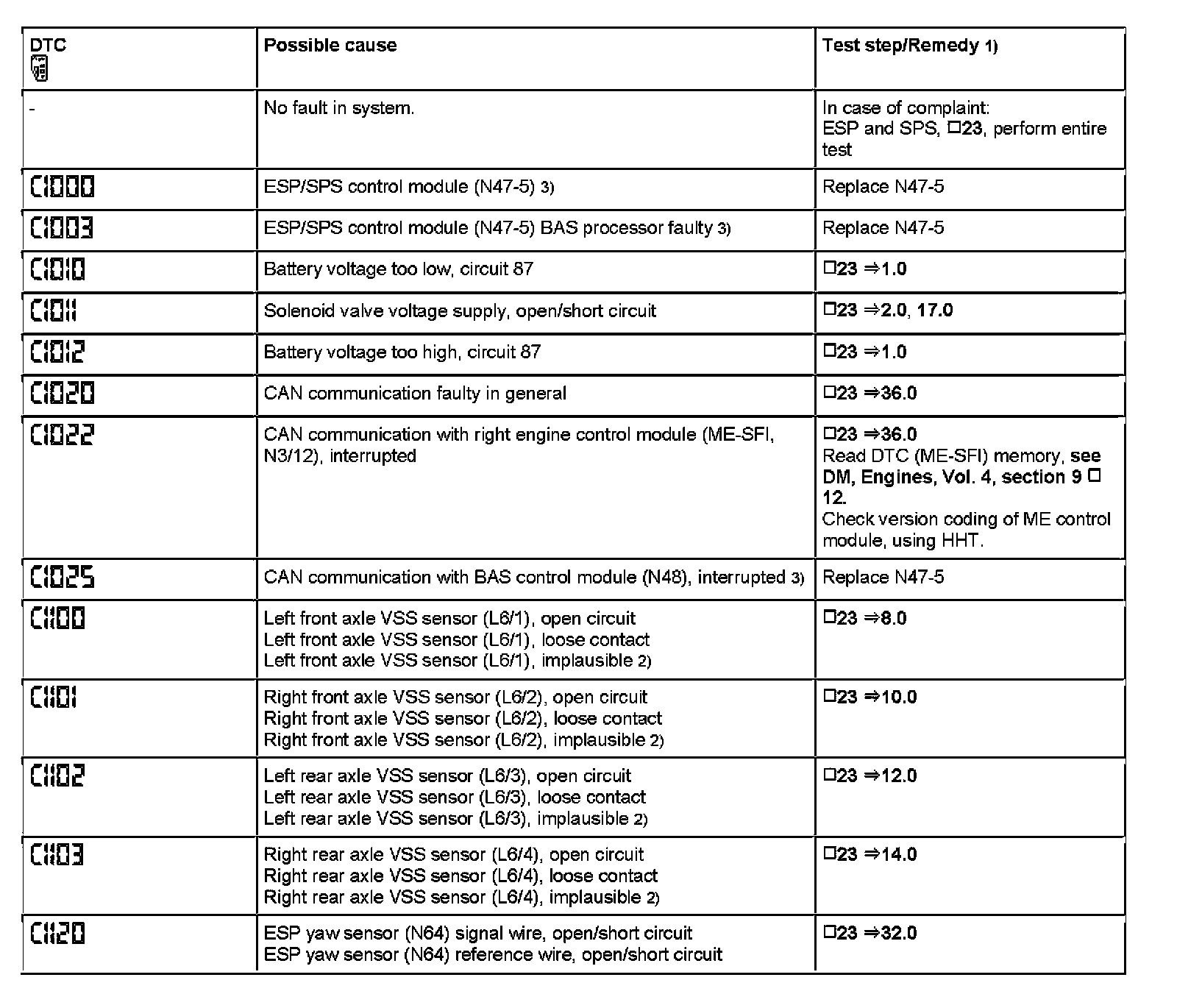

DTC s, Actual values, and activation for the BAS system are contained within the HHT menu: ESP
Control module adaption:
After replacing either the ESP/SPS control module (N47-5) or the brake booster (A7/7), it is absolutely necessary to perform an adaption of the ESP/SPS conmtrol module (N47-5) as well.
The ESP/SPS control module (N47-5) has to learn the values for the BAS solenoid valve (A7/7y1), see HHT menu.
In case of complaint, and no fault is present in system, perform 23 in its entirety.

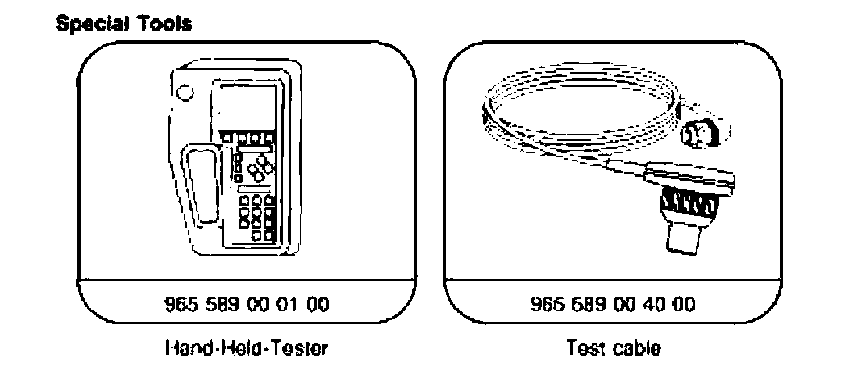

Special Tools:
