CLK 320 (208.365) V6-3.2L (112.940)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Electrical Seat Adjustment (ESA)
>>
Function Test, Recalling Actual Values With HHT - Section 13
>>
Electrical Test Program
>>

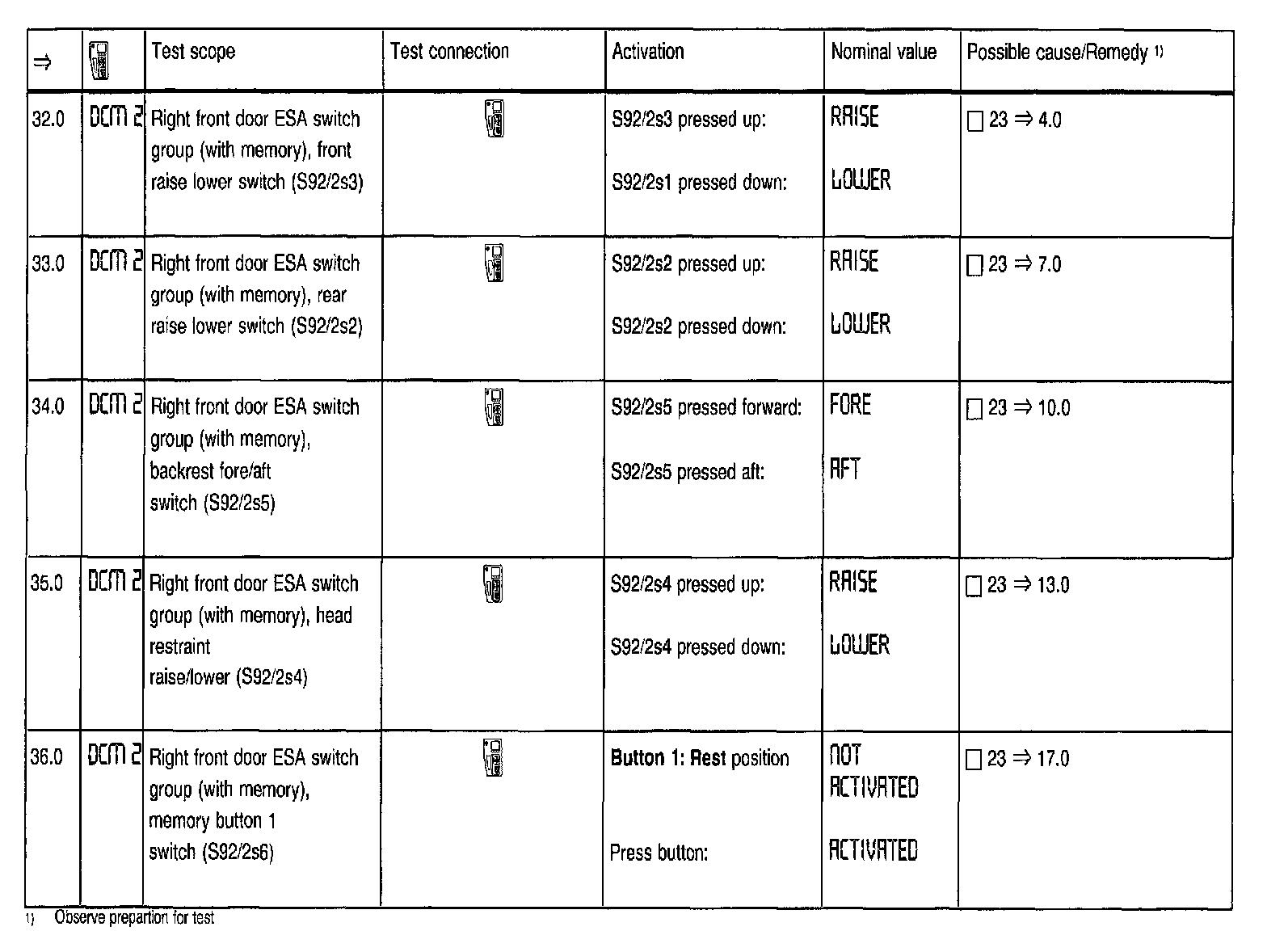

32.0 - 36.0
32.0 - 36.0
Steps 32.0 - 36.0:
