AR91.10-P-1000K Removing And Installing Front Seats

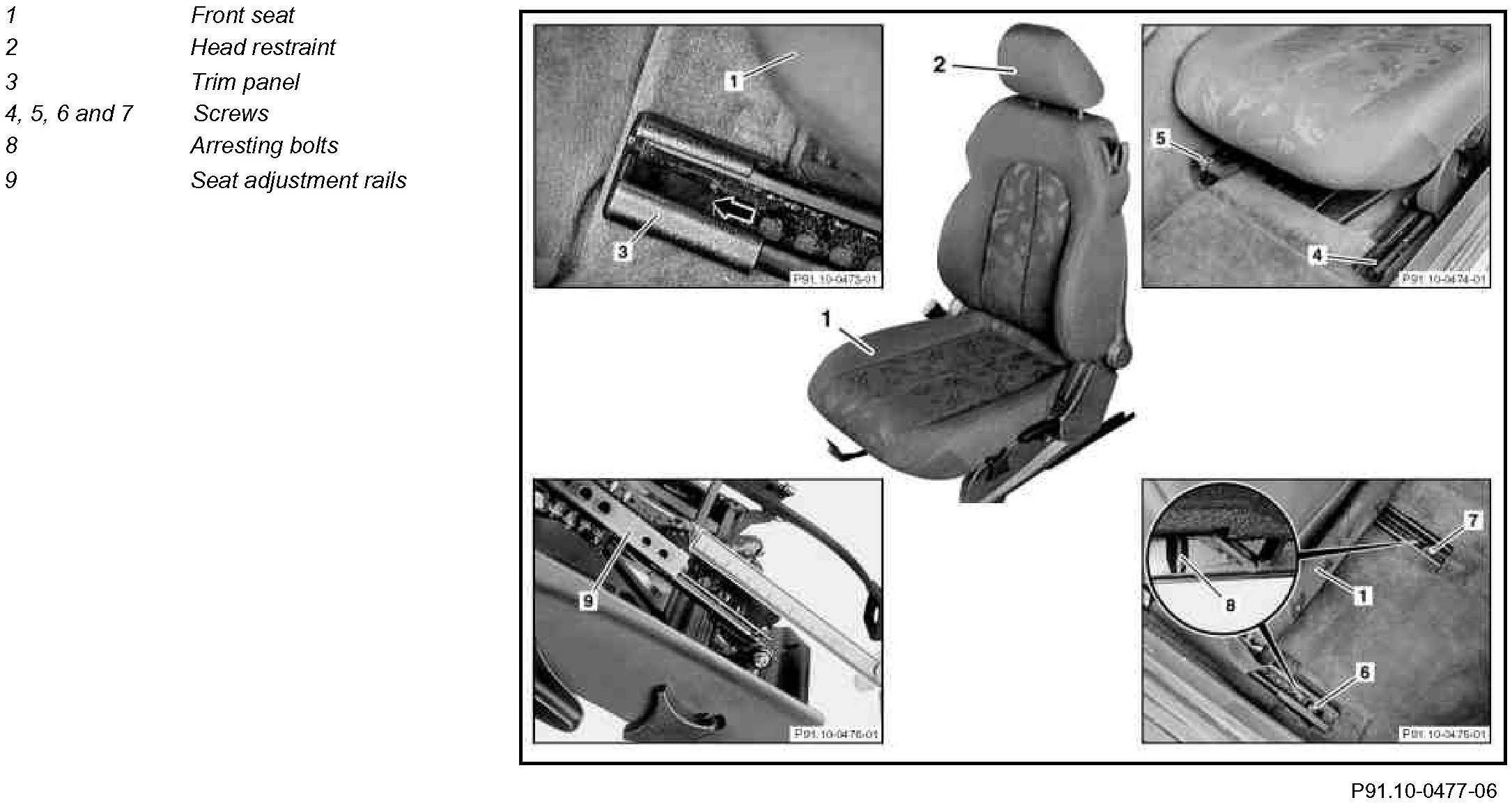

Component Identification:

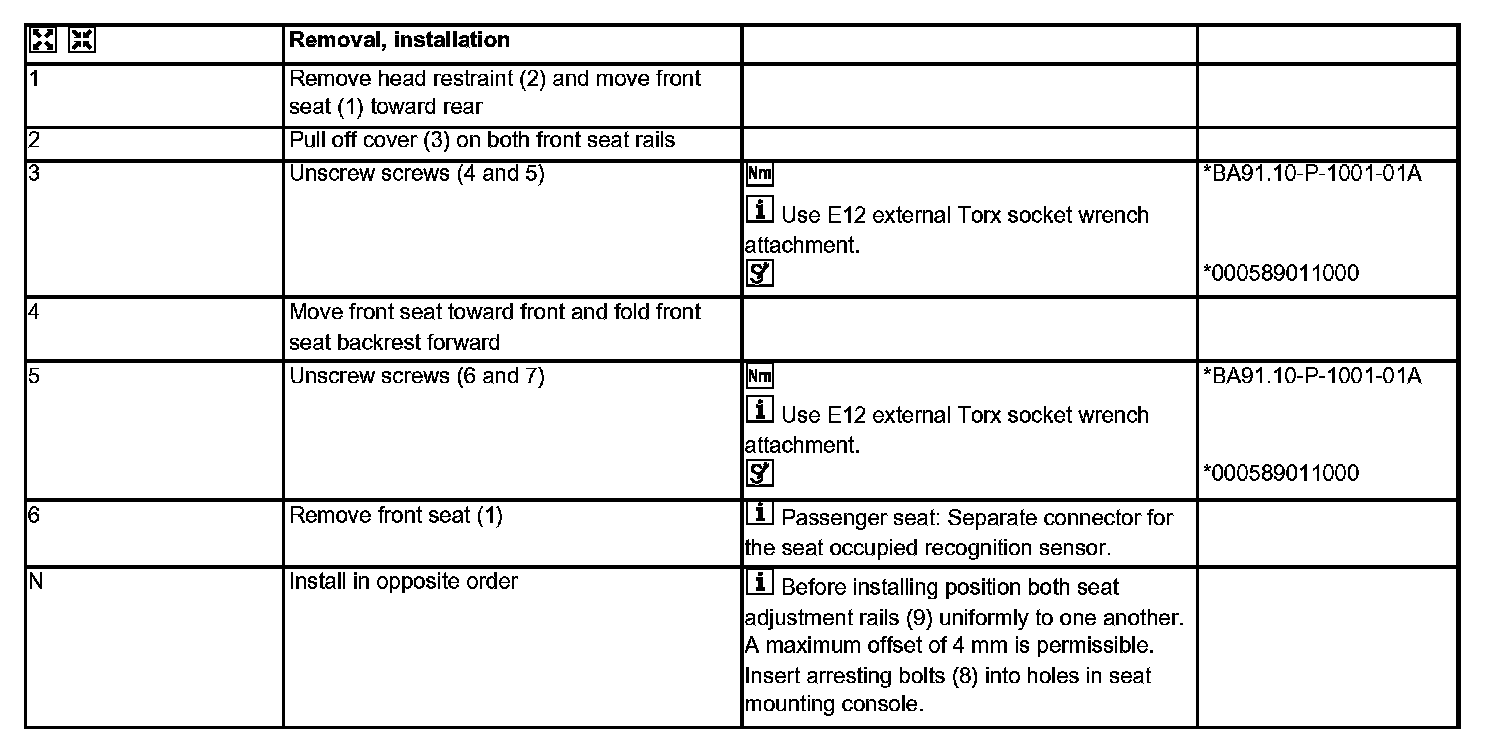

Steps 1 - 6:

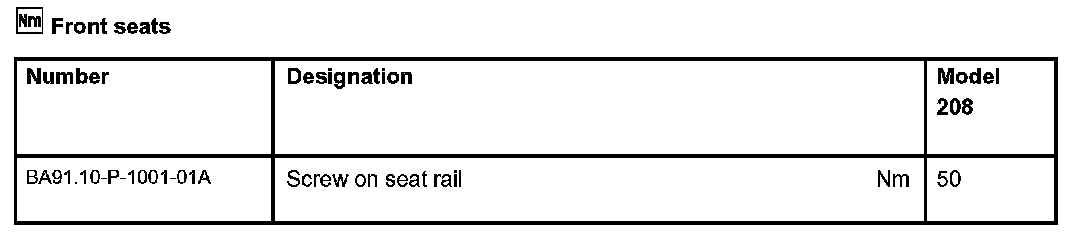

Front Seats:

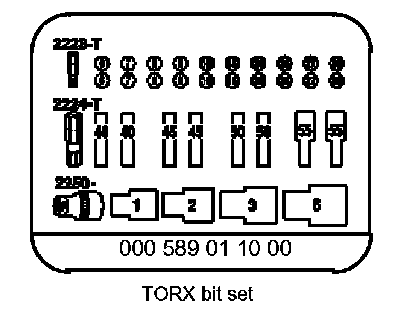

Special Tools:
