AR68.10-P-1505K Remove/Install Bottom Section of Instrument Panel on Driver's Side

AR68.10-P-1505K Remove/Install Bottom Section of Instrument Panel on Driver's Side

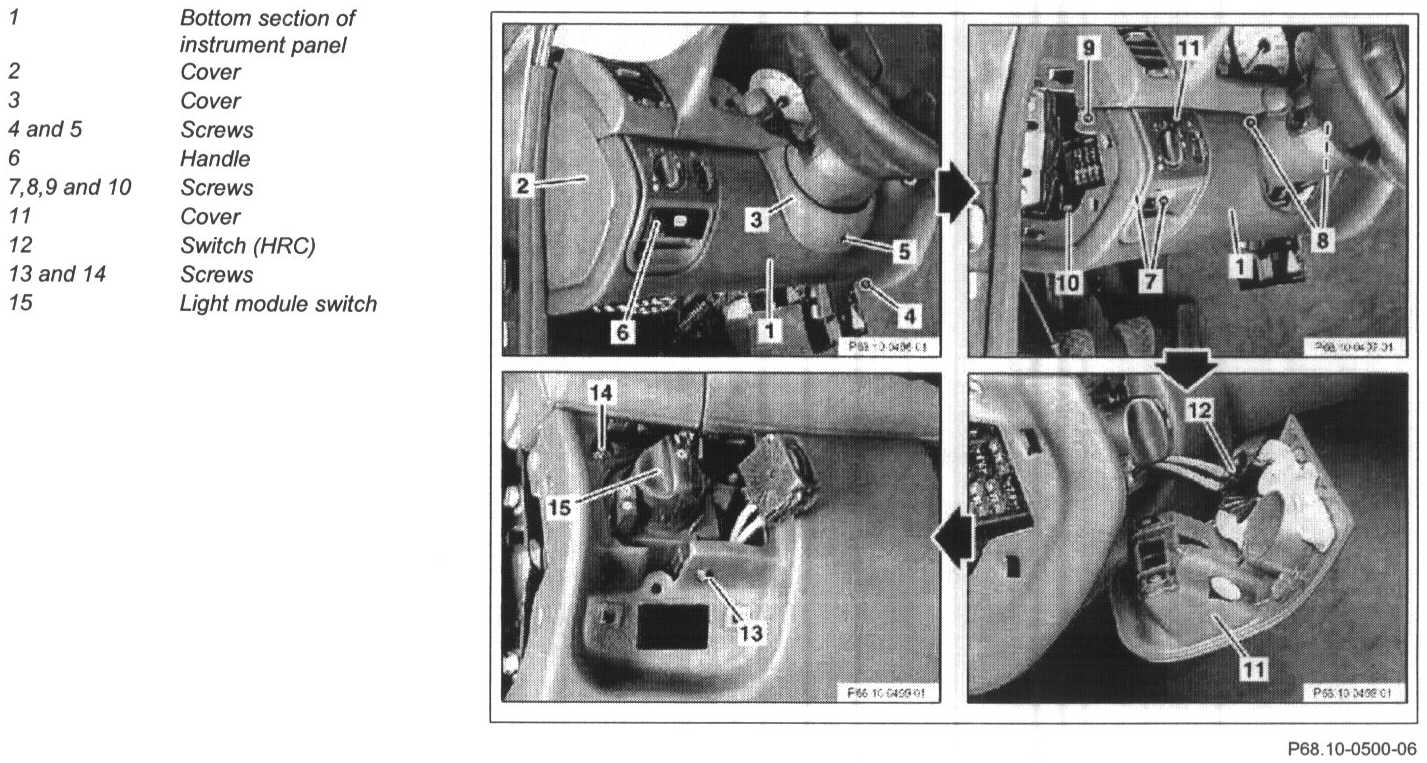

1 Remove cover below instrument panel (left)
2 Unclip cover (2) and remove Unscrew screws (4 and 5)

See "Special Tools - Long Wedge" given below.

4 Remove cover (3) downward
5 Unhook control cable from handle (6) and remove handle (6)
6 Unscrew screws (7) and remove housing (17) toward front
7 Unscrew screws (8, 9 and 10)
8 Unclip cover (11), unclip switch (12) and remove cover (11)

See "Special Tools - Long Wedge" given below.

9 Unscrew screws (13 and 14) and pull light module switch (15) out toward front

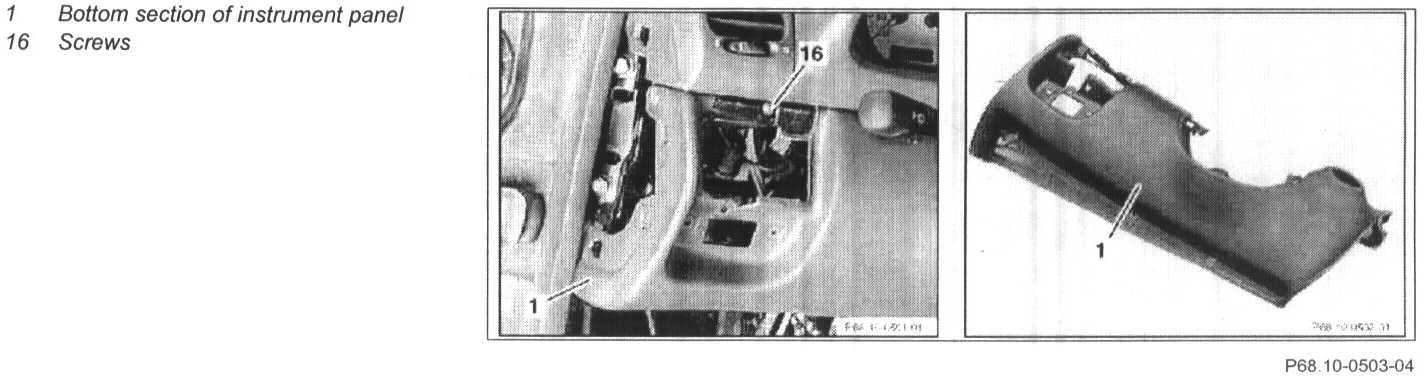

10 Unscrew screw (16) and remove bottom section of the instrument panel

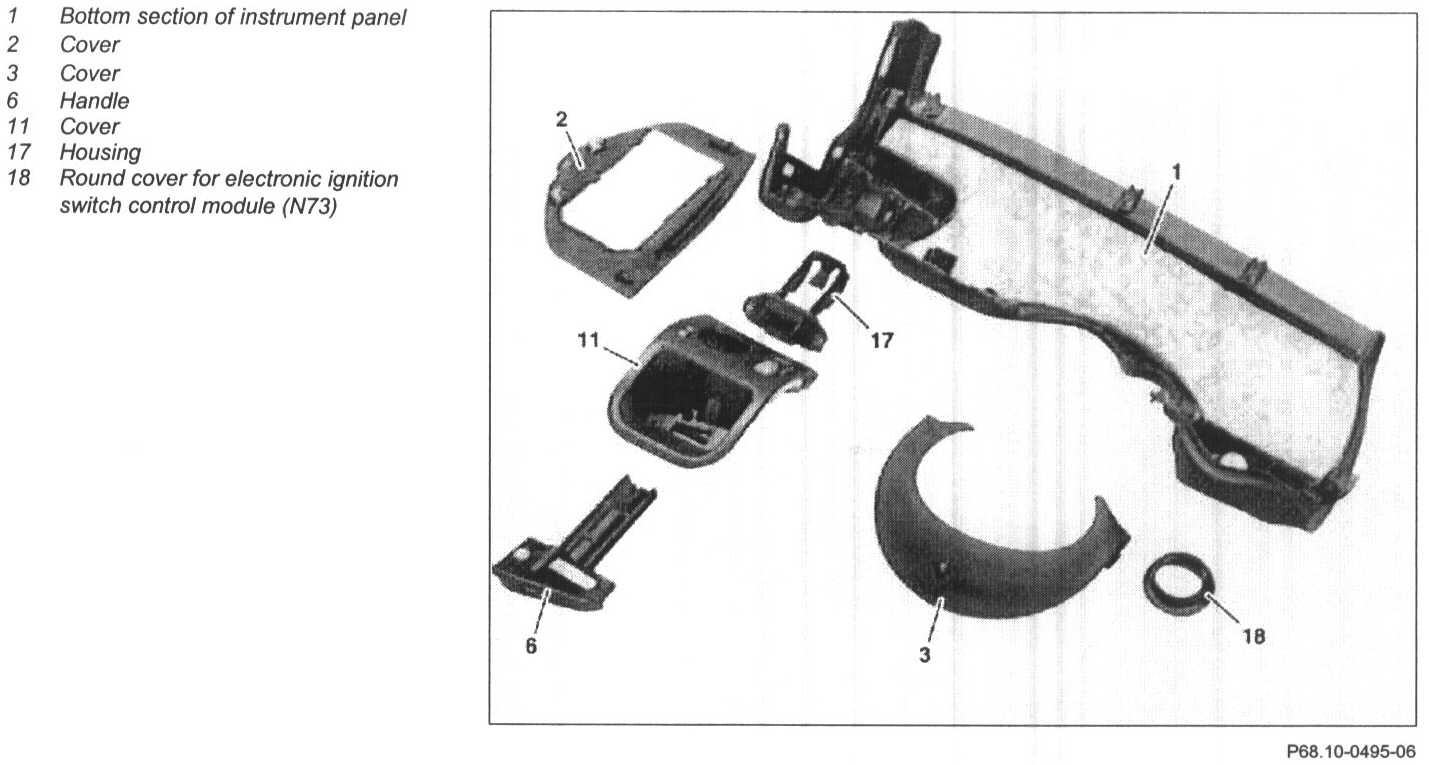

NOTE: To completely remove the bottom (1) downward section of the instrument panel (1) loosen electronic ignition switch control module (N73)

See "Special Tools - Slotted nut wrench for round cover plate on ignition switch" given below.

11 Reinstall in opposite order

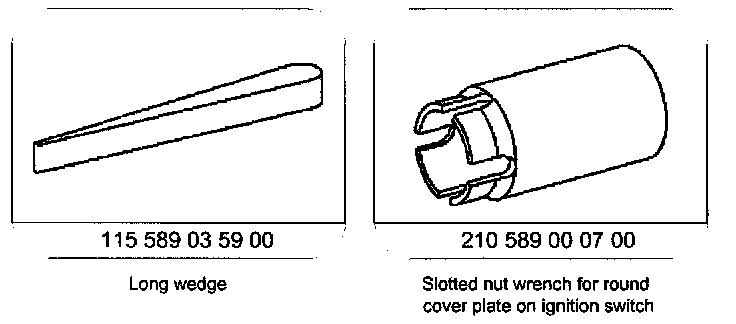

Special Tools

Special Tools:
