AR68.10-P-1500K Remove/Install Cover Below Instrument Panel (Left)

AR68.10-P-1500K Remove/Install Cover Below Instrument Panel (Left)

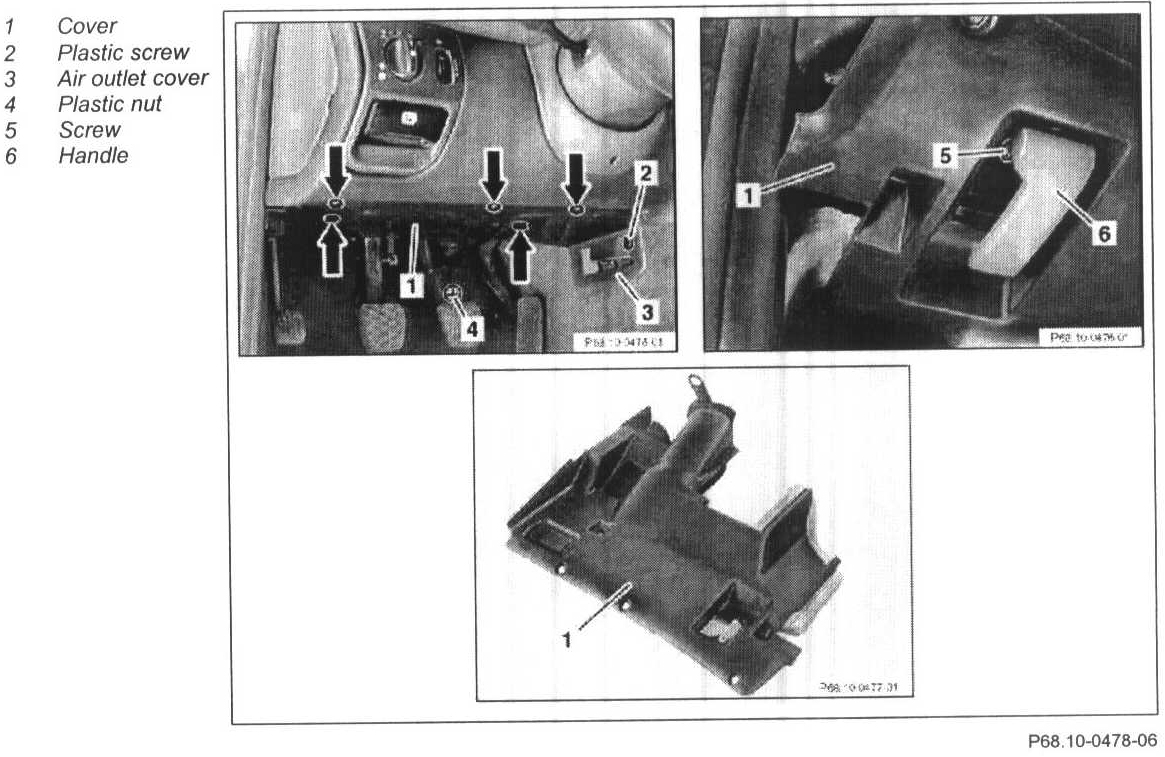

1 Turn plastic screw (2) 90 degrees and remove air outlet cover (3)
2 Unscrew screws (arrows) and plastic nut (4)

See "Special Tools" given below.

3 Pull cover (1) back and unscrew screw (5)
Unhook handle (6) from cover (1) and guide through
5 Remove cover (1)
6 Reinstall in opposite order


Special Tools

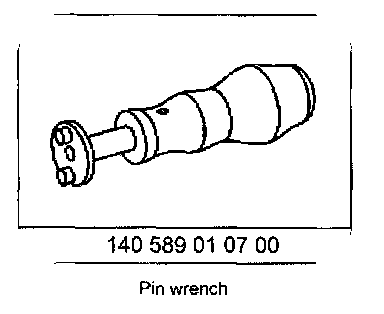

Pin Wrench, P/N # 140 589 01 07 00:
