Home >> Mercedes Benz >> 2000 >> CLK 320 (208.365) V6-3.2L (112.940) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Infrared Remote Central Locking System (RCL) >> Diagnosis >> Electrical Test Program >> Test >> 1.0 - 3.0

1.0 - 3.0

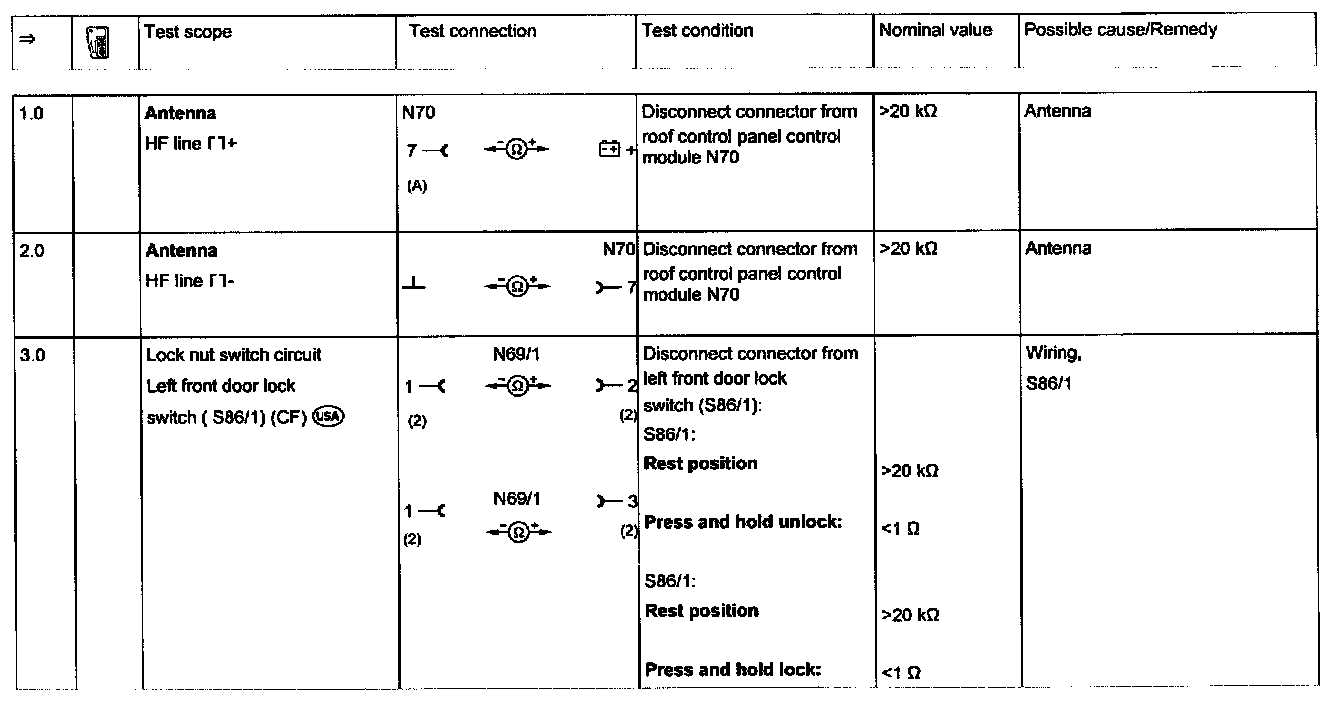

Test Steps 1.0 - 3.0:
