TV Mode, Function (With Code [860] TV Tuner)

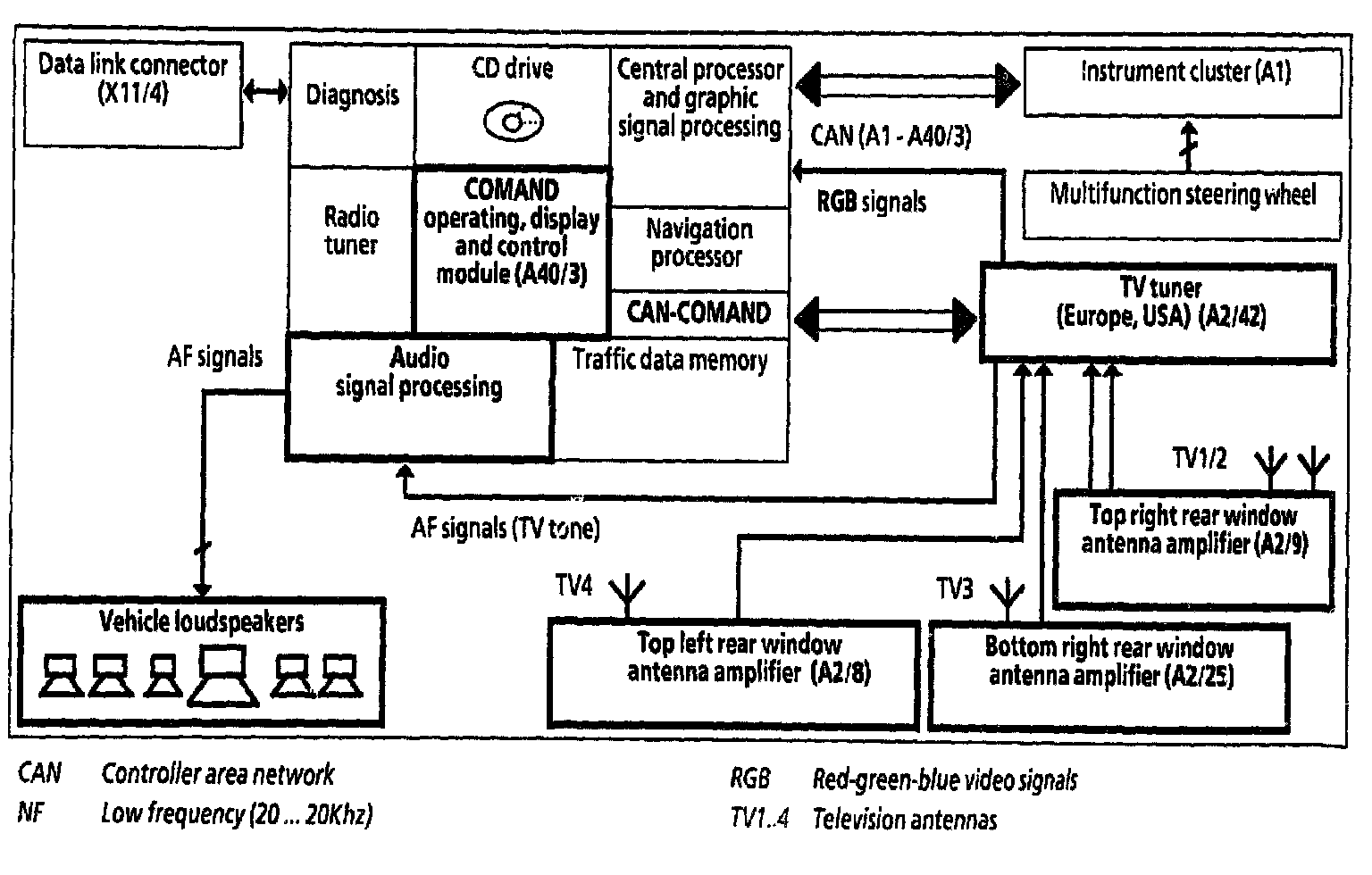

Block diagram of COMAND TV system

The marked elements are the components which are essentially used for TV mode.


NOTE: The COMAND TV system (optional) is presently still in preparation (status 3/99).
