Location/Purpose/Design

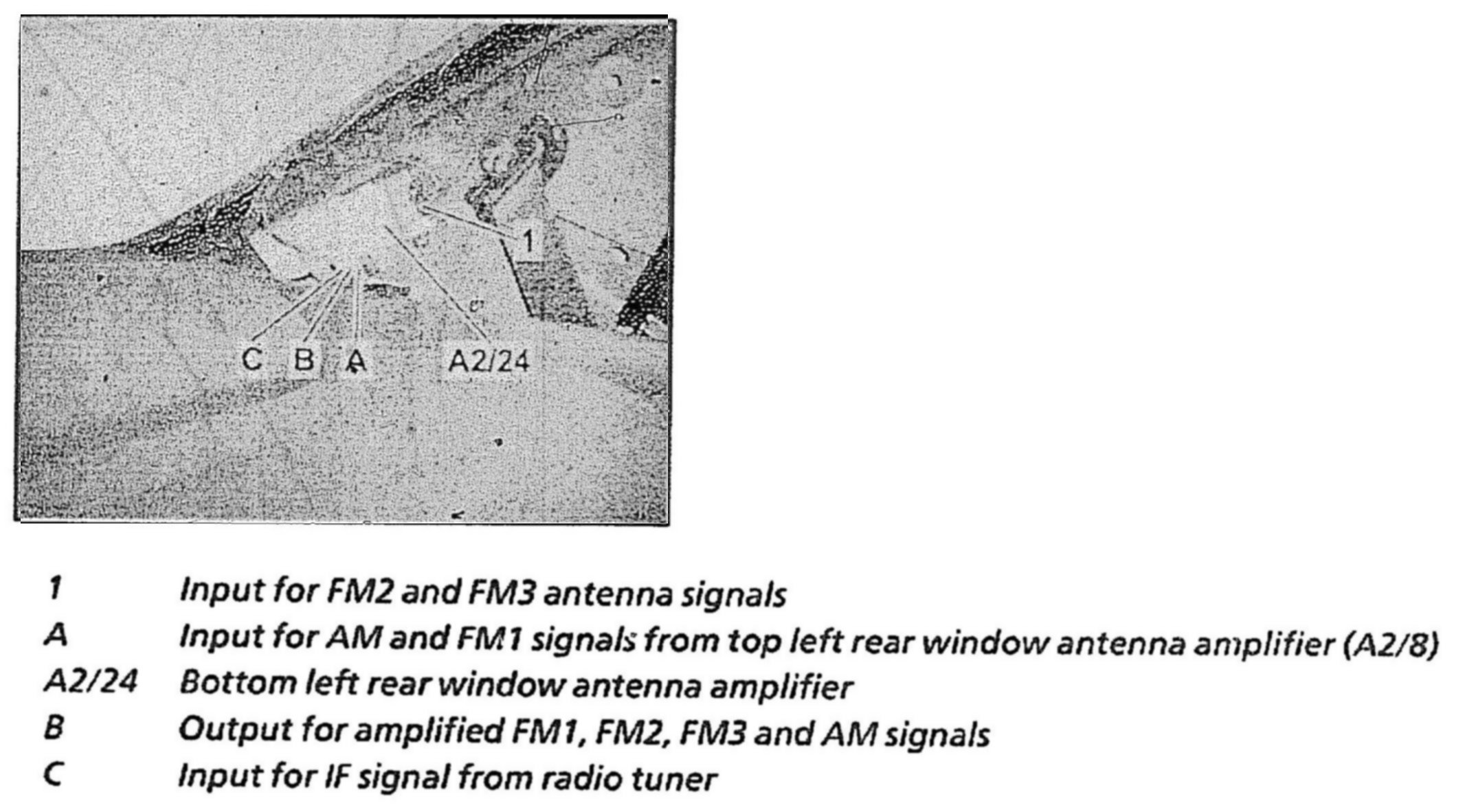

Illustrated on model 208

Audio/TV antenna amplifier

Location
Under panelling on left C-pillar

Purpose
Amplifying and filtering signals of the following antennas:
- AM, FM1, FM2, FM3.
Power supply of further antenna amplifiers:
A2/8, A2/9 (optional) and A2/25 (optional)

Design
Inputs:
- AM, FM1, FM2, FM3, IF signals, power supply and switching signal for activation of A2/24 amplifier.
Outputs:
- AM/FM signals, power supply
- Integrated processor for FM diversity feature.
