Front Door Window Glass Weatherstrip: Service and Repair
AR72.10-P-1600E Remove/Install Inner Sealing Rail
Component Identification:

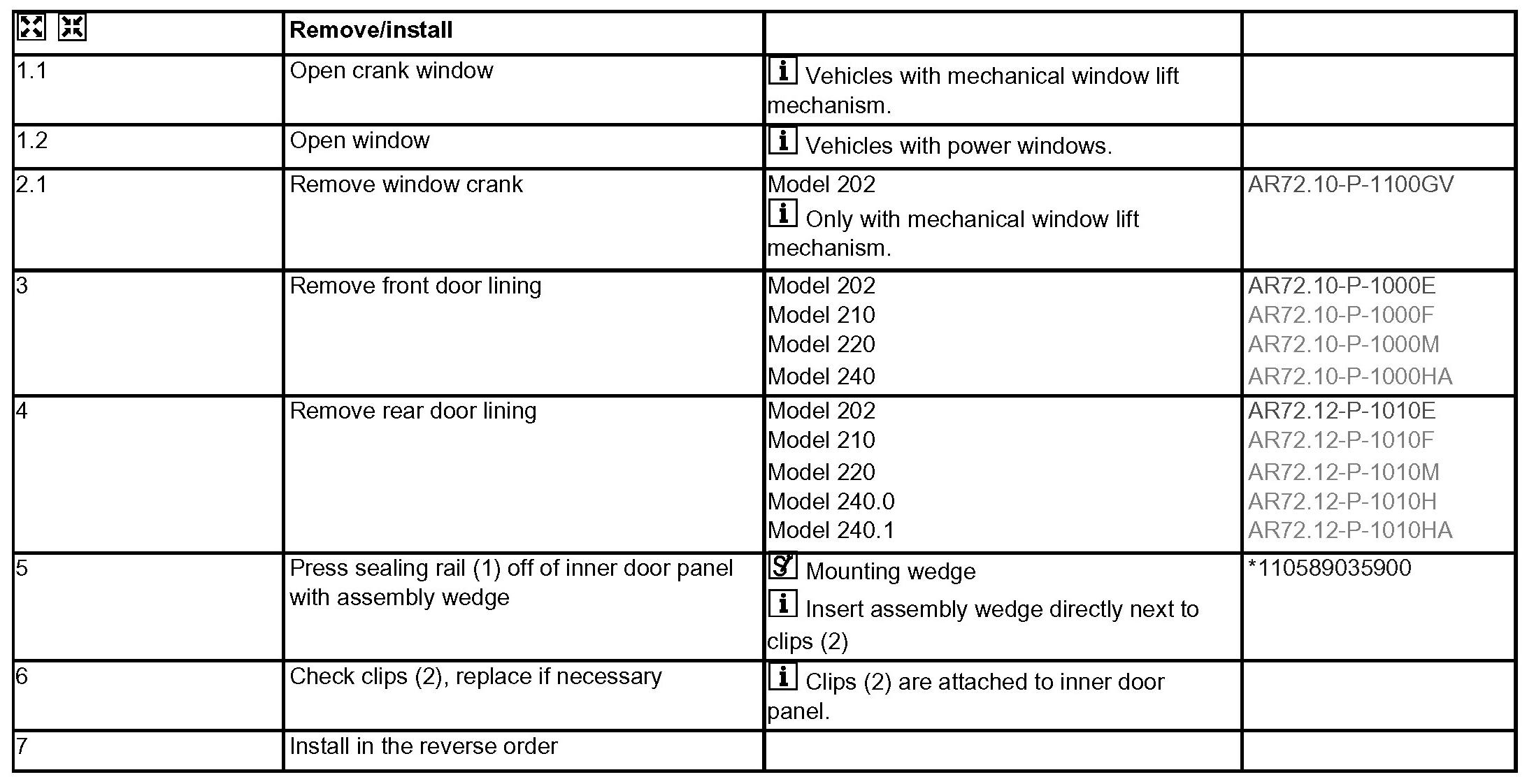

Steps 1.1 - 7:

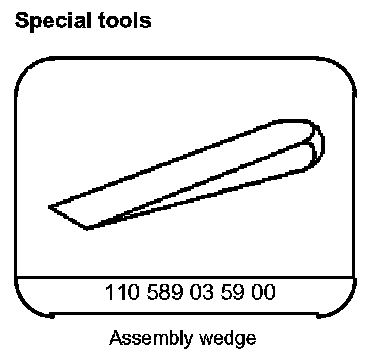

Special Tools:
