AR67.20-P-2000E Remove/Install Rear Window



AR67.20-P-2000E Remove/Install Rear Window

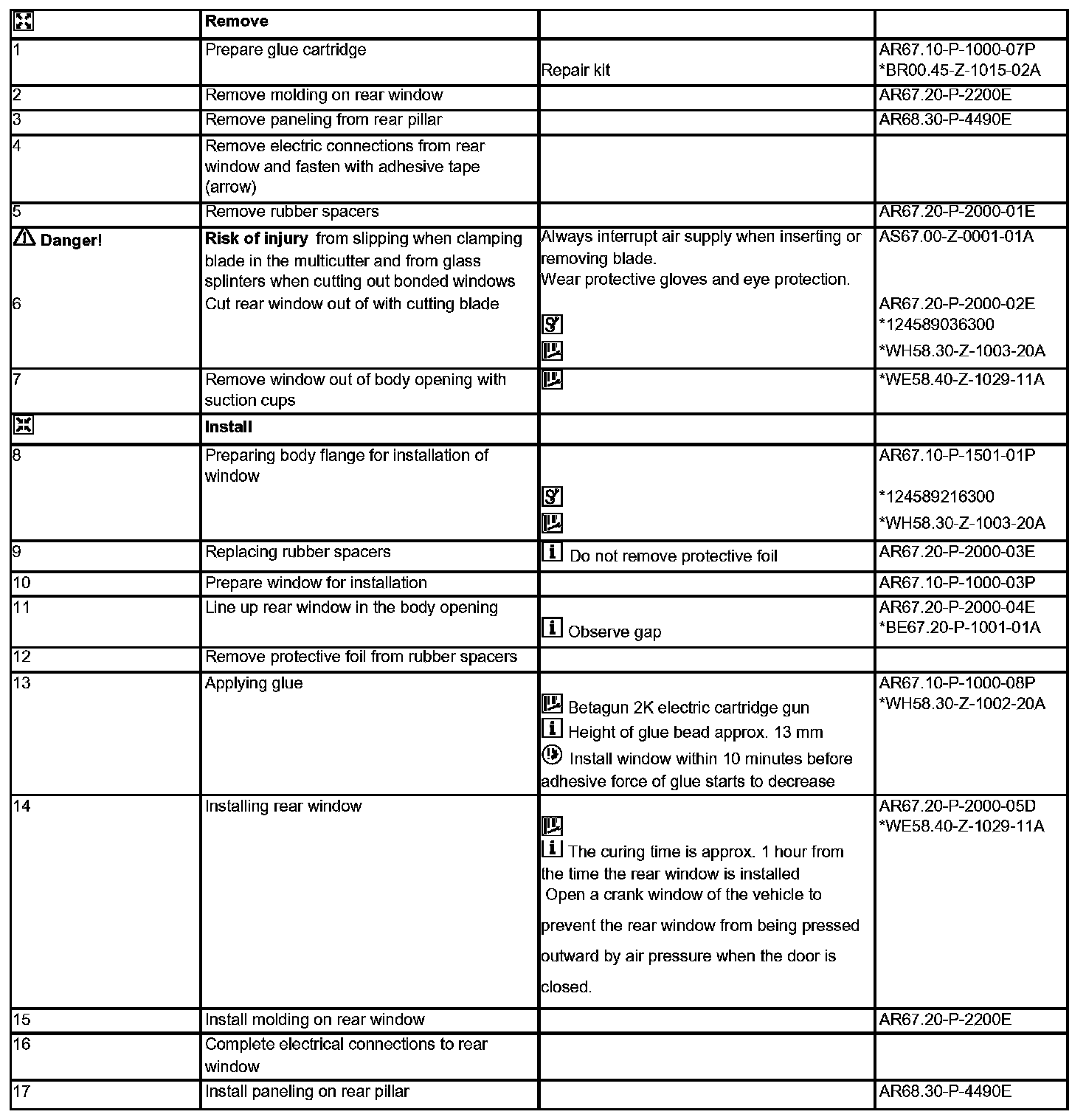

Steps 1 - 17:

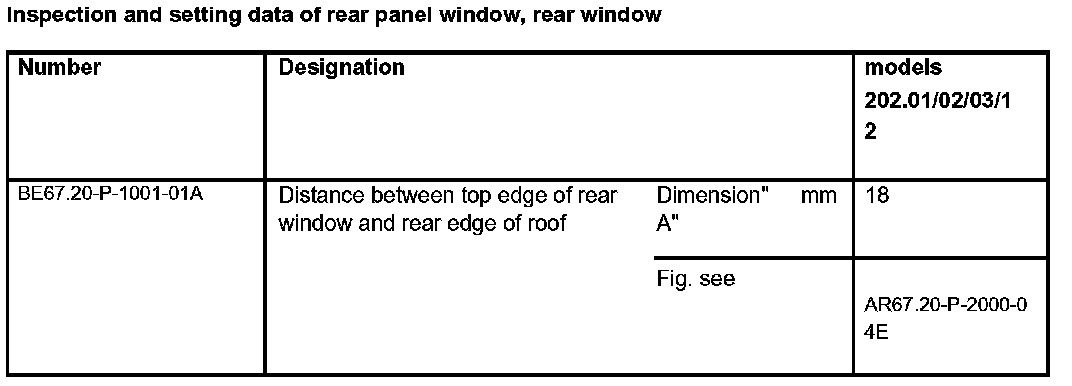

Inspection And Setting Data Of Rear Panel Window, Rear Window:

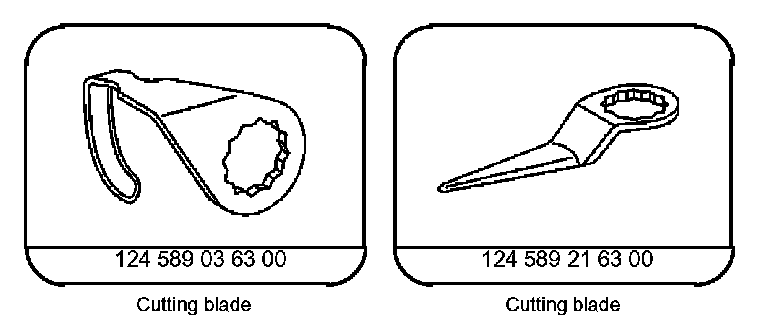

Special Tools:

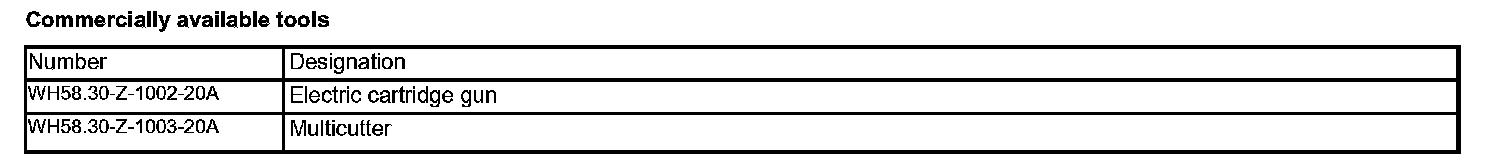

Commercially Available Tools:

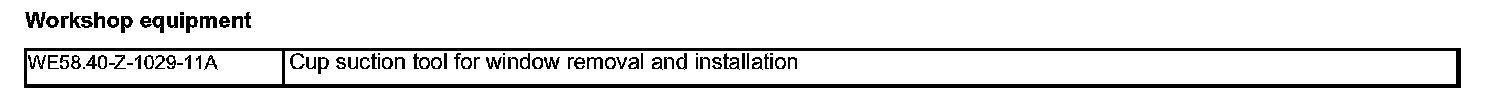

Workshop Equipment:

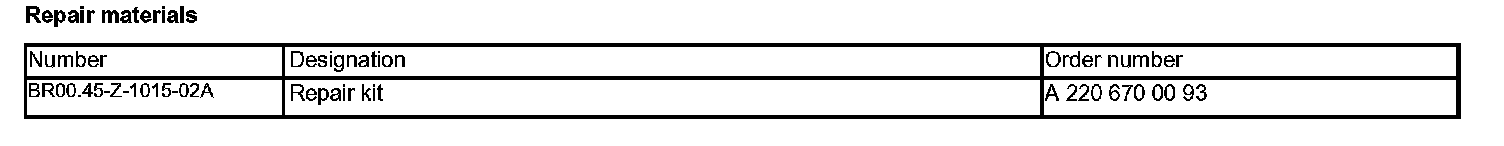

Repair Materials:
