Removing and Installing Cable/Transmission For Parking Lock

Removing and installing wire cable/transmission for parking lock interlock on transmission

Note: For removal and installation, shift selector lever or range selector lever into position "P" and, with wire cable/transmission removed, leave in position "P".

Removal

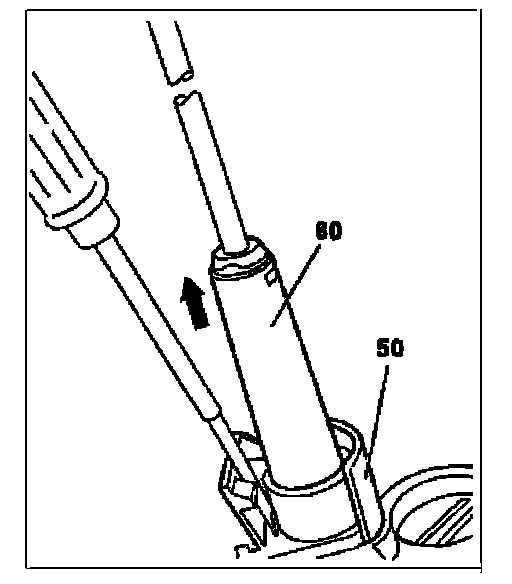

1 Unsing suitable tool, slacken locking device on linkage for parking lock interlock (50) and pull off wire cable/transmission (80) in direction of arrow.


Installation


2 Mount wire cable/transmission (80).

Note: After installation, check function of parking shift lock.
