Function of Manual Driving Program Selection

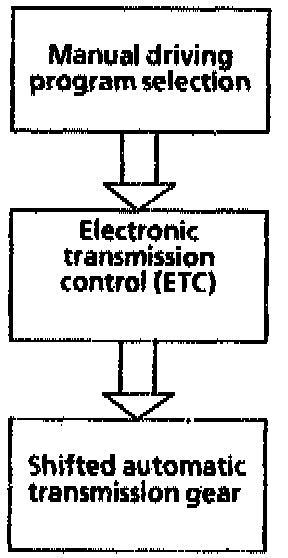

FUNCTION
- With the selector lever and program selector lever of the floor shift is it possible to adapt the automatic sequence of the shift to particular operating conditions.

- The selector lever position can be changed while driving in the forward gears but the Electronic Transmission Control (ETC) module prevents an unacceptably high engine speed.

- In position "W" (winter mode) of the program selector switch a lower overall gear ratio is available and therefore a lower output torque when driving forwards and reversing. this makes it possible to start off more gently.

Also Refer To:
- Electronic Transmission Control. Function of Electronic Transmission Control
- Selector Lever Positions. Summary of Selector Lever Positions
- Function Of Floor Selector. Floor Selector
