GF27.10-P-3020GB Function of Locking of Selector Lever Position "P"

GF27.10-P-3020GB Function of locking of selector lever position "P"
- TRANSMISSION 722.6 in MODELS 163, 170, 202, 208, 210
- with touch shift

Parking lock, location / task / design / function:

Operation
One of the functions of the shift lock is to lock the selector lever in position "P". The selector lever is locked electronically.

The selector lever remains disabled in position "P", if the brake is not operated or there is no power supply to the electronic selector lever module control module (N15/5) (circuit 87).

The electronic selector lever module control module (N1 5/5) actuates the R/P lock solenoid valve (89) from the ignition key position Ignition "ON" when the brake pedal is depressed and therefore when the brake lamp switch (S9/1) is actuated and when selector lever position "P" is recognized.

The R/P locking magnet (89) releases the selector lever thus allowing the selector lever to be moved away from position "P".

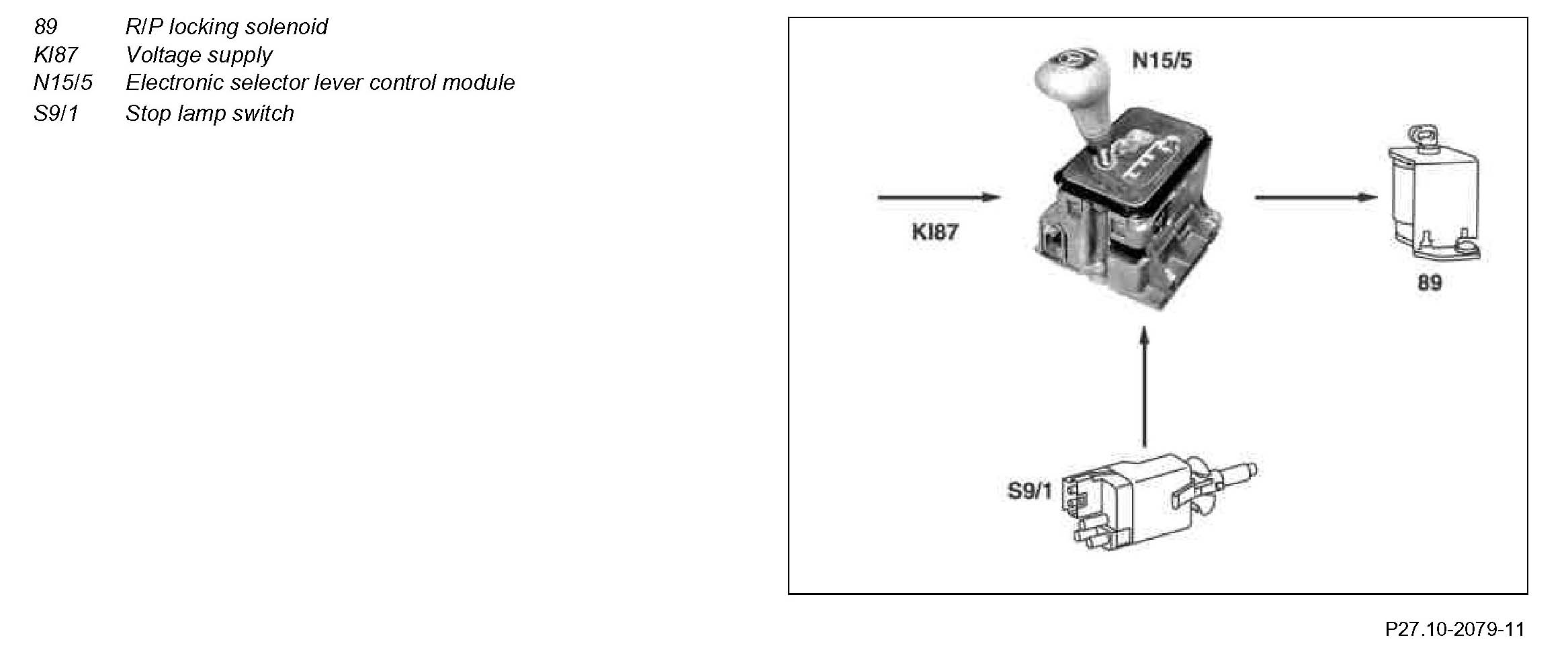

Component Identification:
