Disposing of Spring Strut

Disposing of Spring Strut






WARNING: Wear safety glasses and face mask

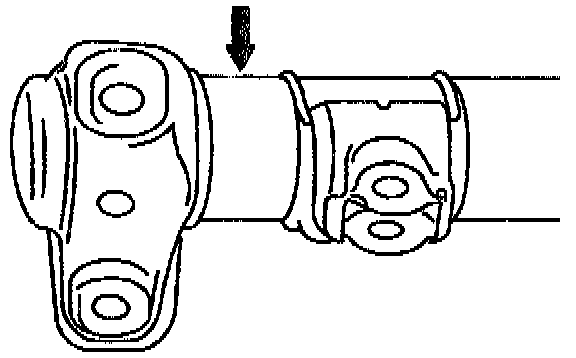

1. Drill damper strut in the area of the arrow with a 0.5 mm drill
2. Pump the damper strut empty by pressing the piston rod in several times
- The quantity of oil is 25-500 cm3 depending on the version
- Comply with regulations governing disposal of hydraulic oil
3. Dispose of damper strut (old part)
