Fuse and Relay Box Locations

F1 - Fuse and Relay Box (In Engine Compartment)

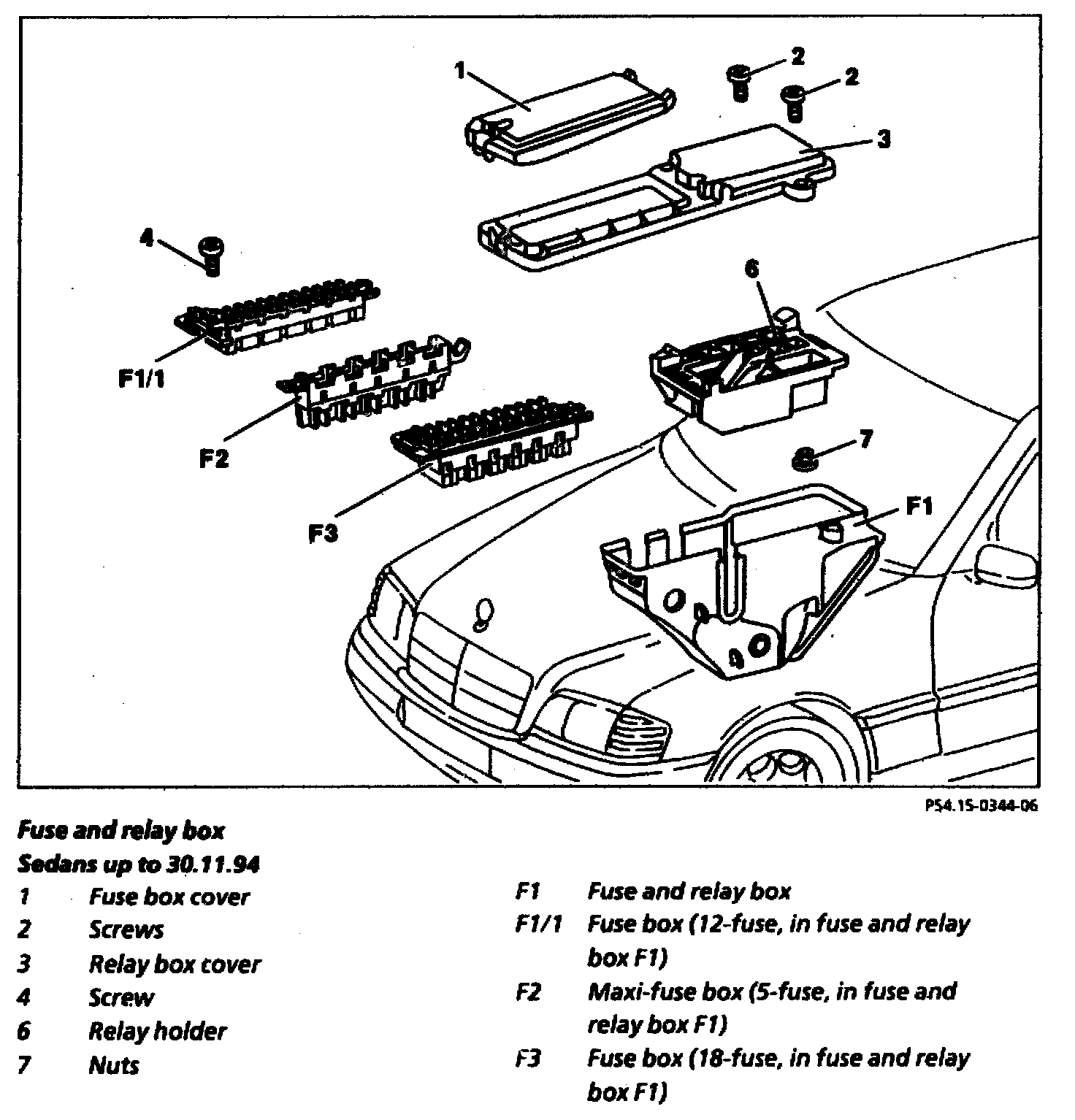

Model 202: Up to 11/30/94

Fuse And Relay Box:

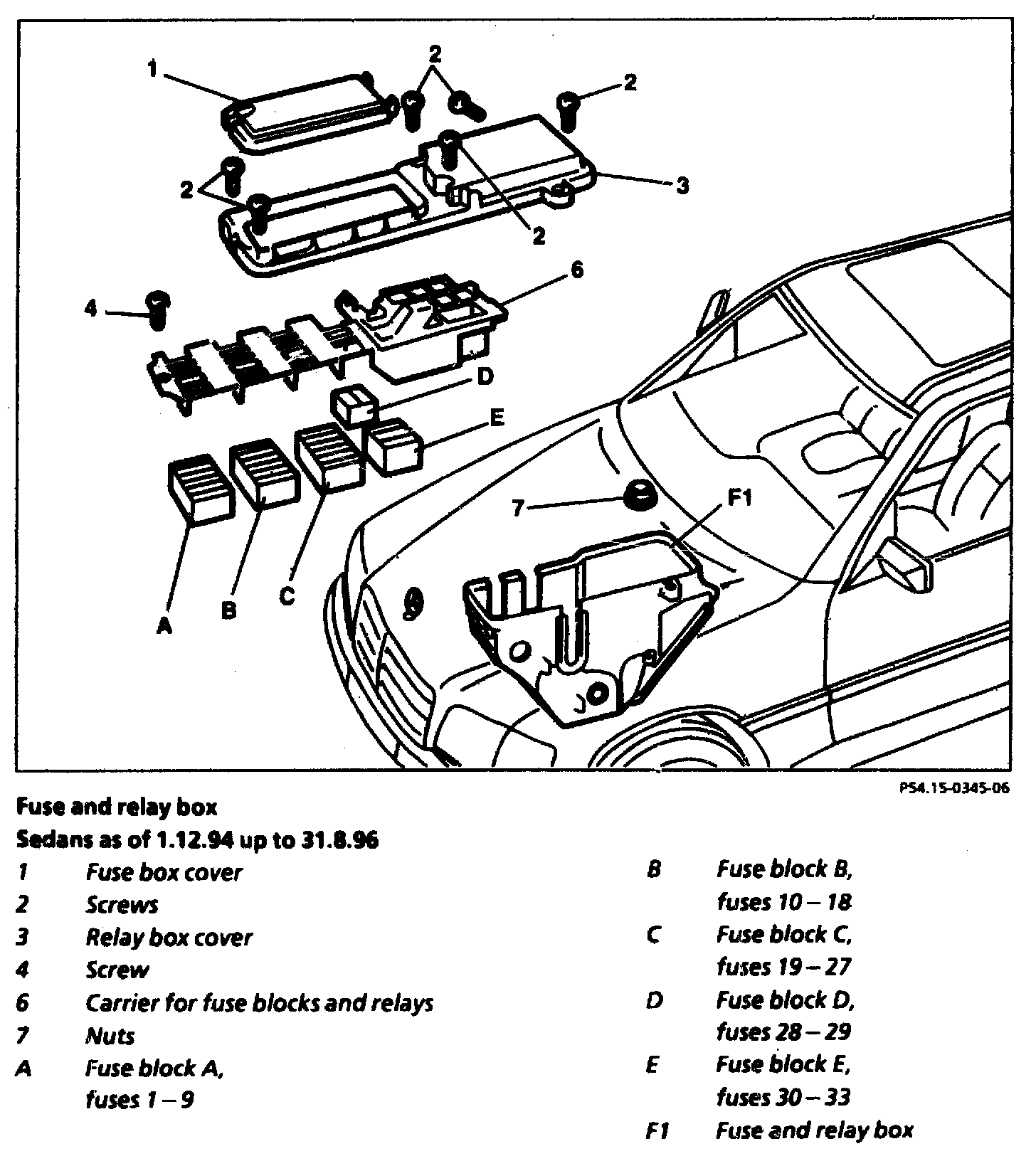

Model 202: As of 12/1/94 up to 8/31/96

Fuse And Relay Box:

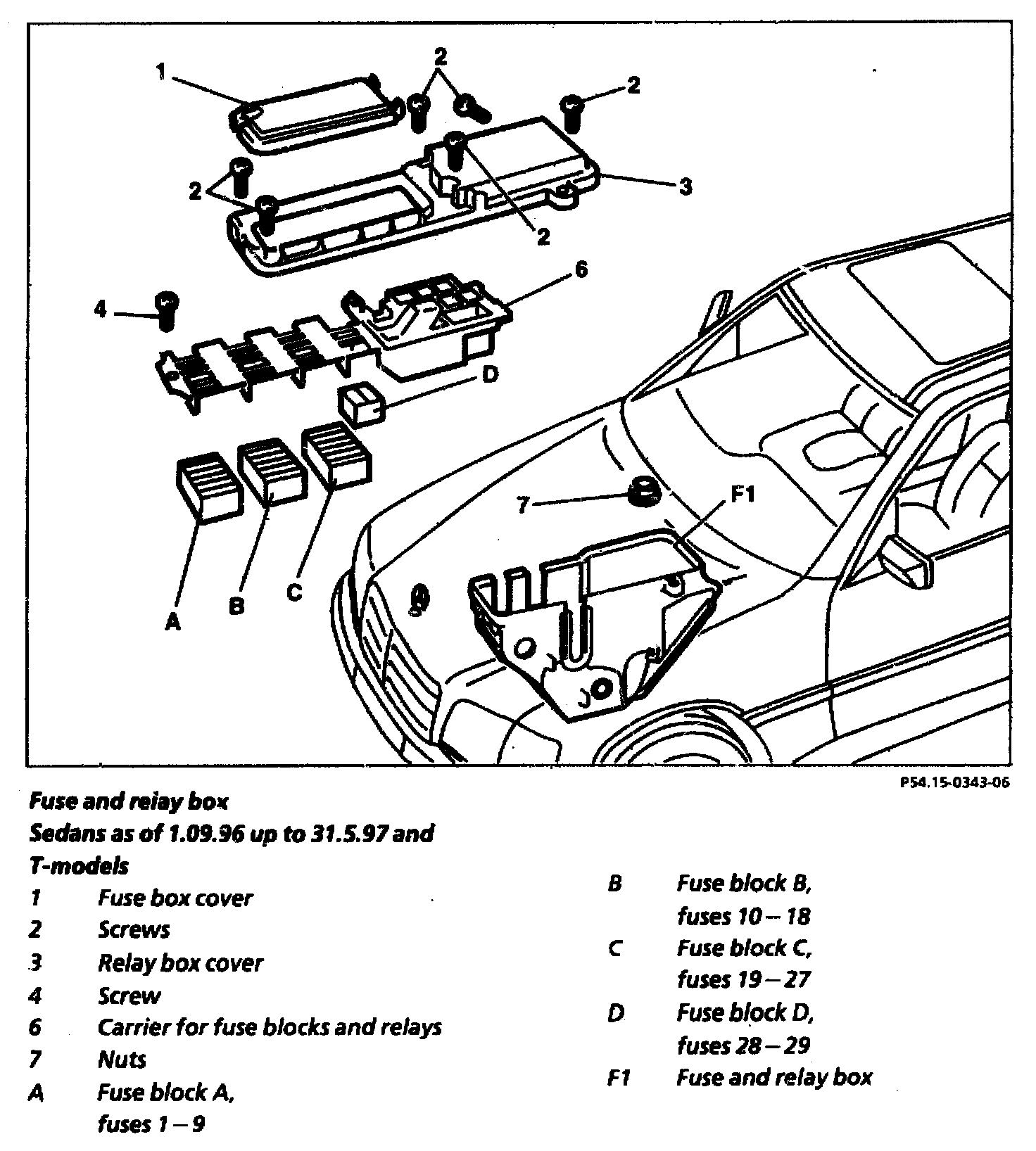

Model 202: As of 9/1/96 up to 5/31/97

Fuse And Relay Box:

Model 202: As of MY 1998

Illustrated On Model 208:

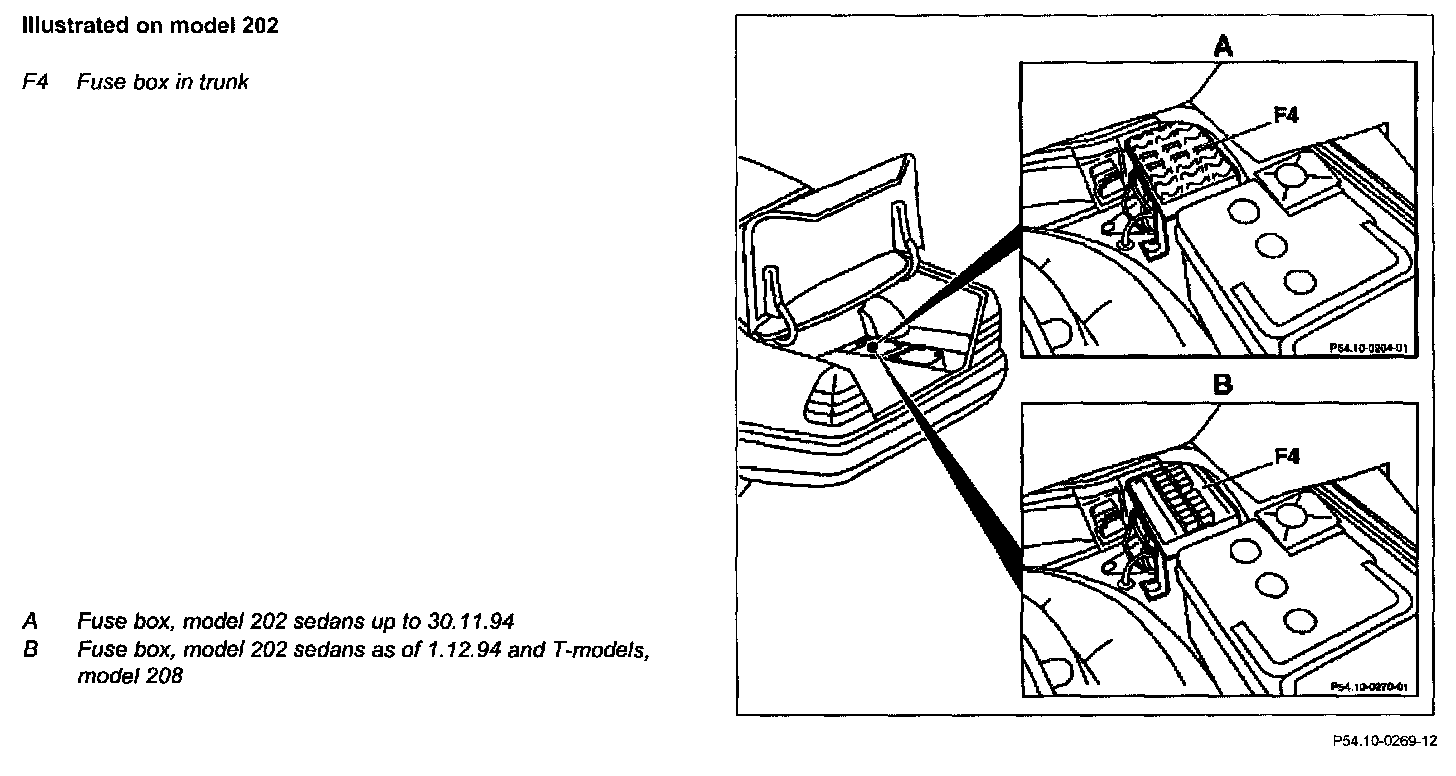

F4 - Fuse Box (In Trunk)

Illustrated On Model 202:
