AR01.10-P-4200B Remove/Install Generator Bracket

Removing And Installing Generator Bracket

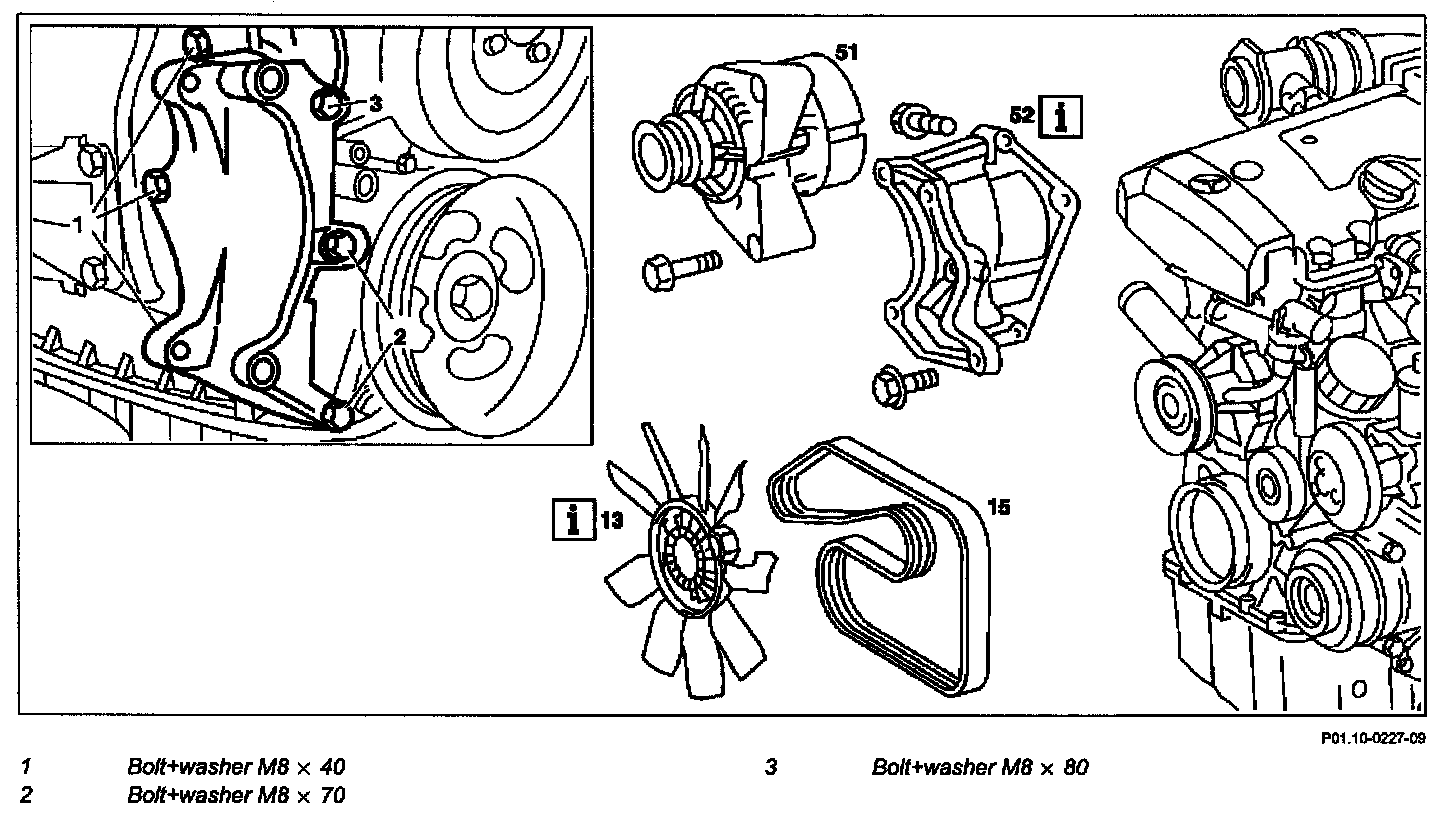

Fig. item, etc. Work Instructions
13 Remove viscous fan coupling

NOTE: Left-hand thread.

51 Remove generator
52 Generator carrier

NOTE: Installation: Tighten side bolts (1) initially to 3 Nm (reference value).

- Tighten bolts (2) and (3) and finally tighten bolts (1).
