System Specifications

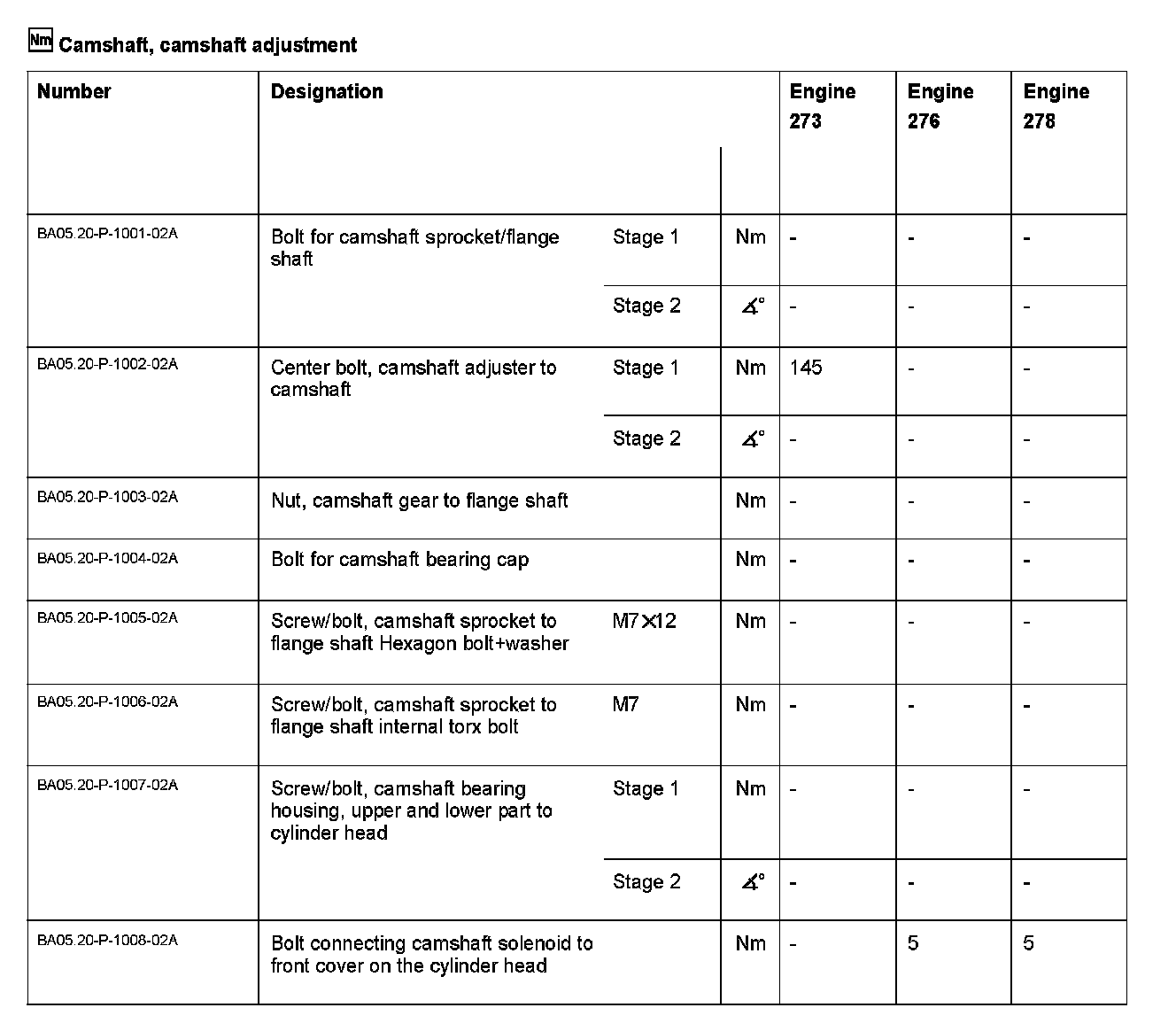

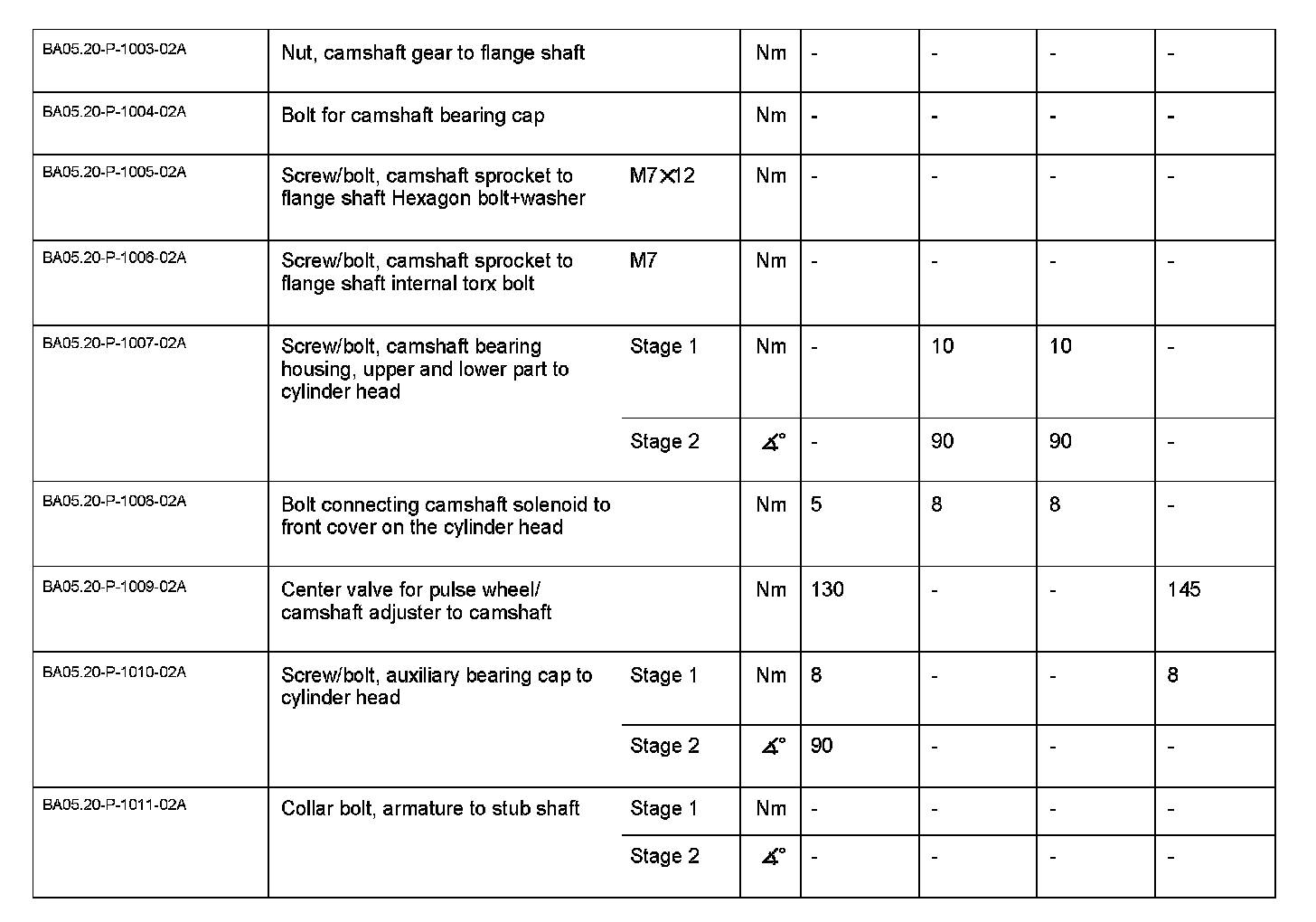

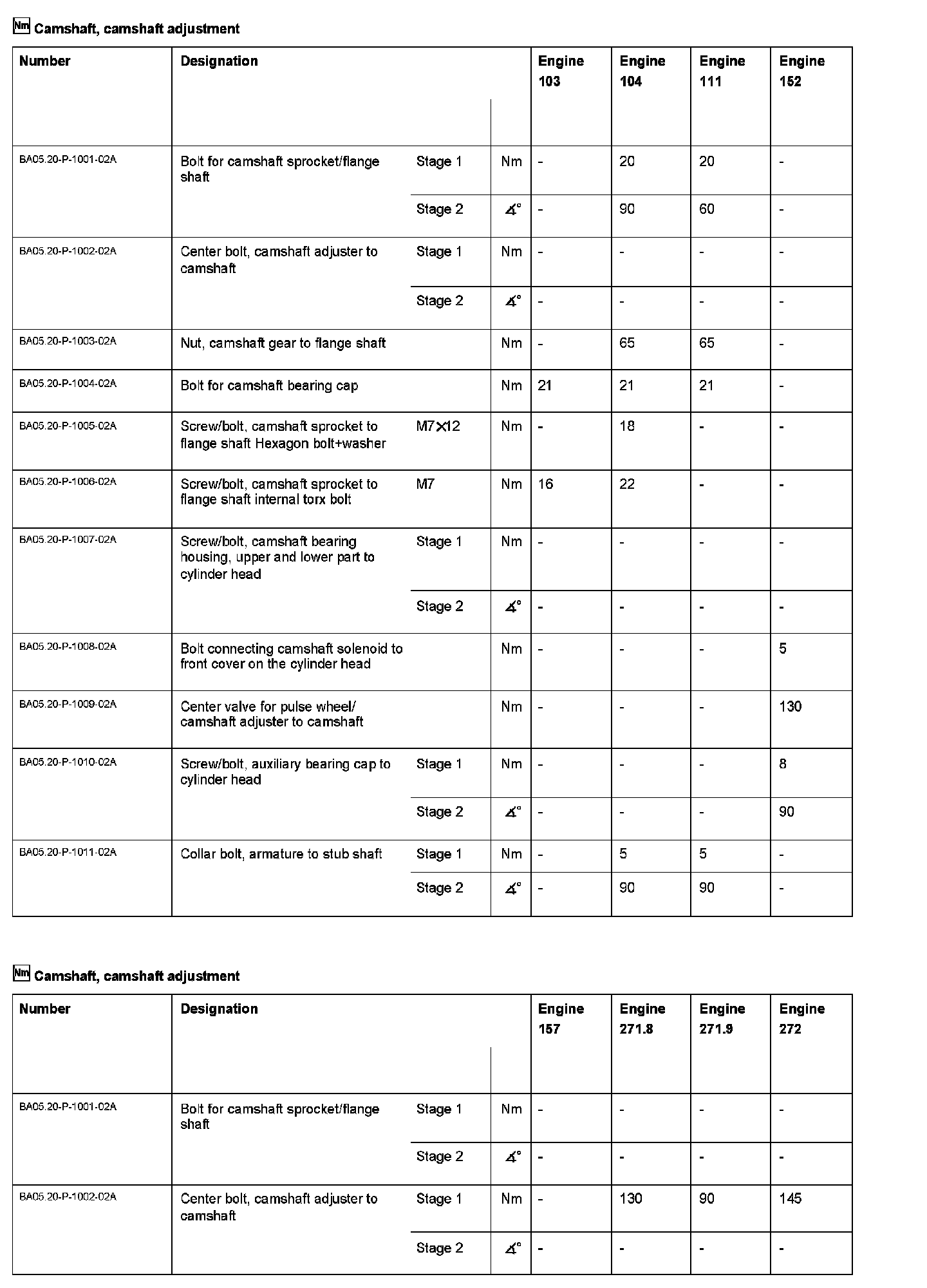

BA05.20-P-1000-02A Camshaft, Camshaft Adjustment
ENGINE 103, 104, 111, 152, 157, 271, 272, 273, 276, 278
