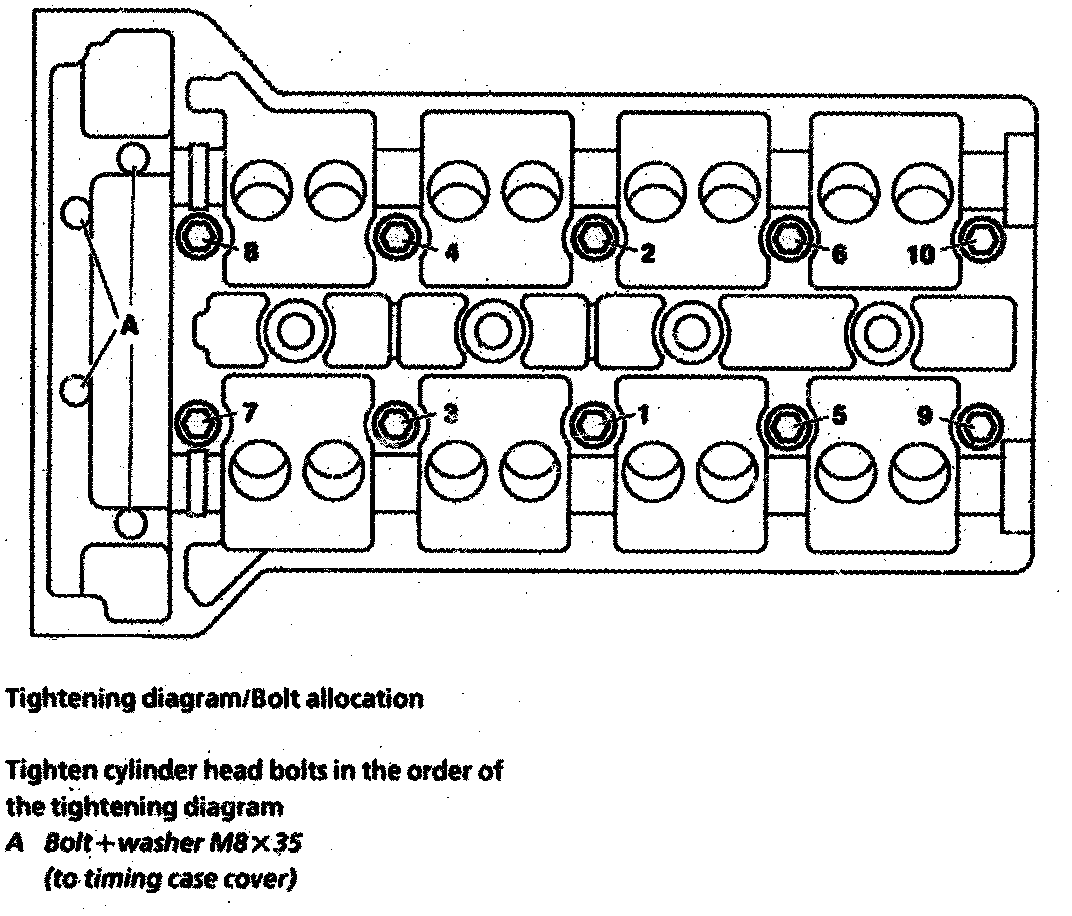

Cylinder Head Torque & Sequence

Using the illustration above, tighten the cylinder head bolts as follows:
1st stage: tighten to: 55 Nm
2nd stage: turn 90°
3rd stage: turn an additional 90°

Tighten cylinder head to timing cover bolts (A) as follows:
replace Torx Bolts (A) when carrying out repairs
1st stage: tighten to: 18 Nm
2nd stage: turn 90°
