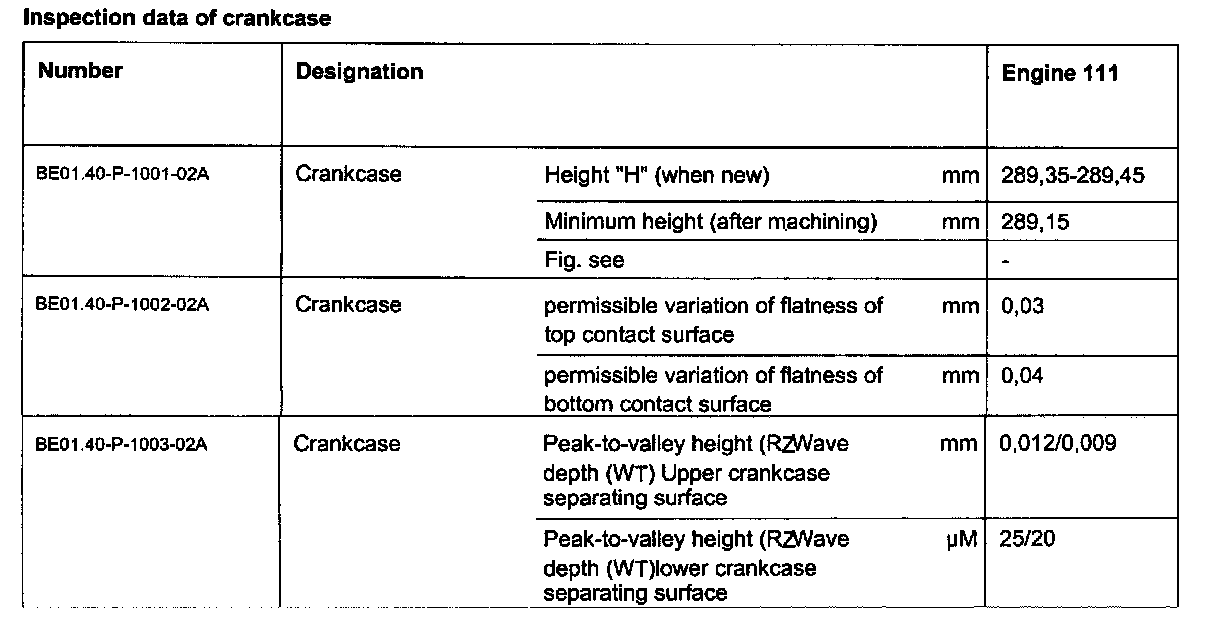

Inspection Data of Crankcase





Inspection Data Of Crankcase

Inspection Data Of Crankcase, Part 1:
