C 230K (202.024) L4-2.3L SC (111.975)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>

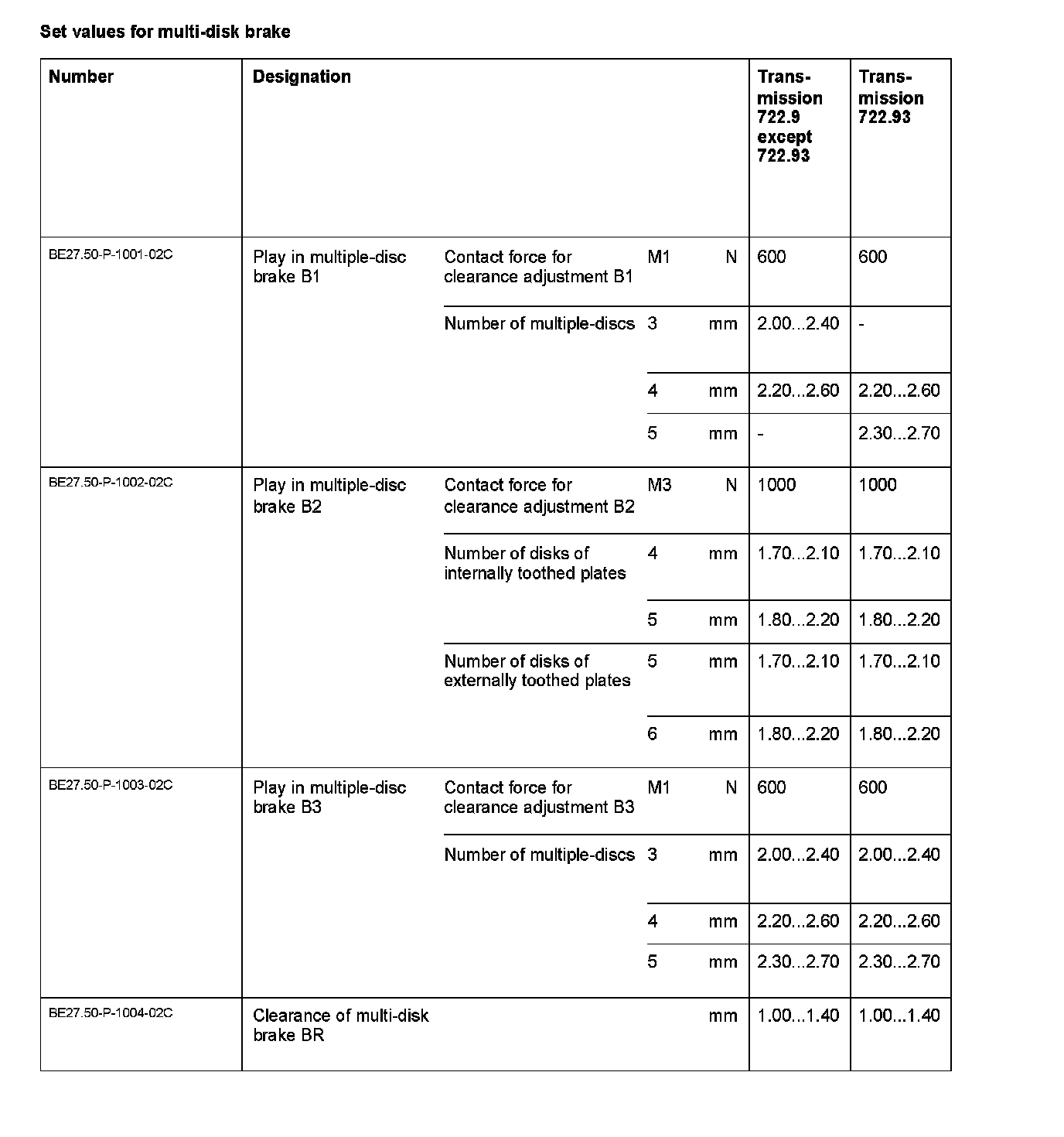

BE27.50-P-1000-02C Brake Band/Multi-Disk Brake
BE27.50-P-1000-02C Brake Band/Multi-Disk Brake
BE27.50-P-1000-02C Brake
Band
/Multi-Disk Brake
Transmission 722.9
