Power Window Switch: Service and Repair
AR72.29-P-0001F Removing And Installing Switch Group In Center Console

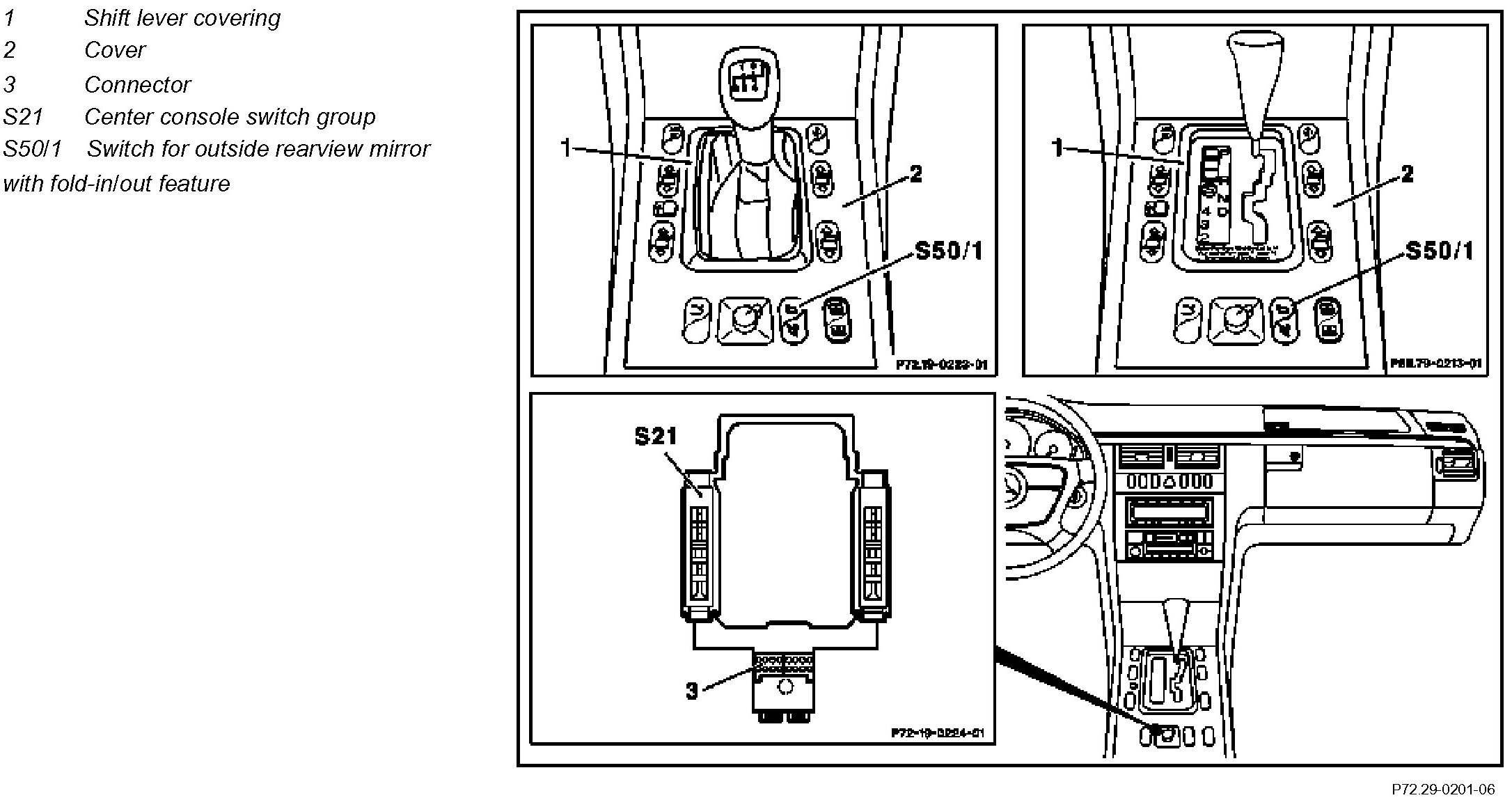

Component Identification:

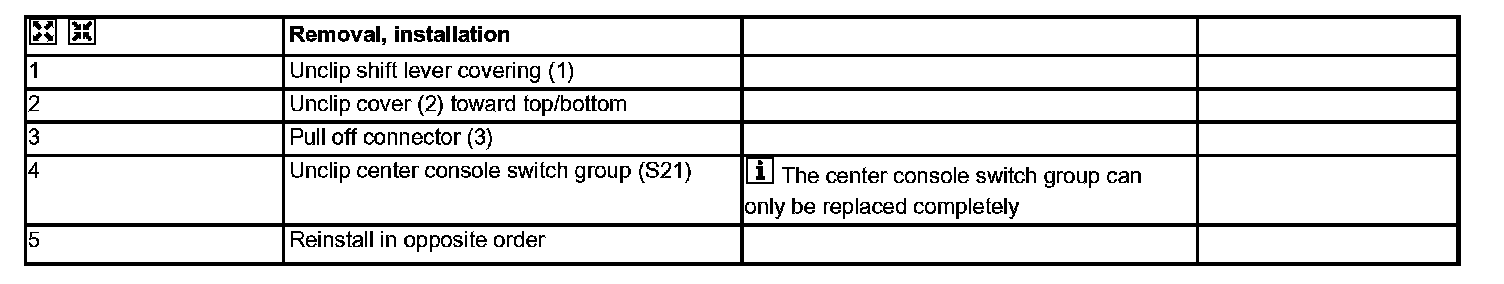

Steps 1 - 5:
