AN91.60-P-0002B Retrofitting Automatic Child Seat Recognition (ACSR)

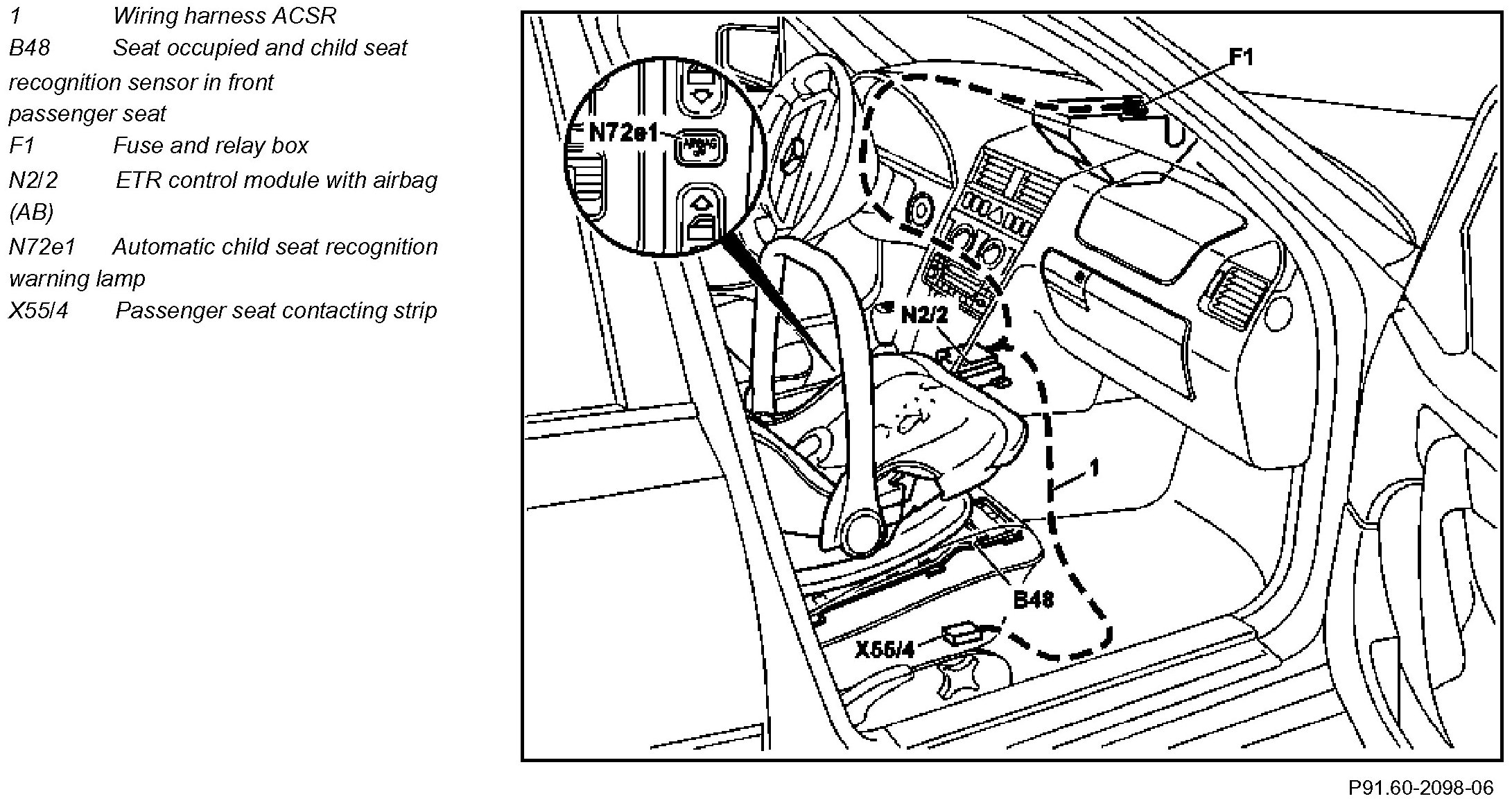

Component Identification:

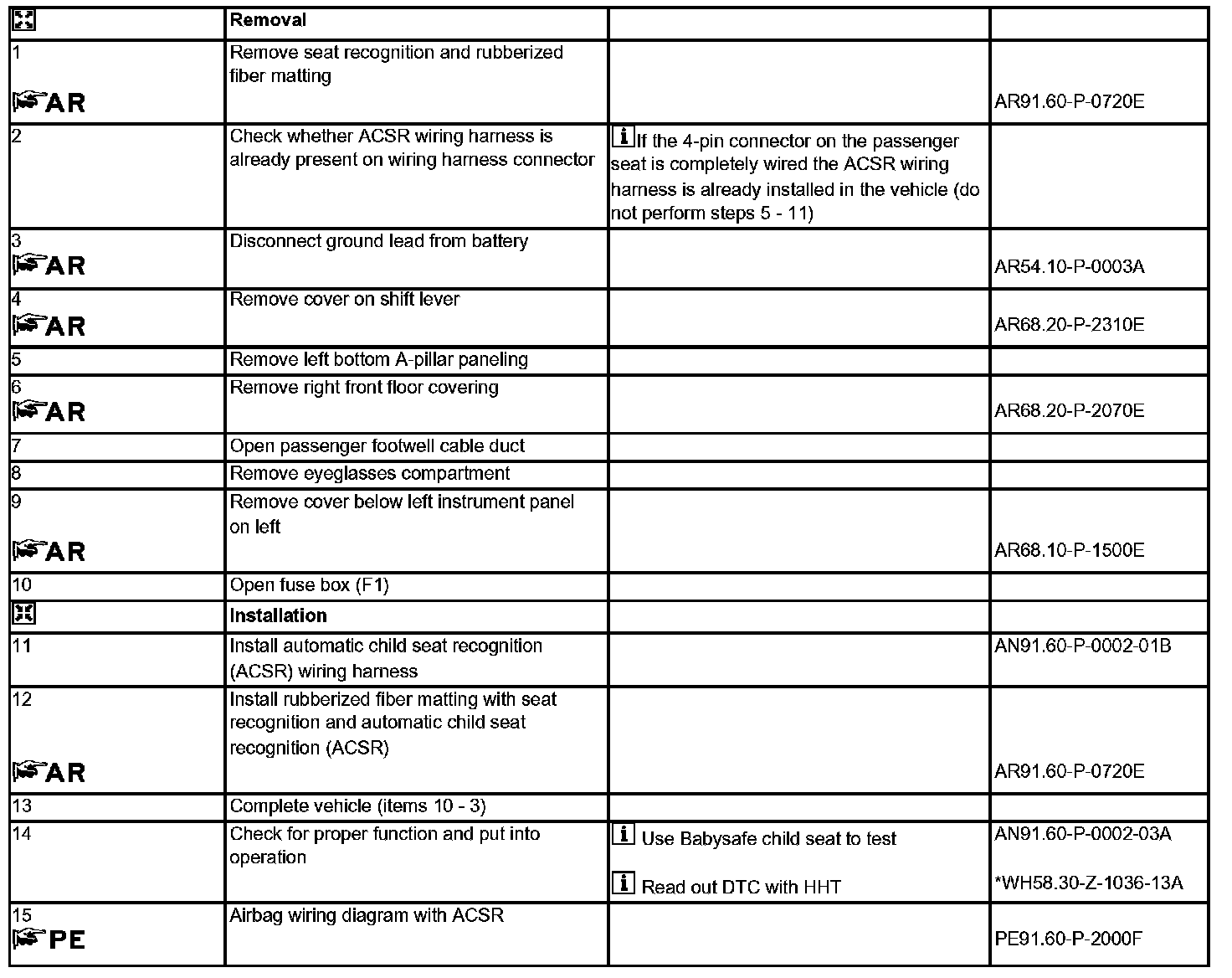

Steps 1 - 15:

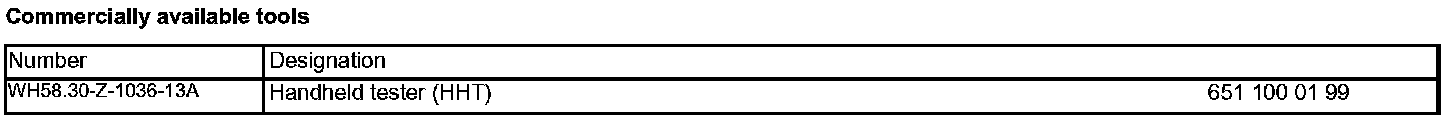

Commercially Available Tools:

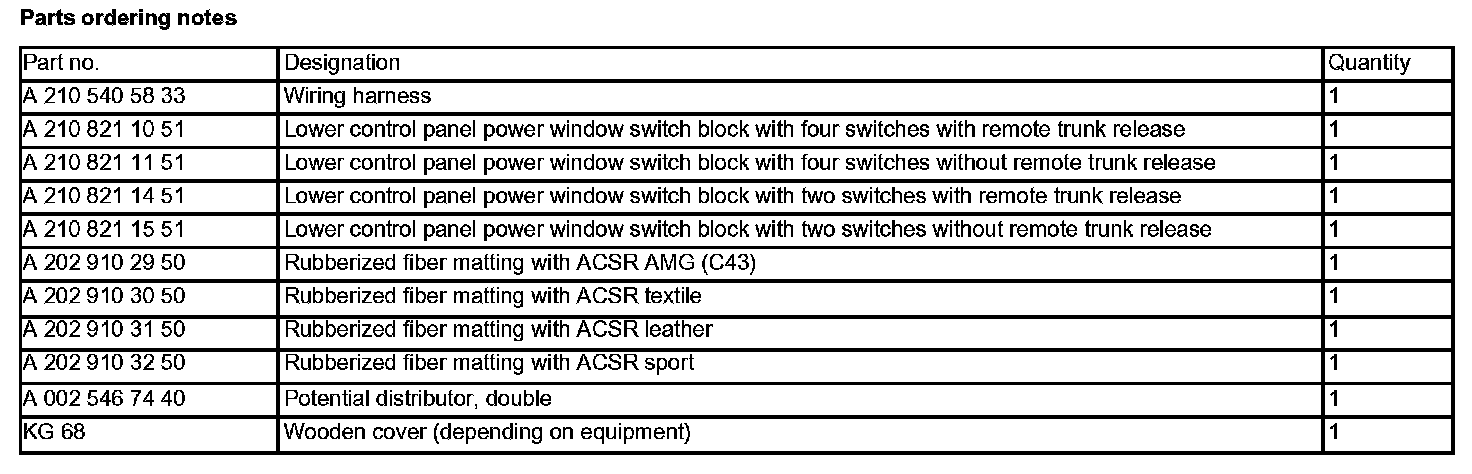

Parts Ordering Notes:
