Combination Switch: Service and Repair

Removing And Installing Combination Switch







1 Disconnect ground cable at the battery

CAUTION: On model 210 insulate terminal on ground cable to prevent unintentional contact between disconnected ground cable and ground W10

2 Remove steering wheel

CAUTION: Caution when handling airbag unit Improper handling may cause damage to the airbag unit

3 Remove contact spiral
4.1 Remove cover below instrument panel (driver's side)
4.2 Remove bottom section of instrument panel (driver's side)

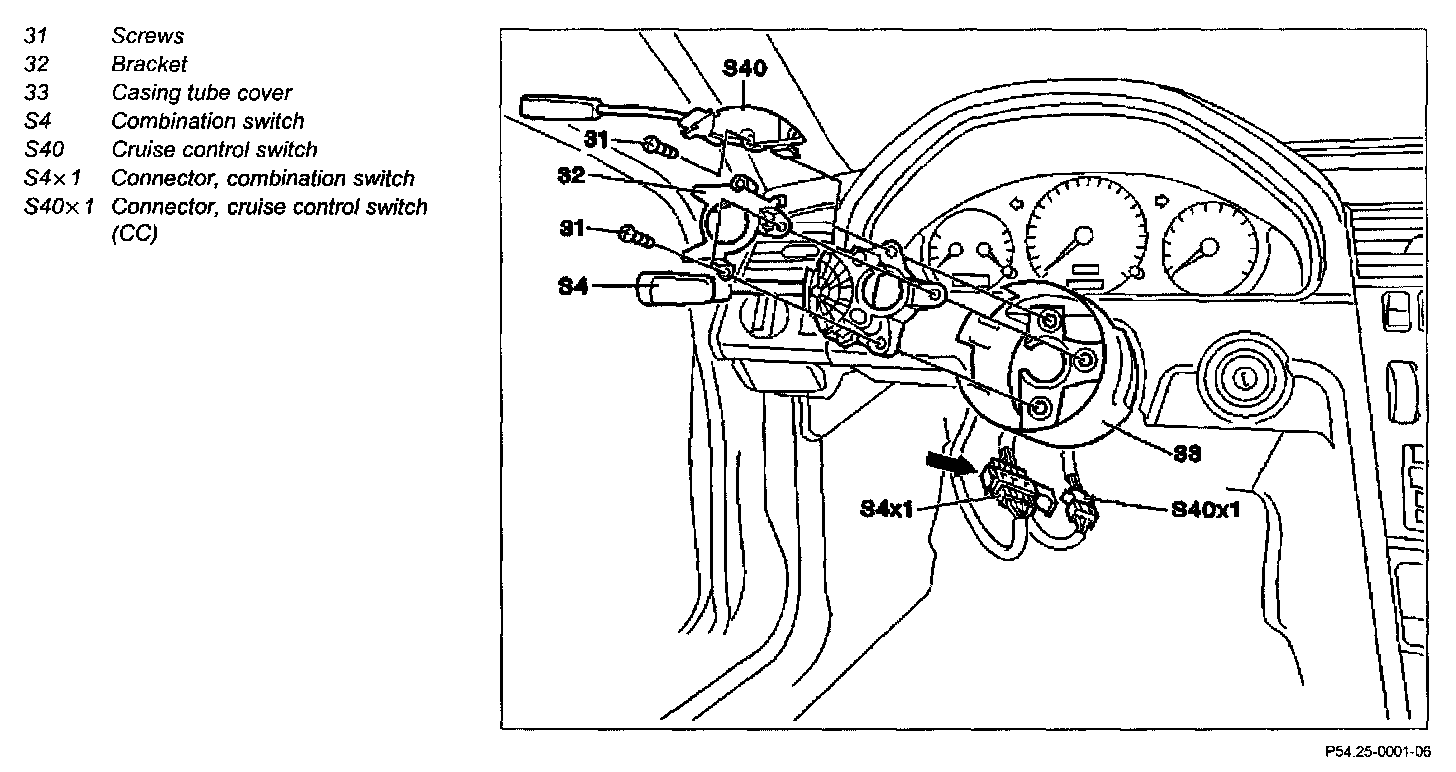

5 Unscrew screw (31)
6 Take out bracket (32)
7 Separate connector (S4x1)
- Take connector out of fixture and push bar (arrow)

8 Separate connector (S40x1)
- Cruise control (code 440a)
- Take connector out of fixture

9 Detach wiring
10.1 Take out casing tube cover (33) together with combination switch (S4)
- without cruise control

10.2 Take out casing tube cover (33) with combination switch (S4) and cruise control switch (S40)
- with cruise control (code 440a)

11.1 Take combination switch (S4) out of casing tube cover
- without cruise control

11.2 Take combination switch (S4) and cruise control switch (S40) out of casing tube cover
- with cruise control (code 440a)

12 Reinstall in opposite order
