Outside Temperature Display Sensor: Service and Repair

Removing And Installing Outside Temperature Indicator Sensor

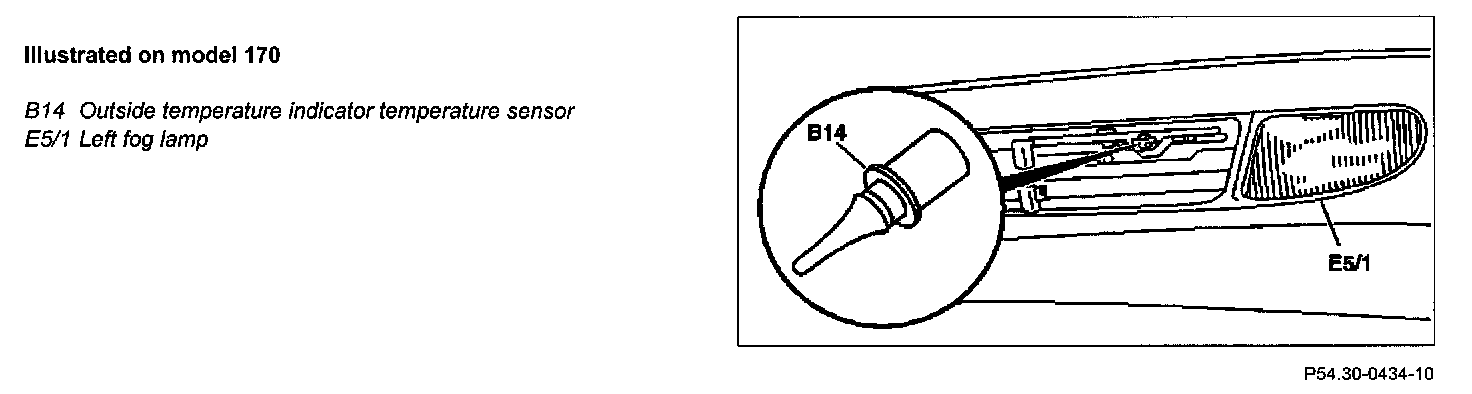

Illustrated On Model 170:

NOTE: The location of the temperature sensor for the outdoor temperature indicator on model 202, 208 and model 210 is slightly below the location in model 170.


1 Disconnect ground lead from battery

CAUTION: On model 210 insulate cable terminal on ground lead to prevent accidental contact between disconnected ground lead and ground point W10.

2 Remove engine compartment paneling
3 Open installation flap for left fog lamp (E5/1)
4 Disconnect electrical connector for outside temperature indicator temperature sensor (B14)
5 Unclip outside temperature indicator temperature sensor (B14) below front bumper
6 Reinstall in opposite order
