Exterior Lighting Module: Service and Repair

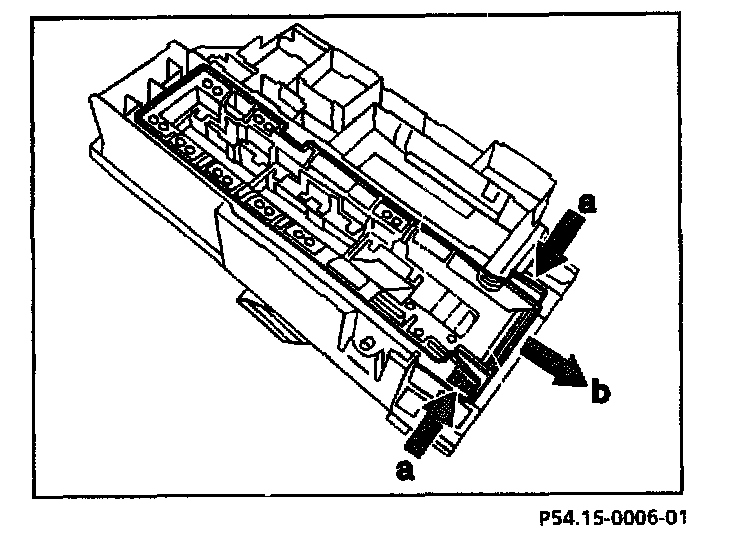

1 Press together slide locks on the knurled side (arrows "a") and push in direction of arrow (b).
2 Take out couplings.
