Home >> Mercedes Benz >> 2000 >> C 230K (202.024) L4-2.3L SC (111.975) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Audible Warning Device Control Module >> Service and Repair

Audible Warning Device Control Module: Service and Repair



Replacing Seat Belt Reminder Control Unit/Seat Belt and Road Speed Reminder Control Unit

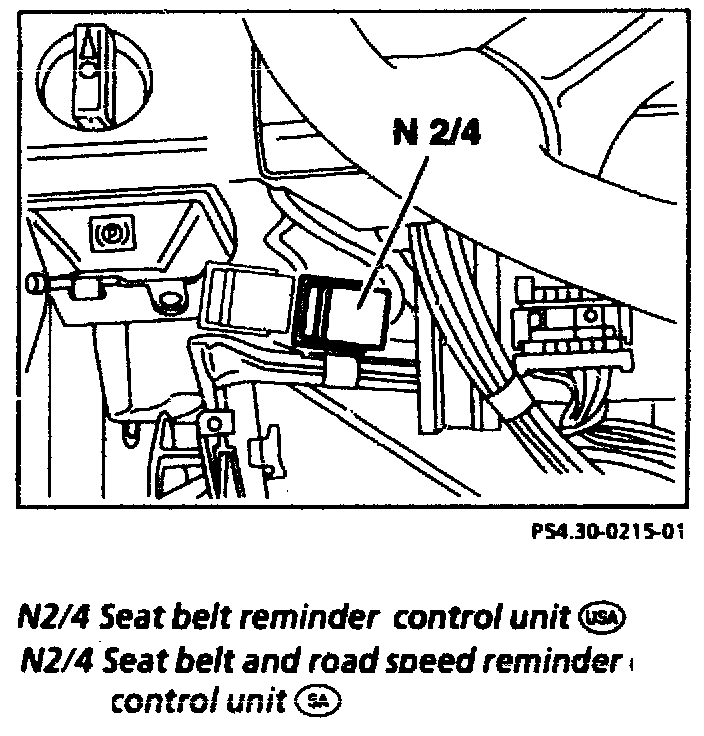

Component Identification:

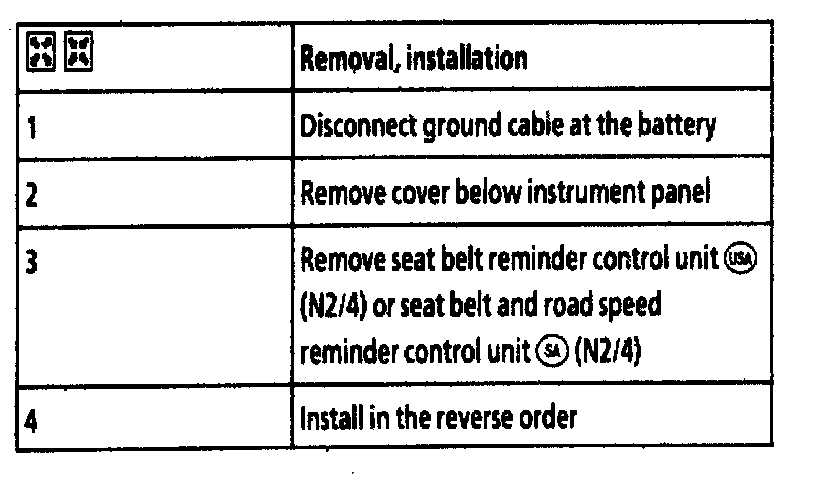

Removal/Installation, Steps 1 - 4:
