Removal and Replacement

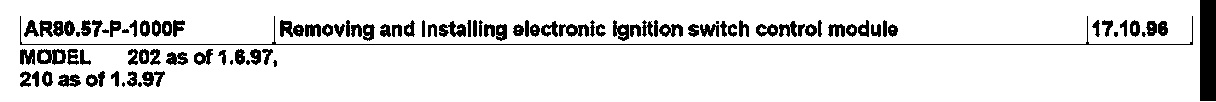

AR80.57-P-1000F Remove/Install Electronic Ignition/Starter Switch Control Module

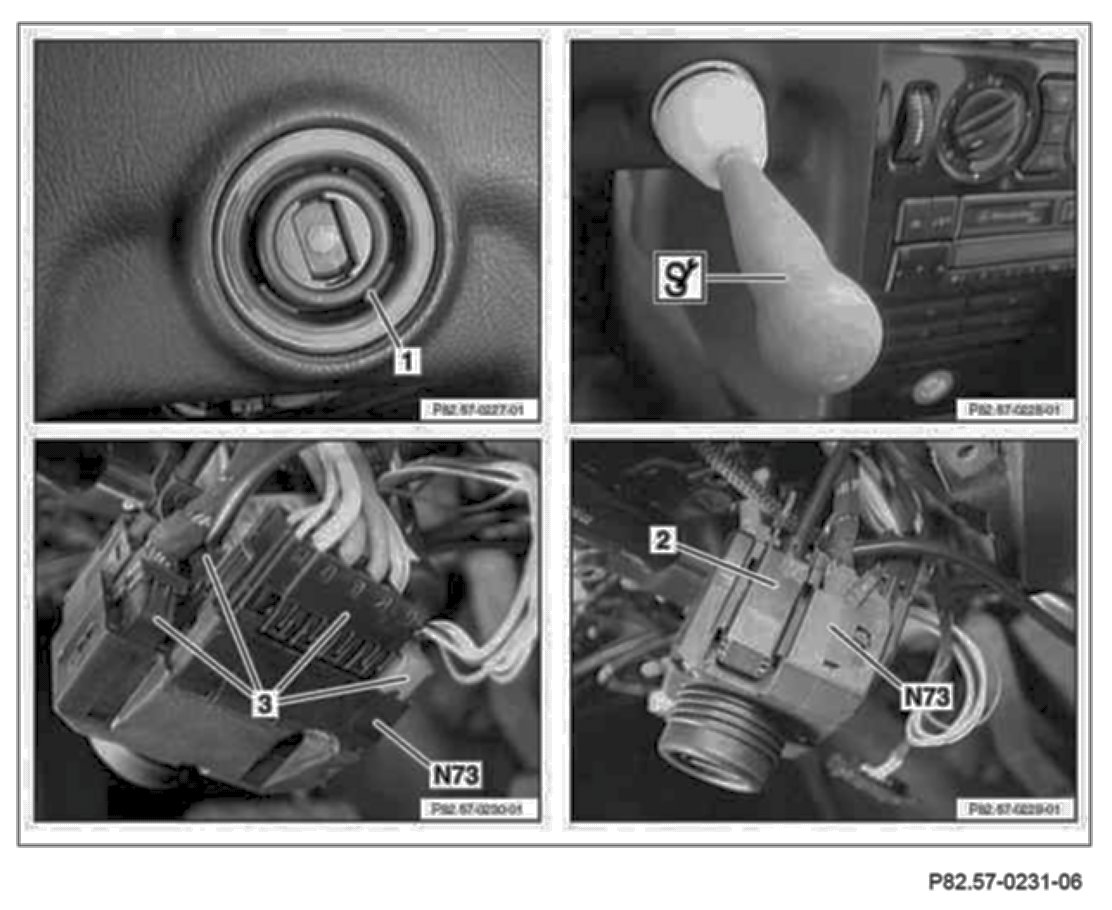

Component Description:

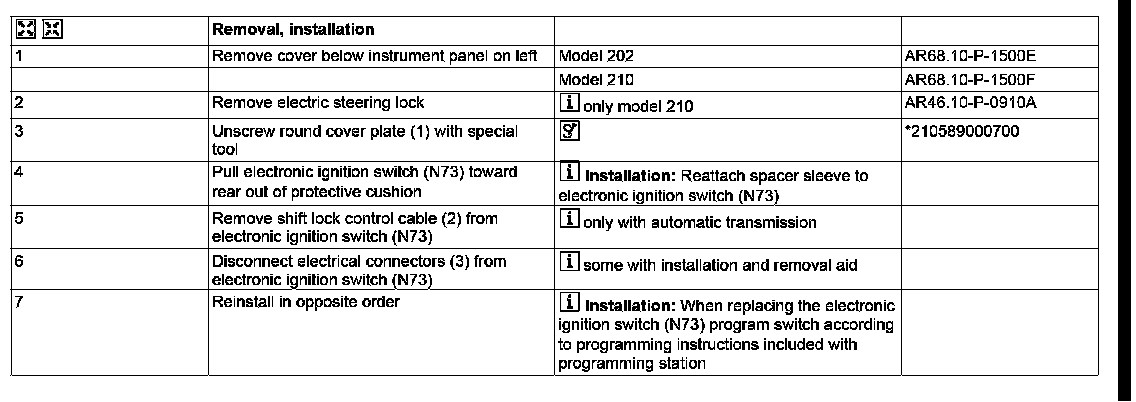

Removal, Installation:

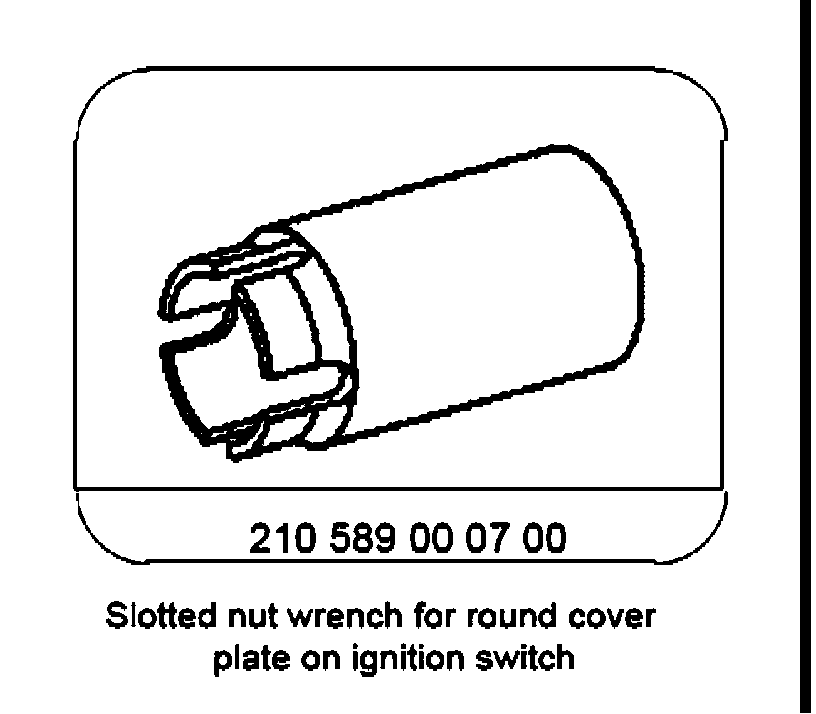

Special Service Tool:
