Acronyms/Abbreviations For Wiring Diagrams
Acronyms/Abbreviations For Wiring Diagrams

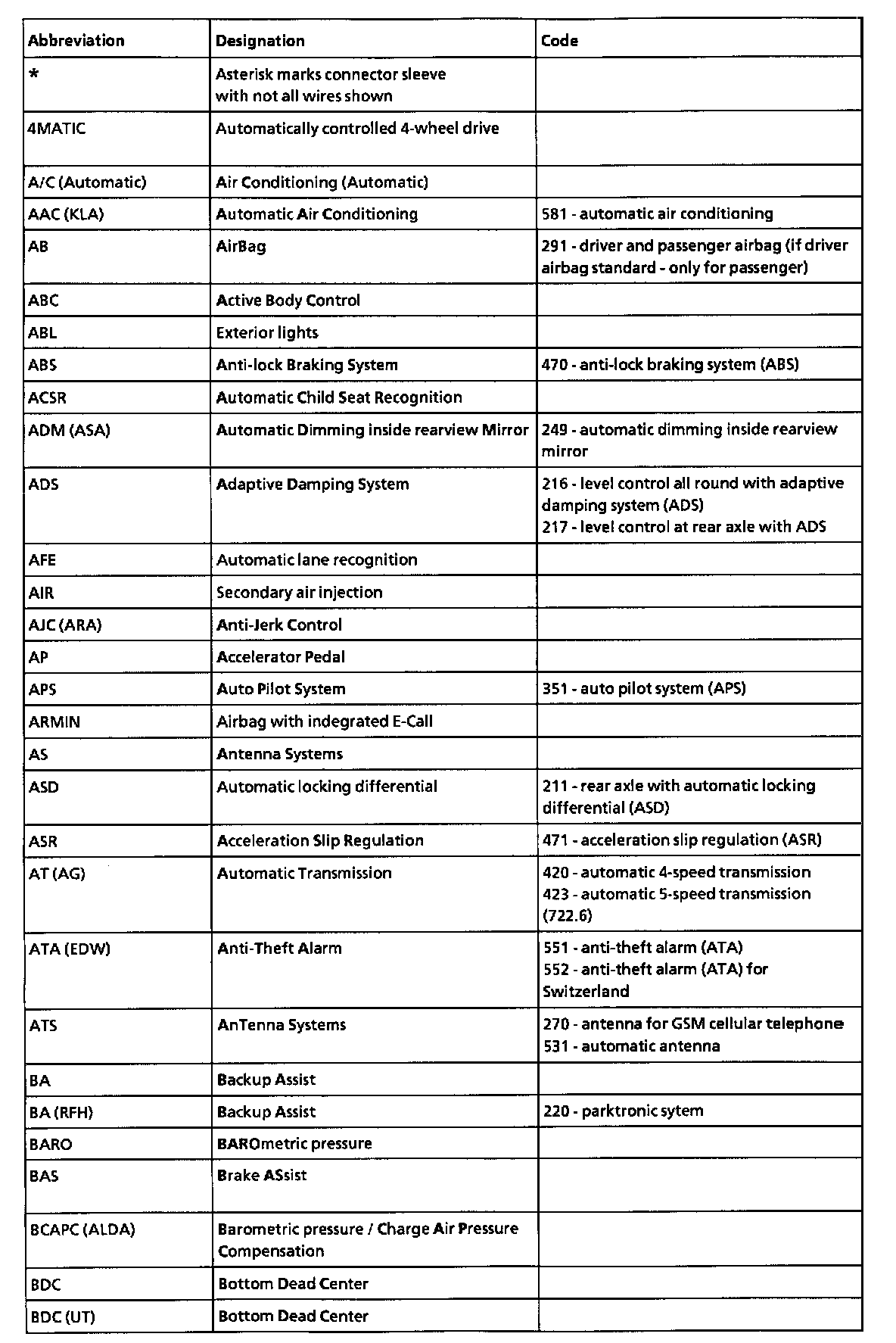

* - BDC (UT):

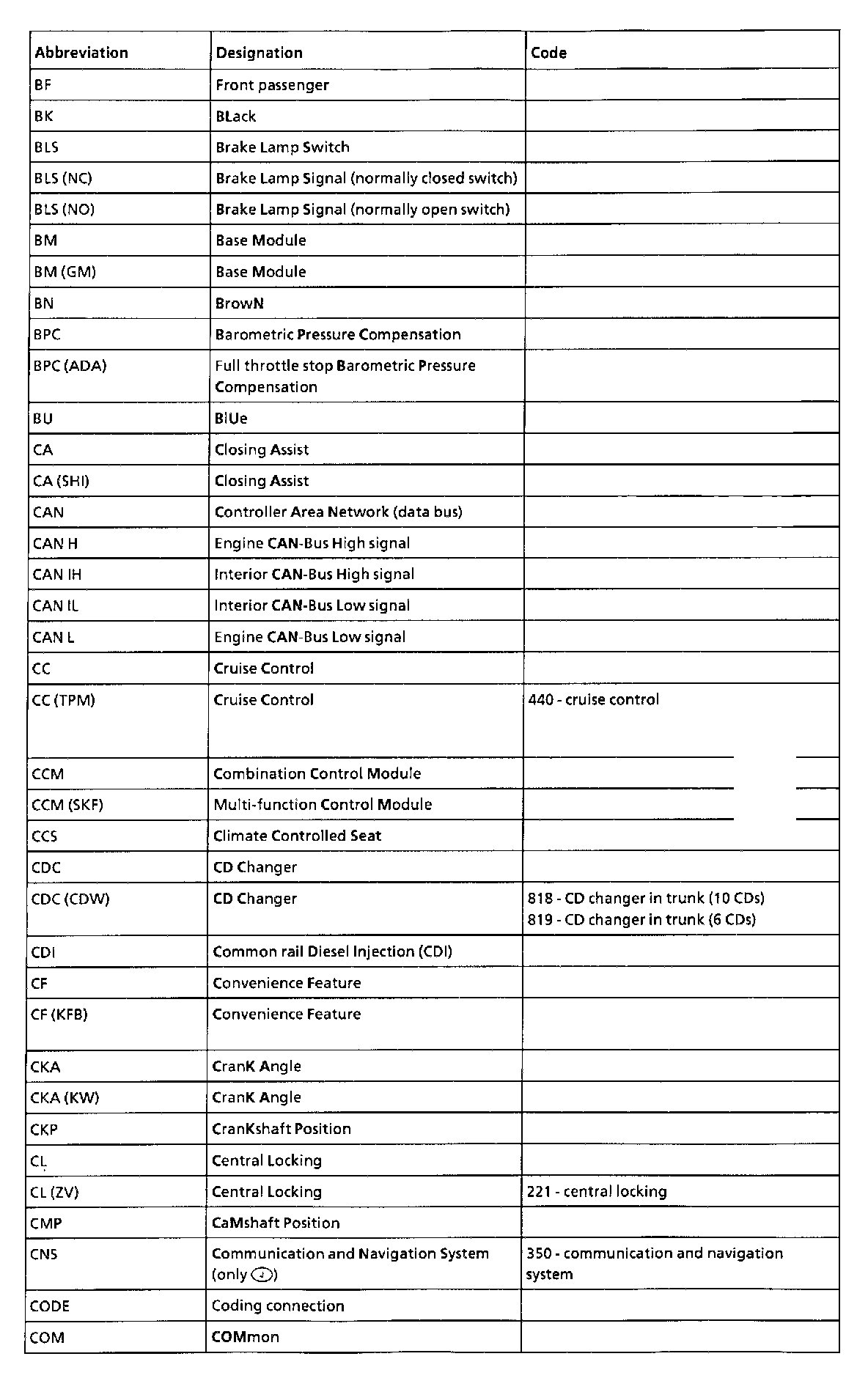

BF - COM:

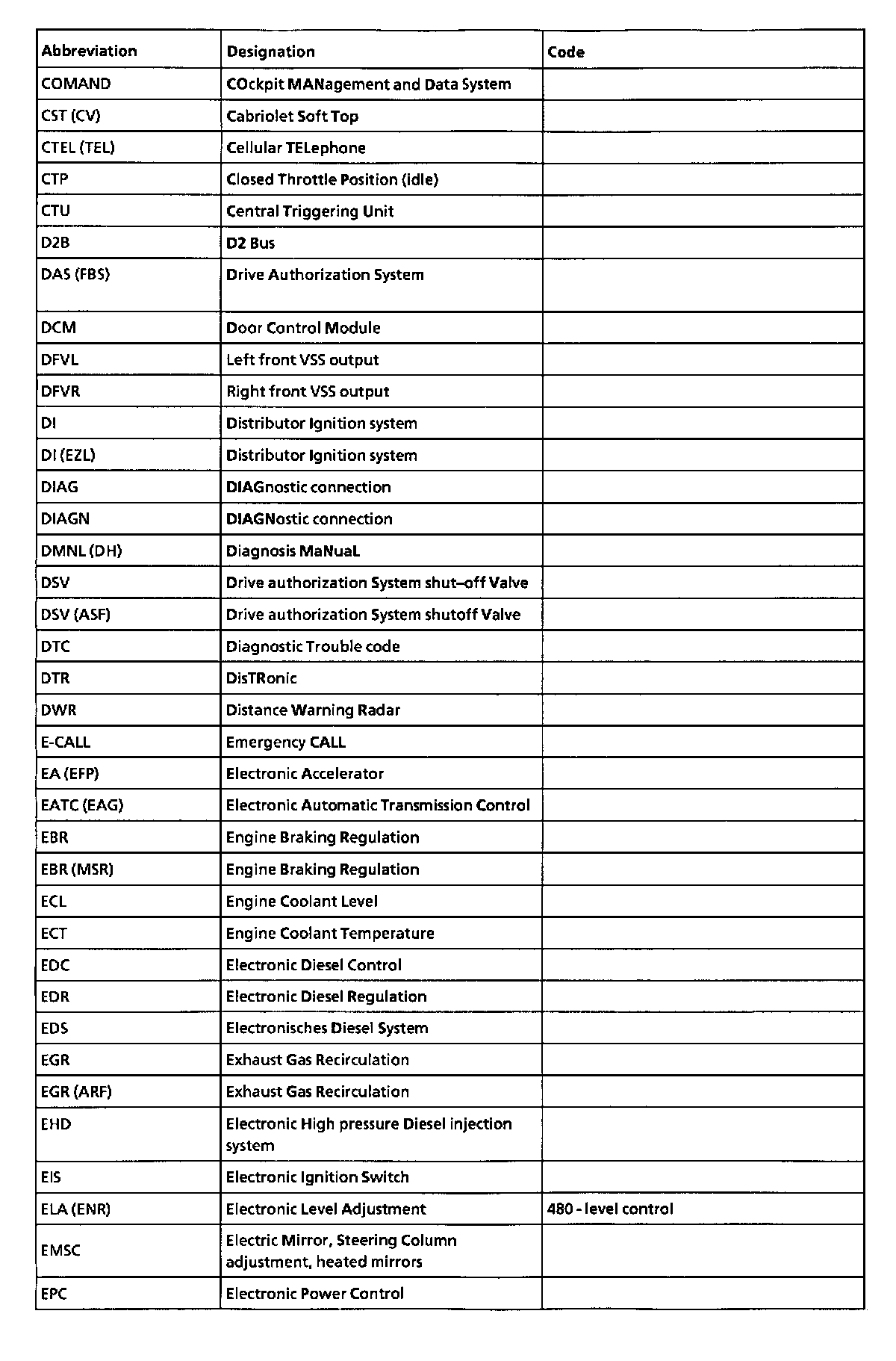

COMAND - EPC:

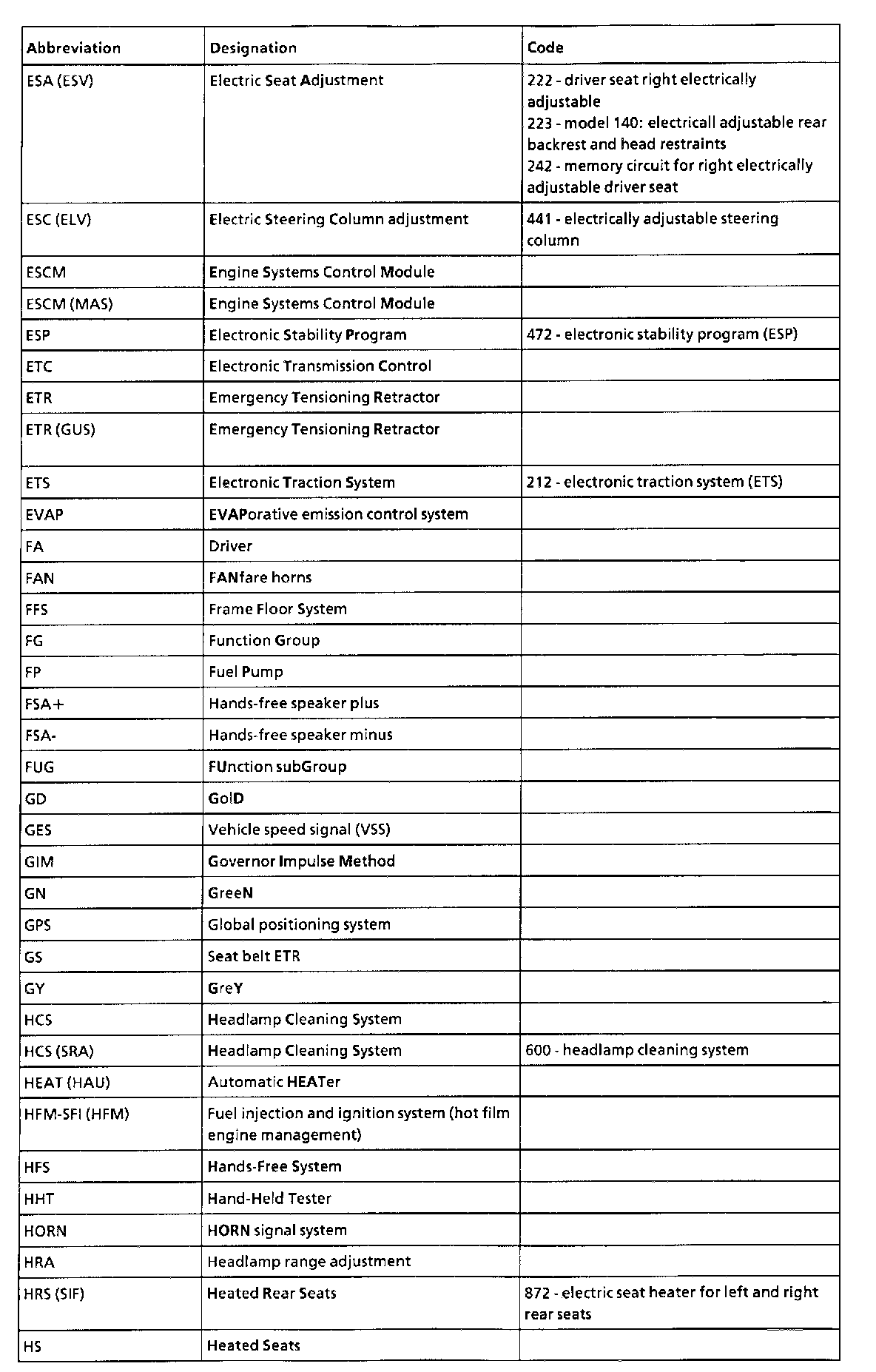

ESA (ESV) - HS:

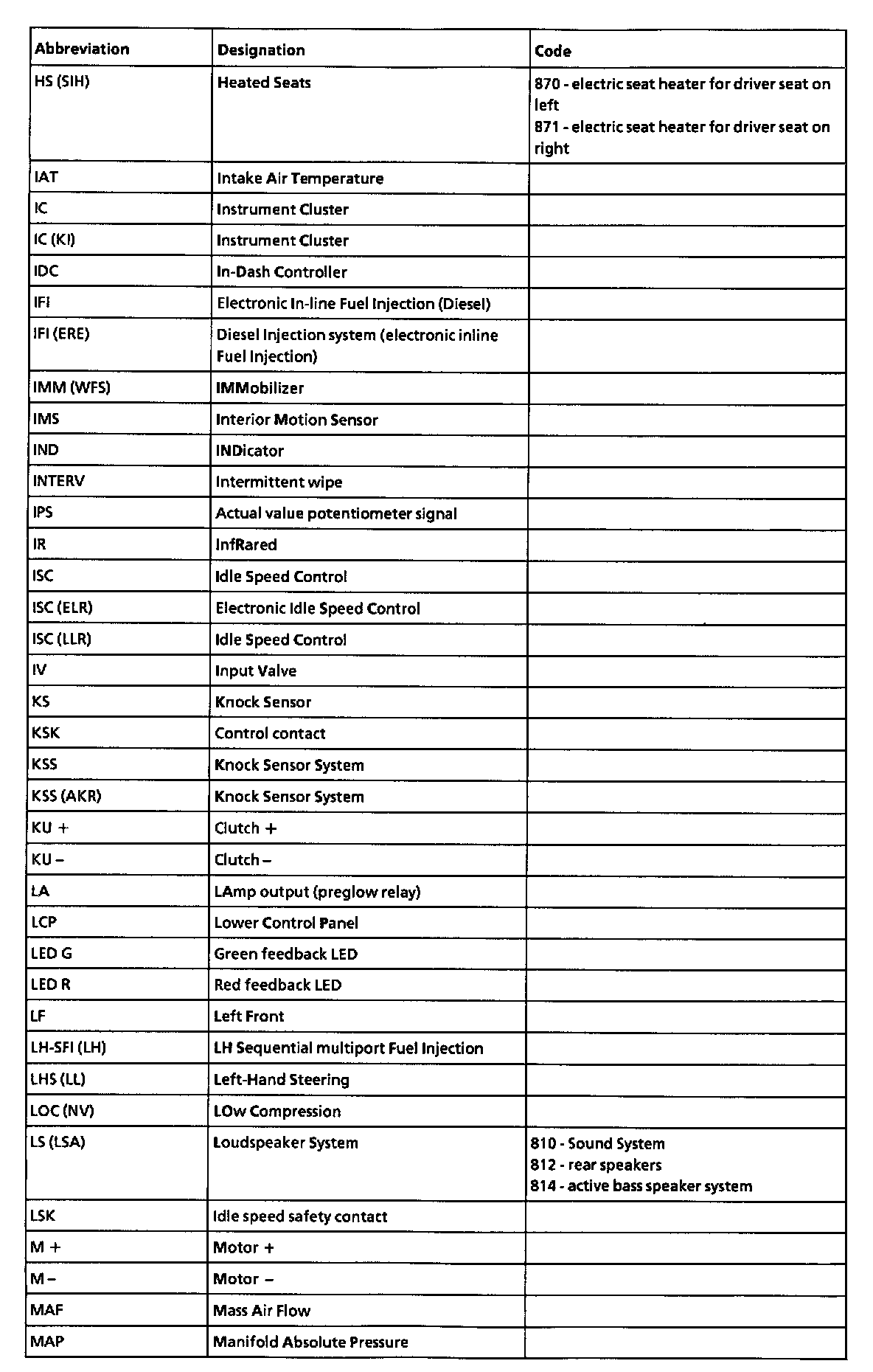

HS (SIH) - MAP:

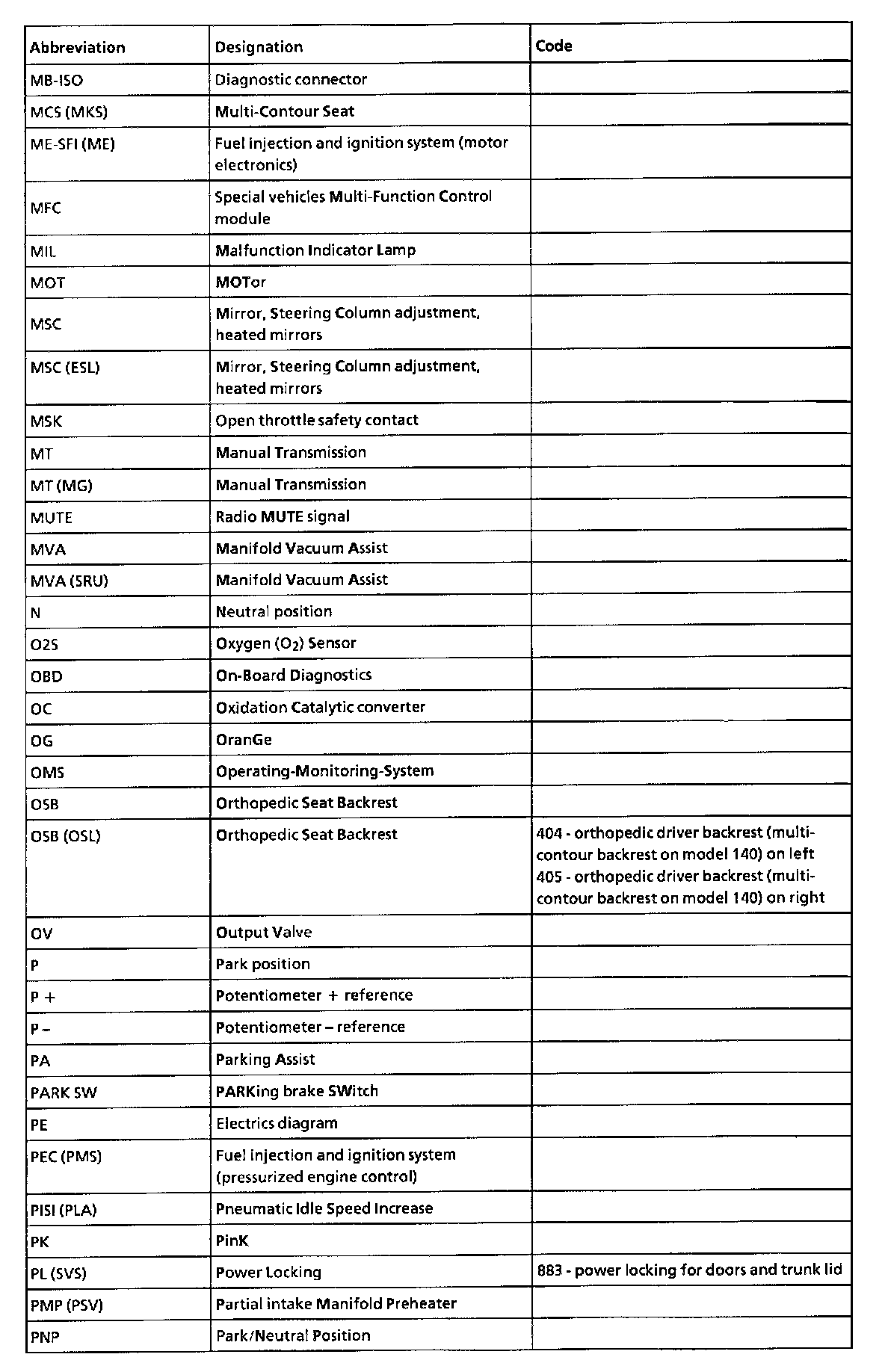

MB-ISO - PNP:

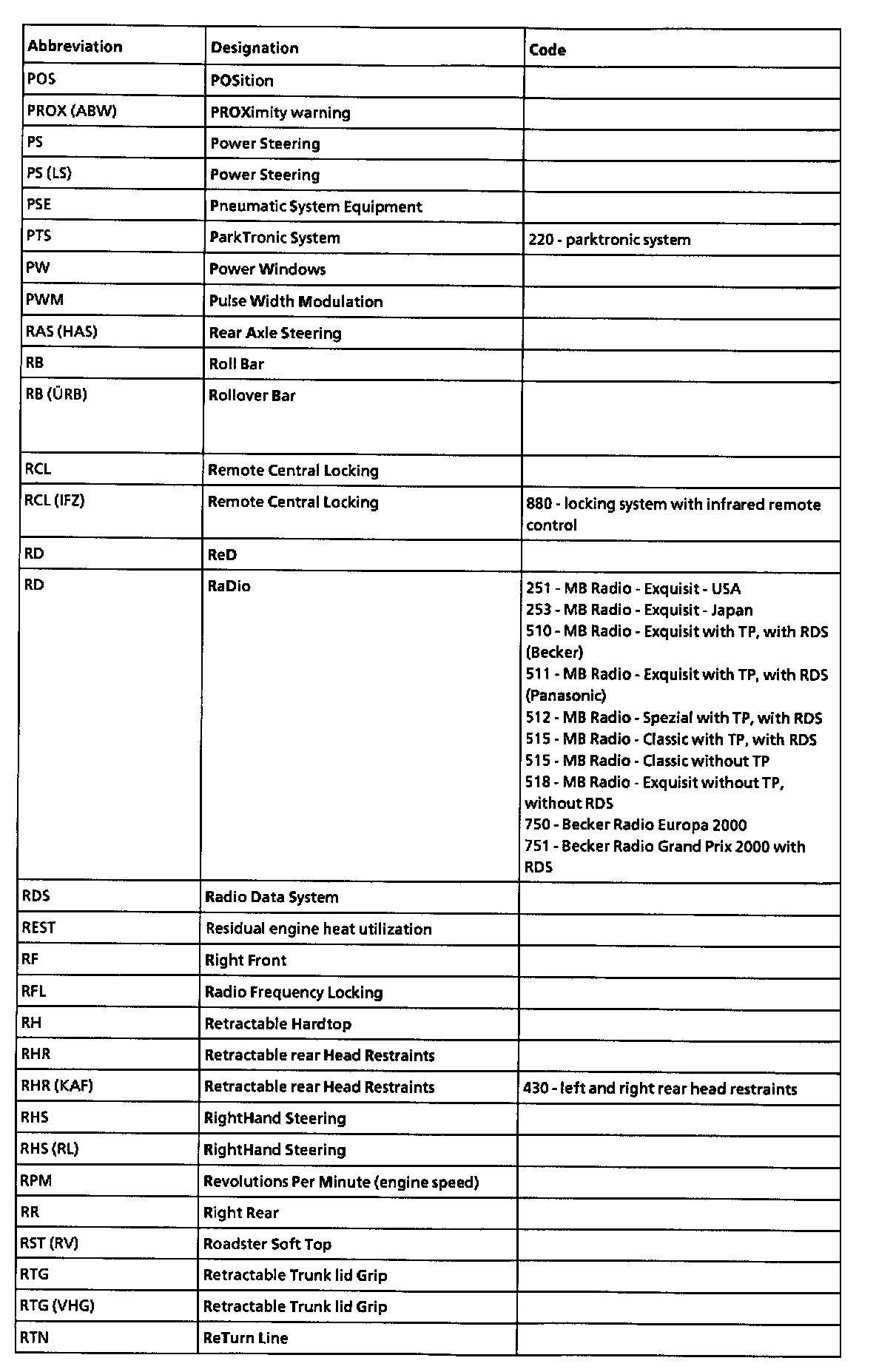

POS - RTN:

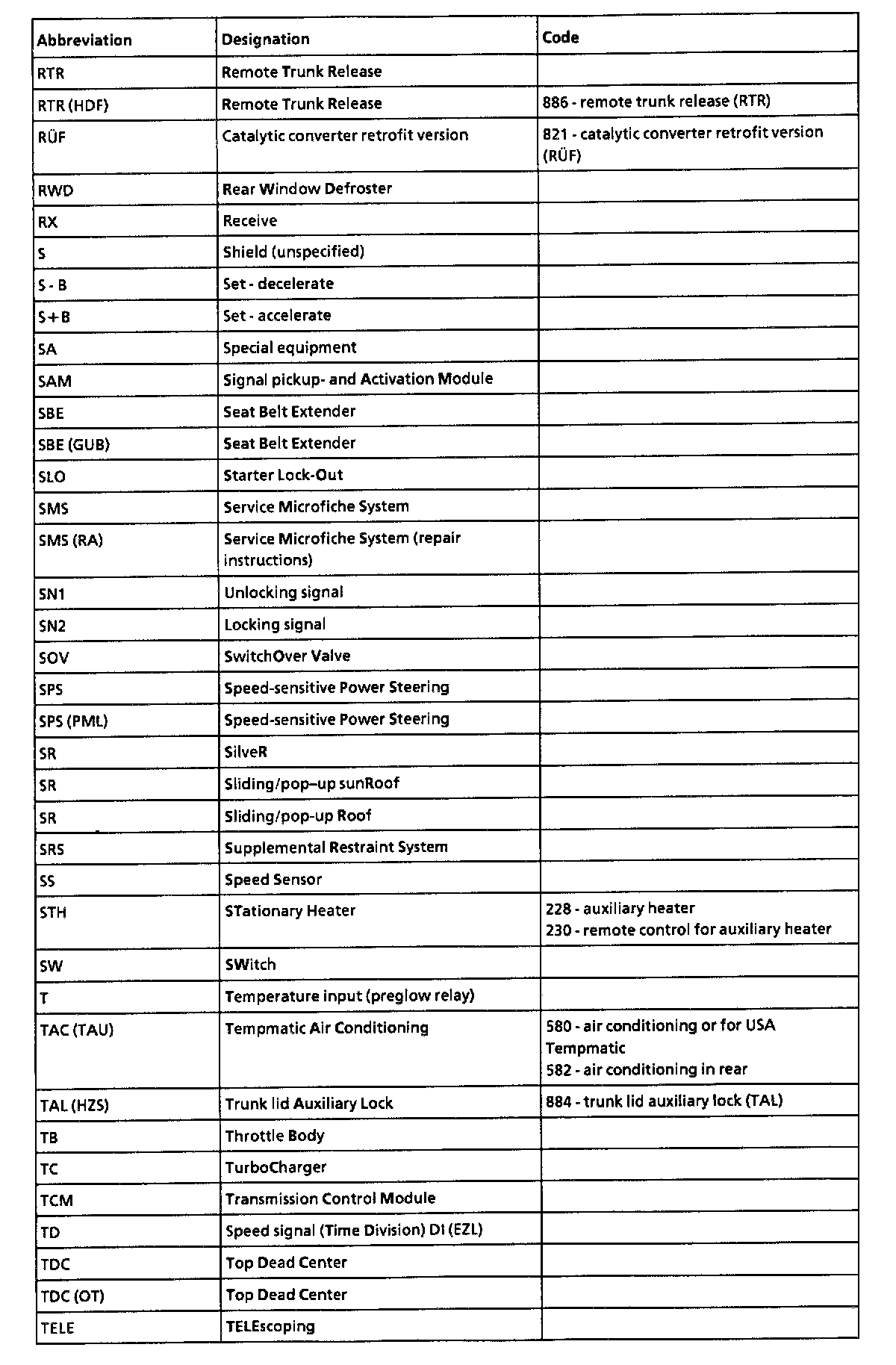

RTR - TELE:

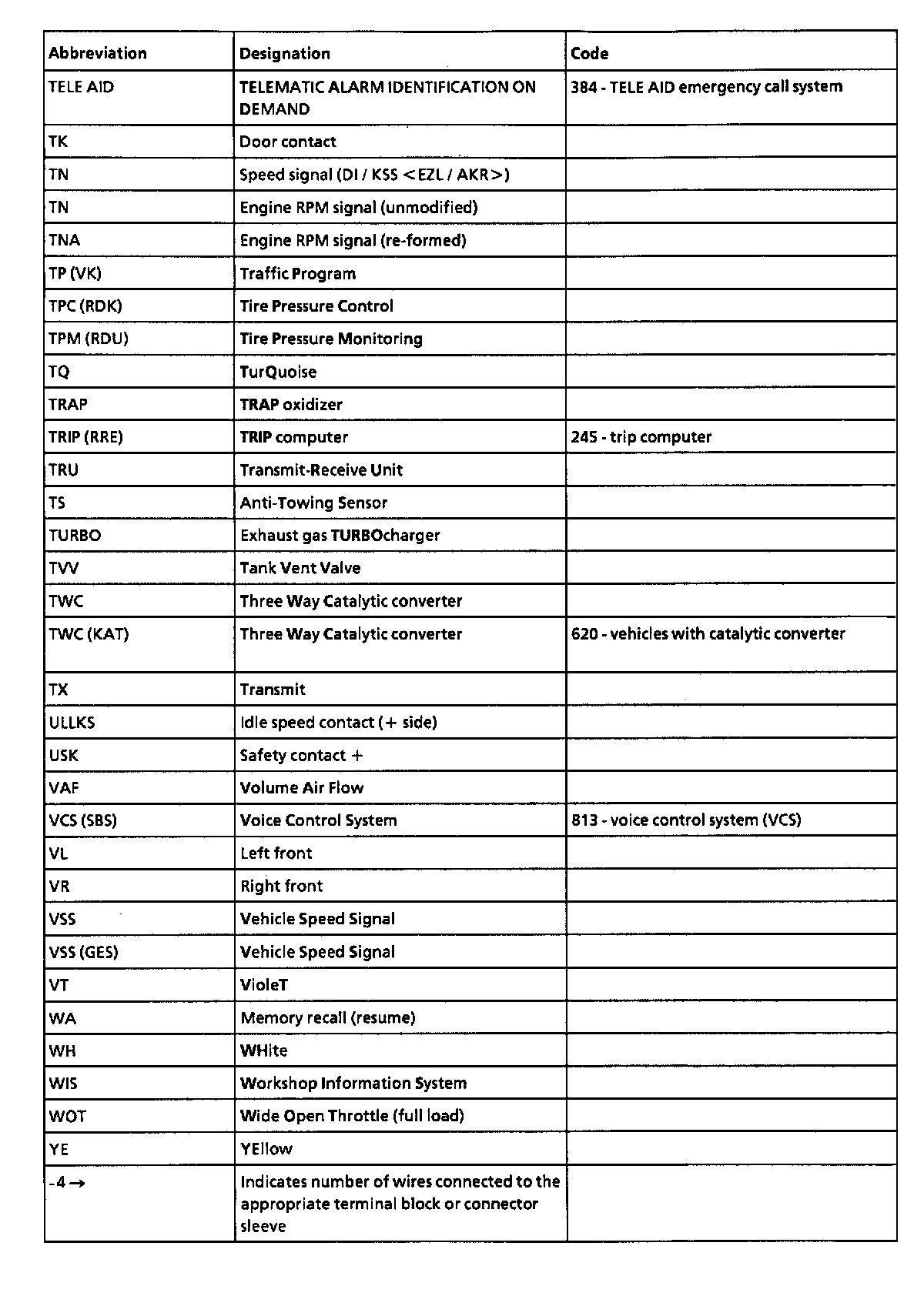

TELE AID - (-4=>):
