Throttle Cable/Linkage: Service and Repair

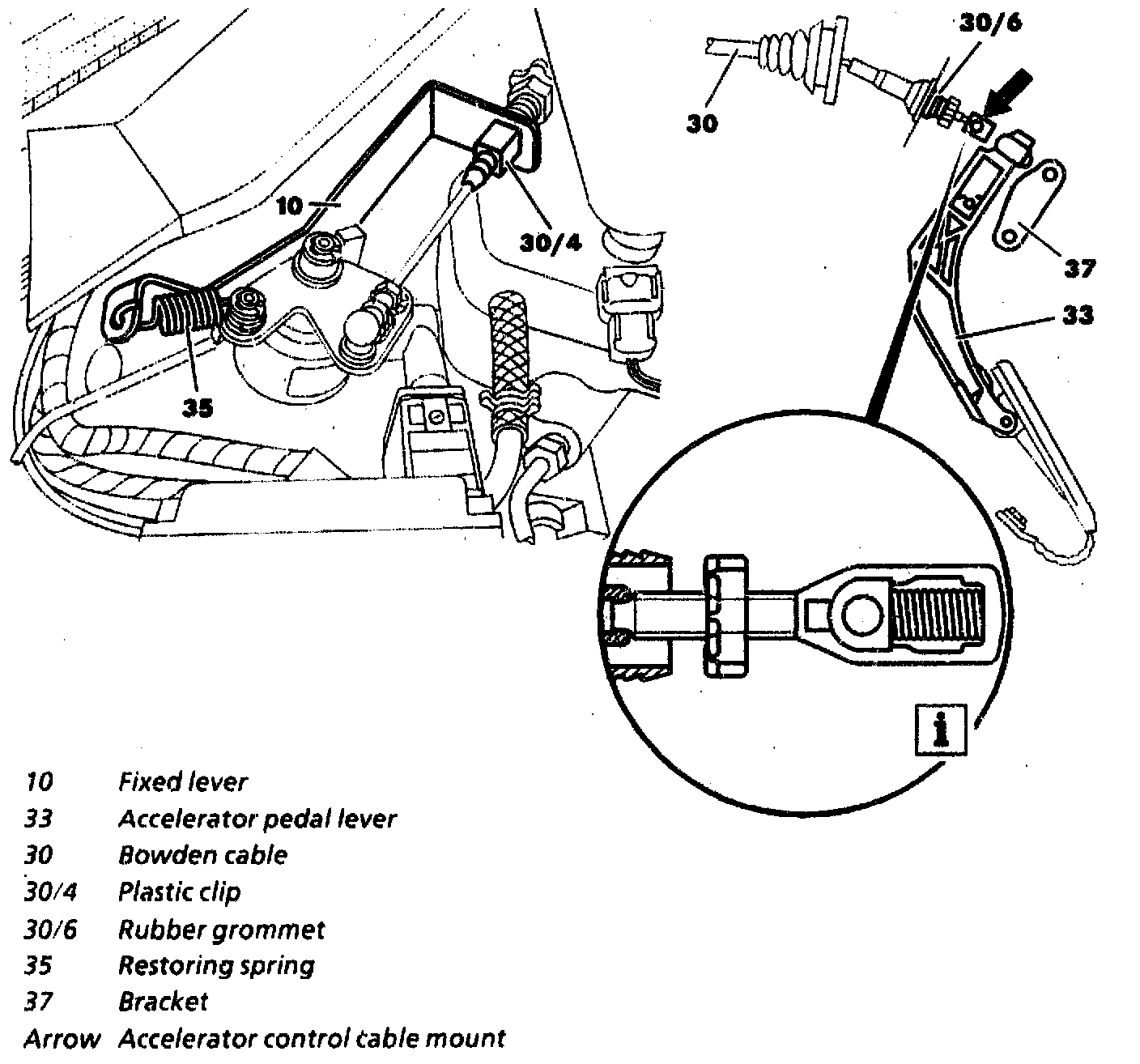

Shown on model 140

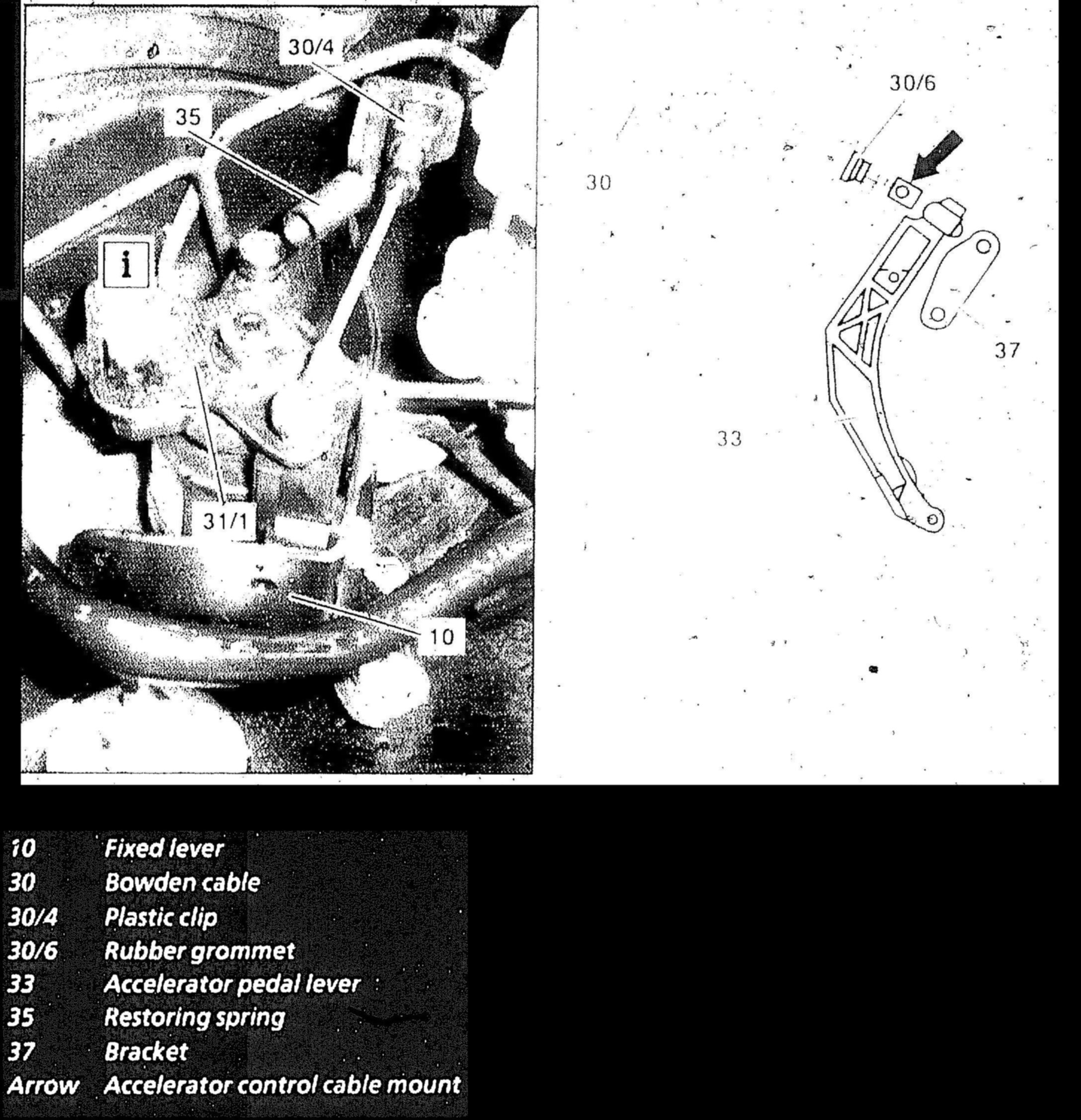

Shown on model 210

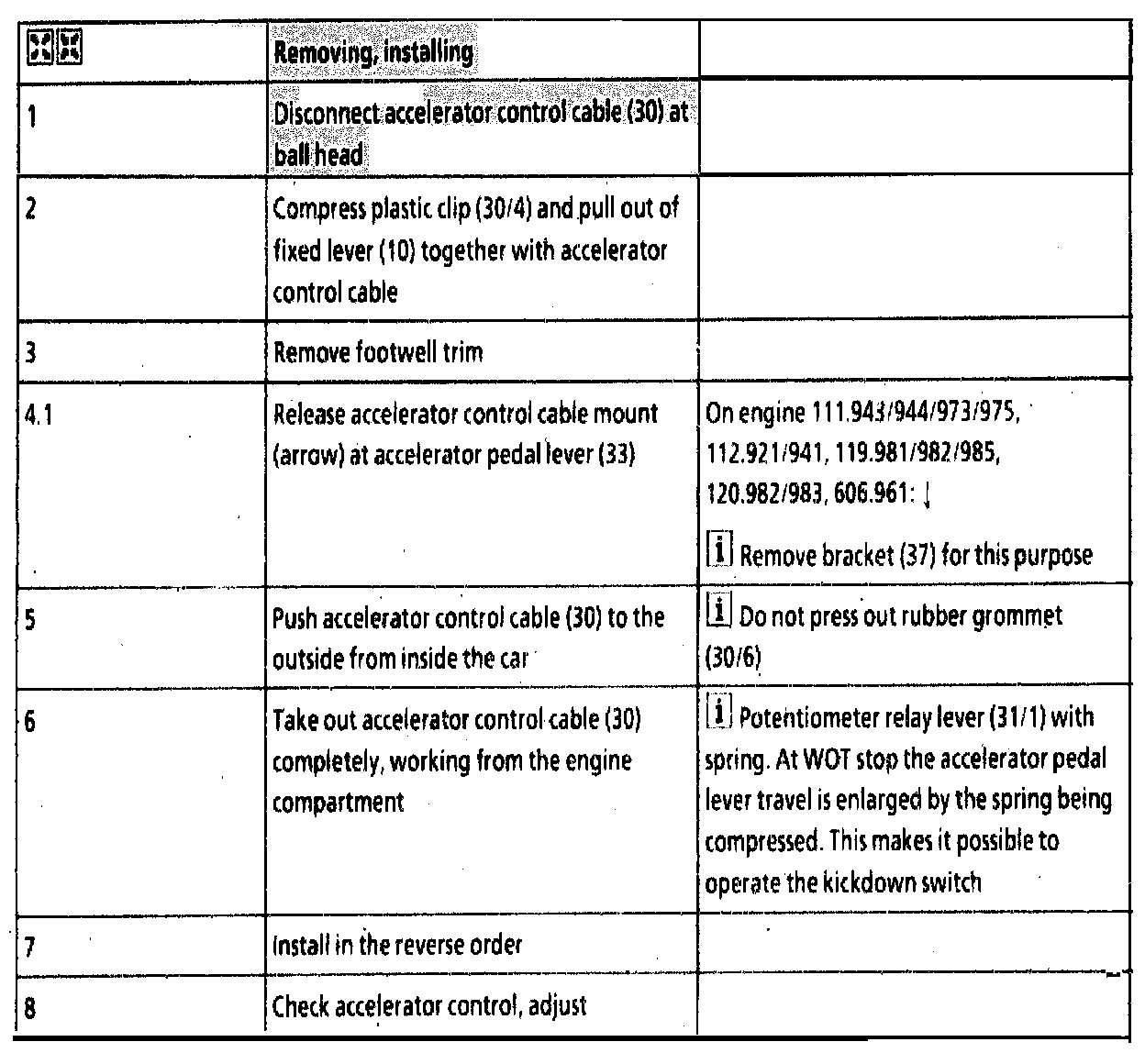

Removing, installing
