Home >> Mercedes Benz >> 2000 >> C 230K (202.024) L4-2.3L SC (111.975) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Throttle Cable/Linkage >> Adjustments >> AR30.10-P-1010CA Adjusting Throttle Control

AR30.10-P-1010CA Adjusting Throttle Control

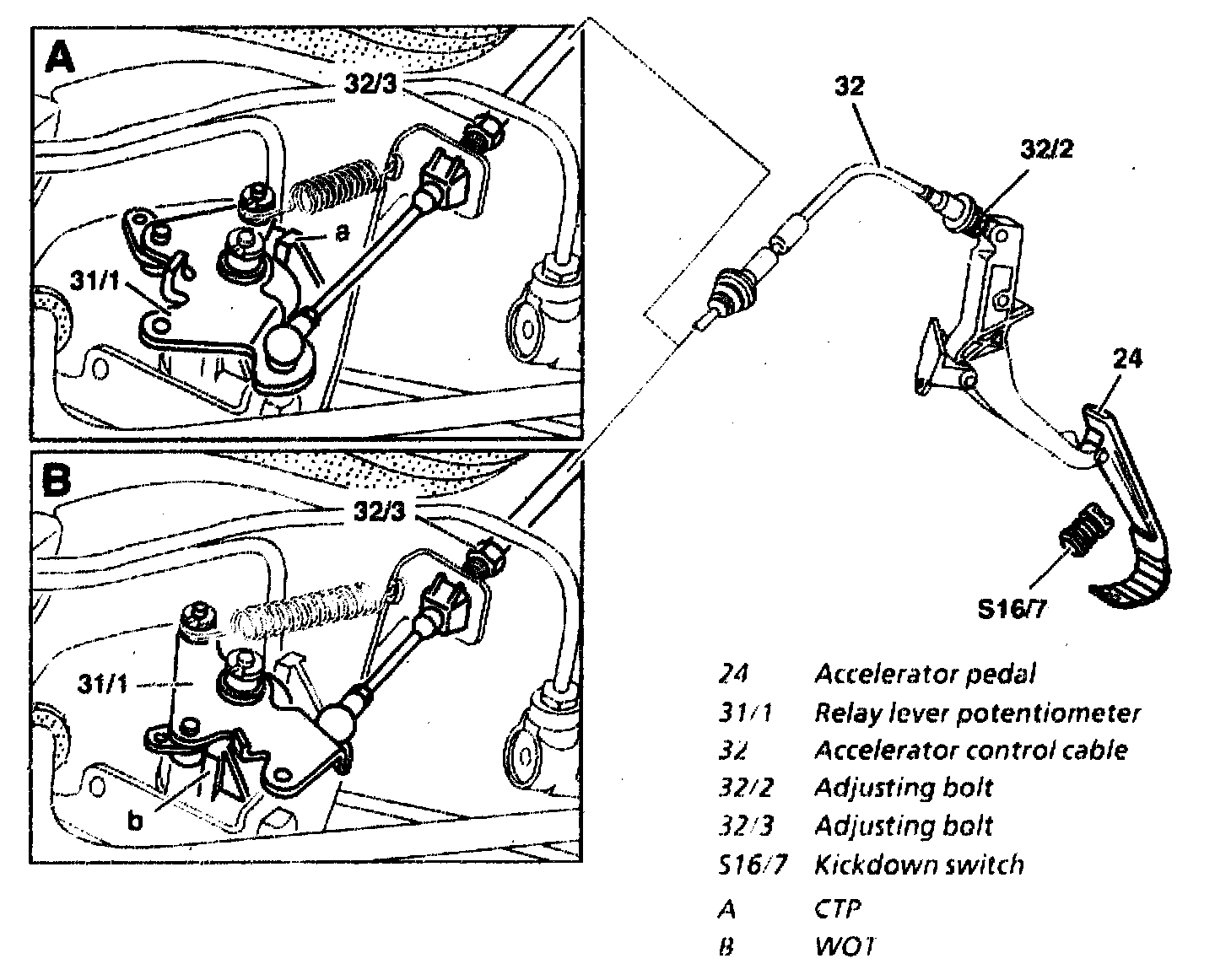

Adjusting Throttle Control
- Automatic Transmission






Model 170 with engine 111.943/973
Model 210 with engine 111.947
Model 210 with engine 112.921/941/






Model 202 with engine 111.944/975/112.910/920
Model 208 with engine 111.944/975/112.940

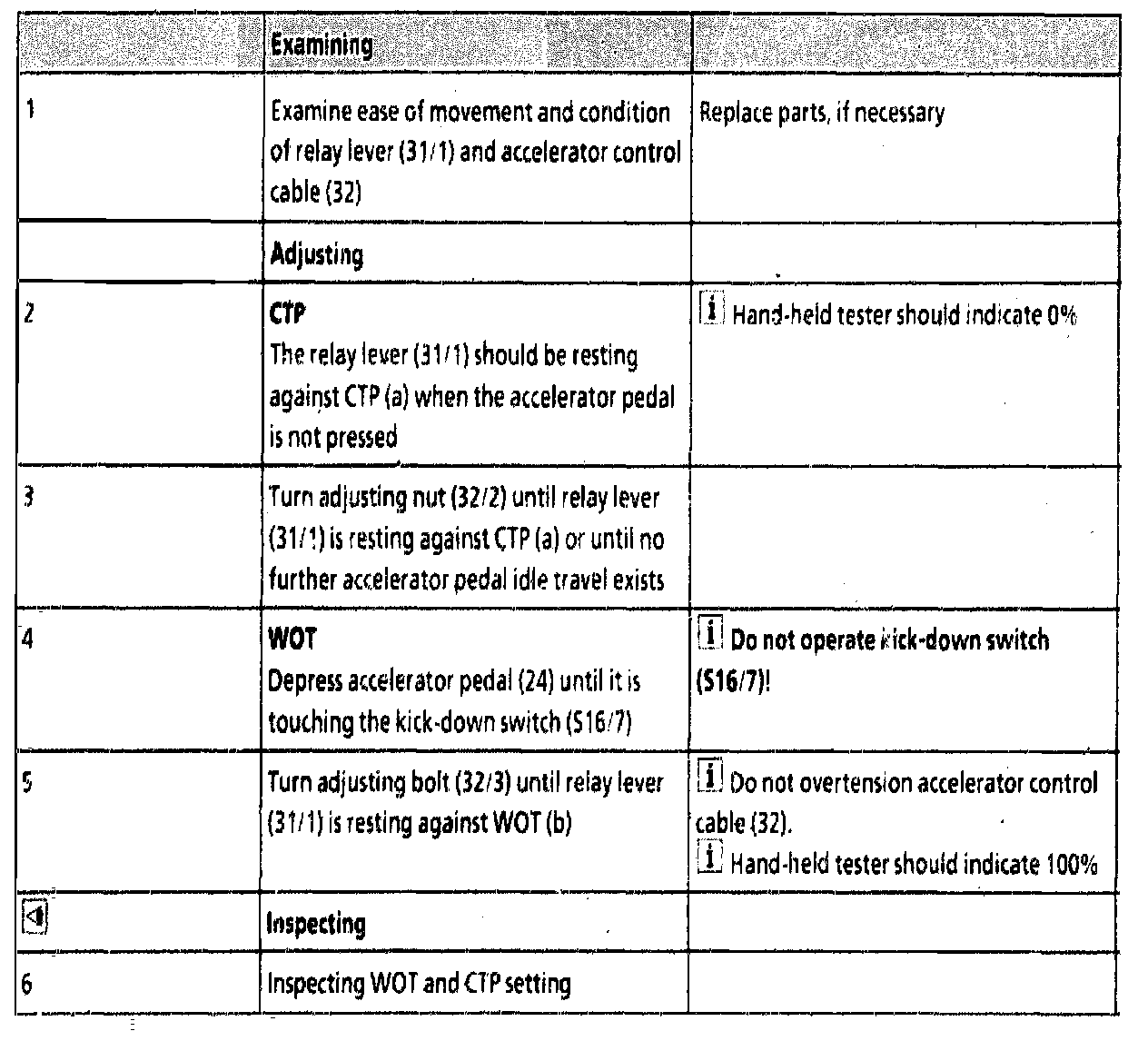

Examining/Adjusting
