AR30.10-P-1010C Adjusting Throttle Control

Adjusting Throttle Control
- Manual Transmission

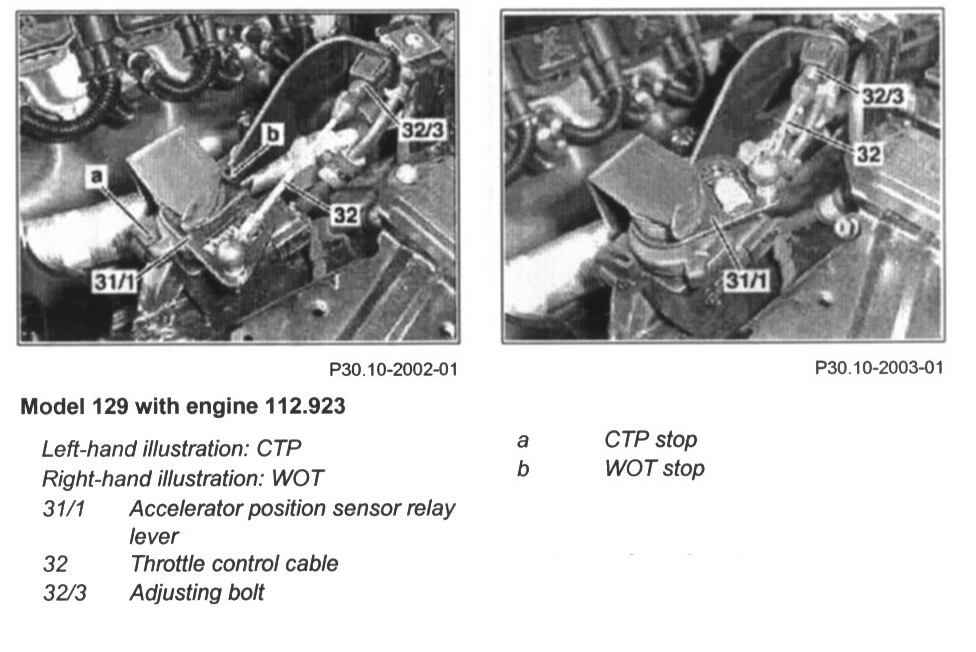

Model 129 With Engine 112.923:

Examining
1 Examine ease of movement and condition of relay lever (31/1) and accelerator control cable (32)
- Replace parts, as necessary

Adjusting
2 CTP

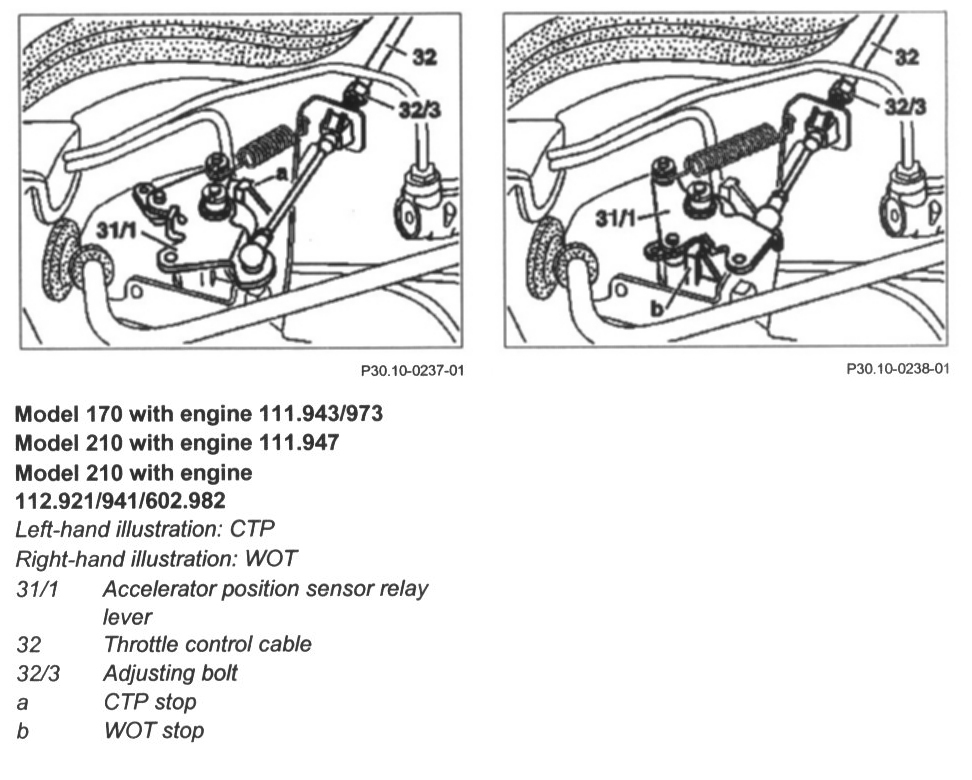

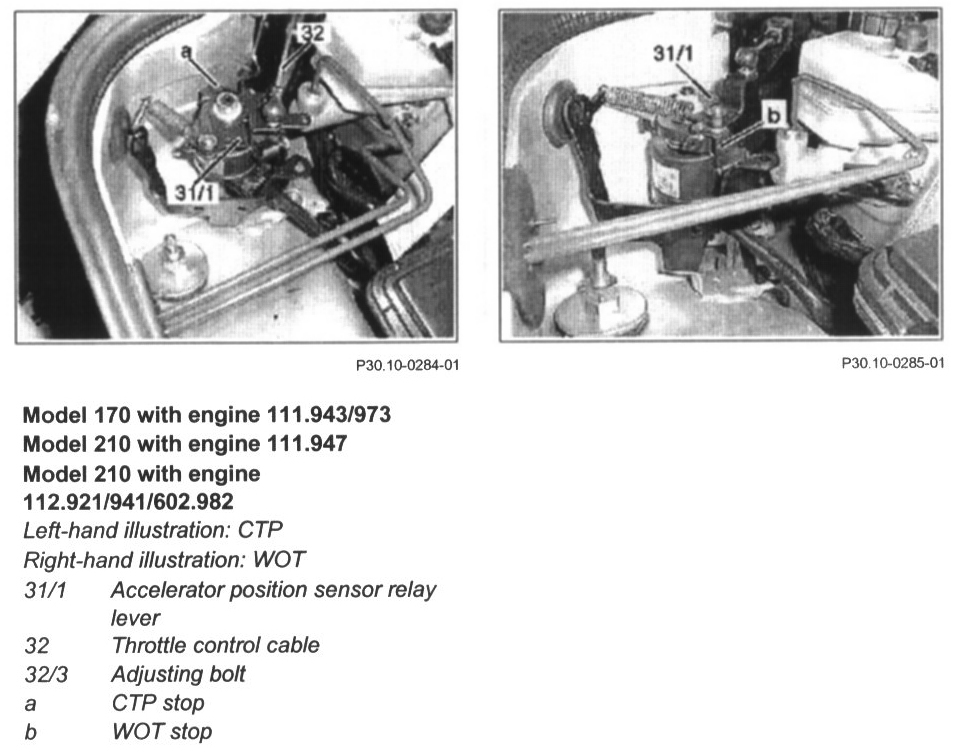

- The relay lever (31/1) must be resting against CTP stop (a)

NOTE: Hand-held tester should indicate 0 %.

3 Turn adjusting bolt (32/3) until relay lever (31/1) is resting against CTP stop (a)
4 WOT
- Depress accelerator until the relay lever (31/1) is resting against WOT stop (b)

NOTE: Hand-held tester should indicate 100 %.

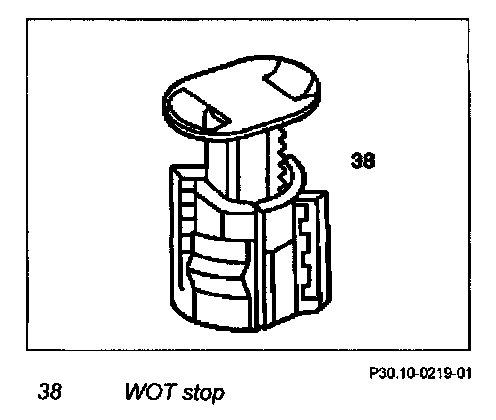

5 Release WOT stop (38) by turning to the left and press accelerator until it makes contact
6 Lock WOT stop (38) in the position it has adopted by tuning to the right

Examining
7 Check WOT and CTP setting
