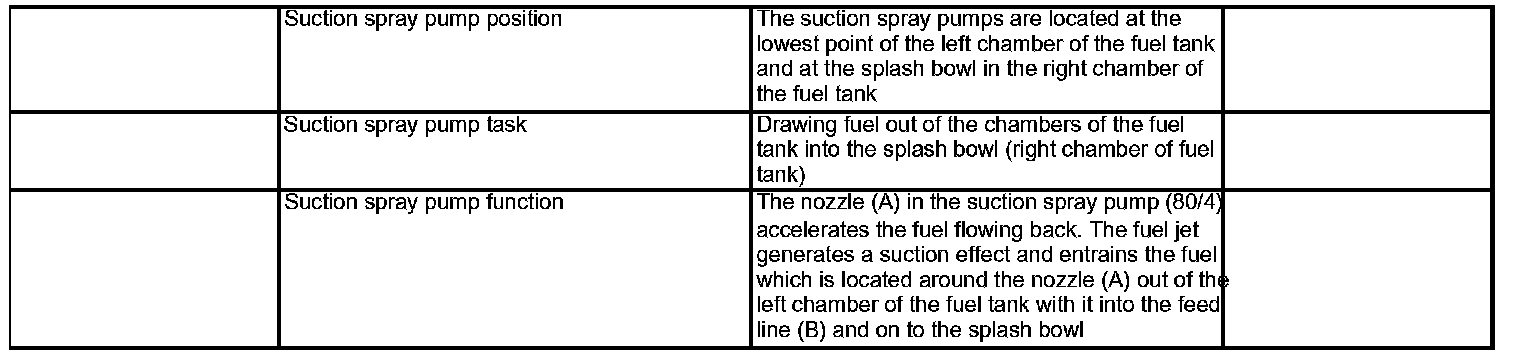

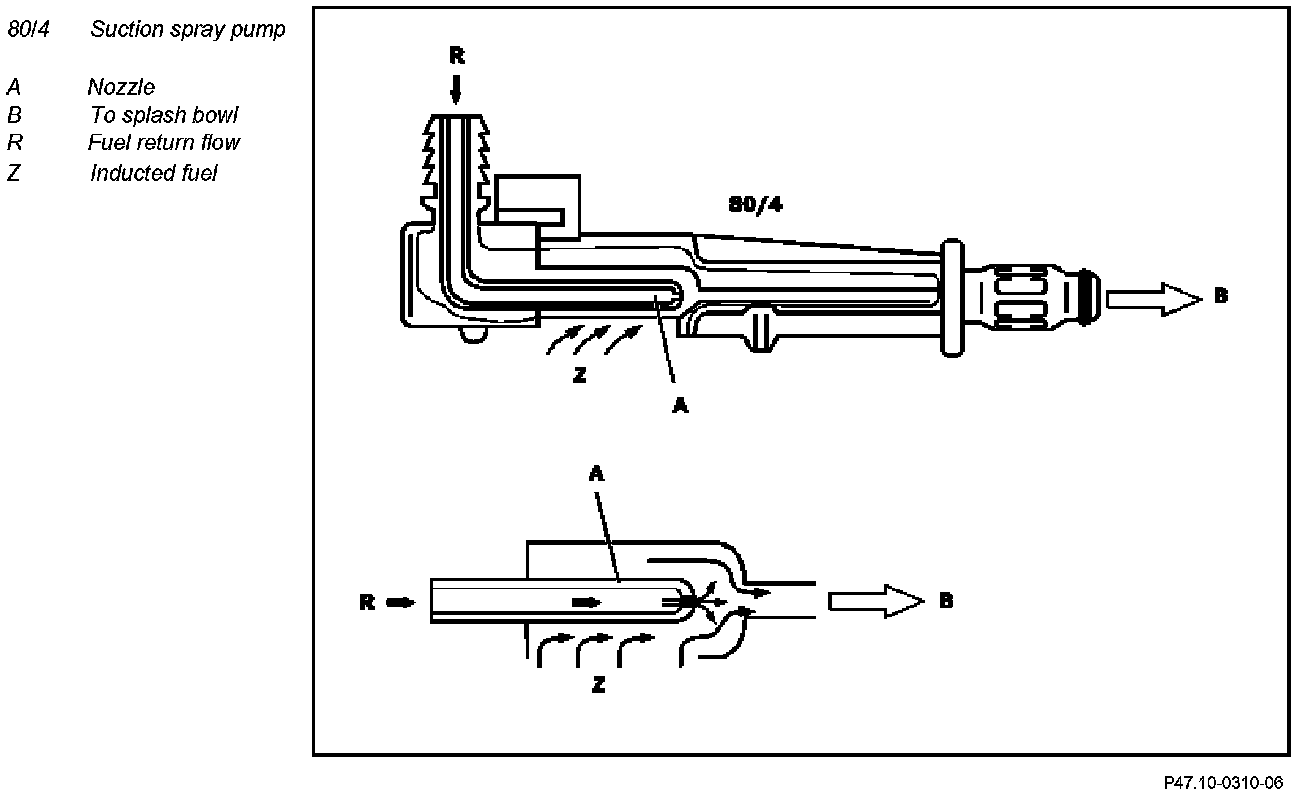

GF47.10-P-3102E Suction Spray Pump Position/Task/Design/Function
GF47.10-P-3102E Suction Spray Pump Position/Task/Design/Function
GF47.10-P-3102E Suction Spray Pump Position/Task/Design/Function
