Firewall Pivot Point With Accelerator Pedal Lever

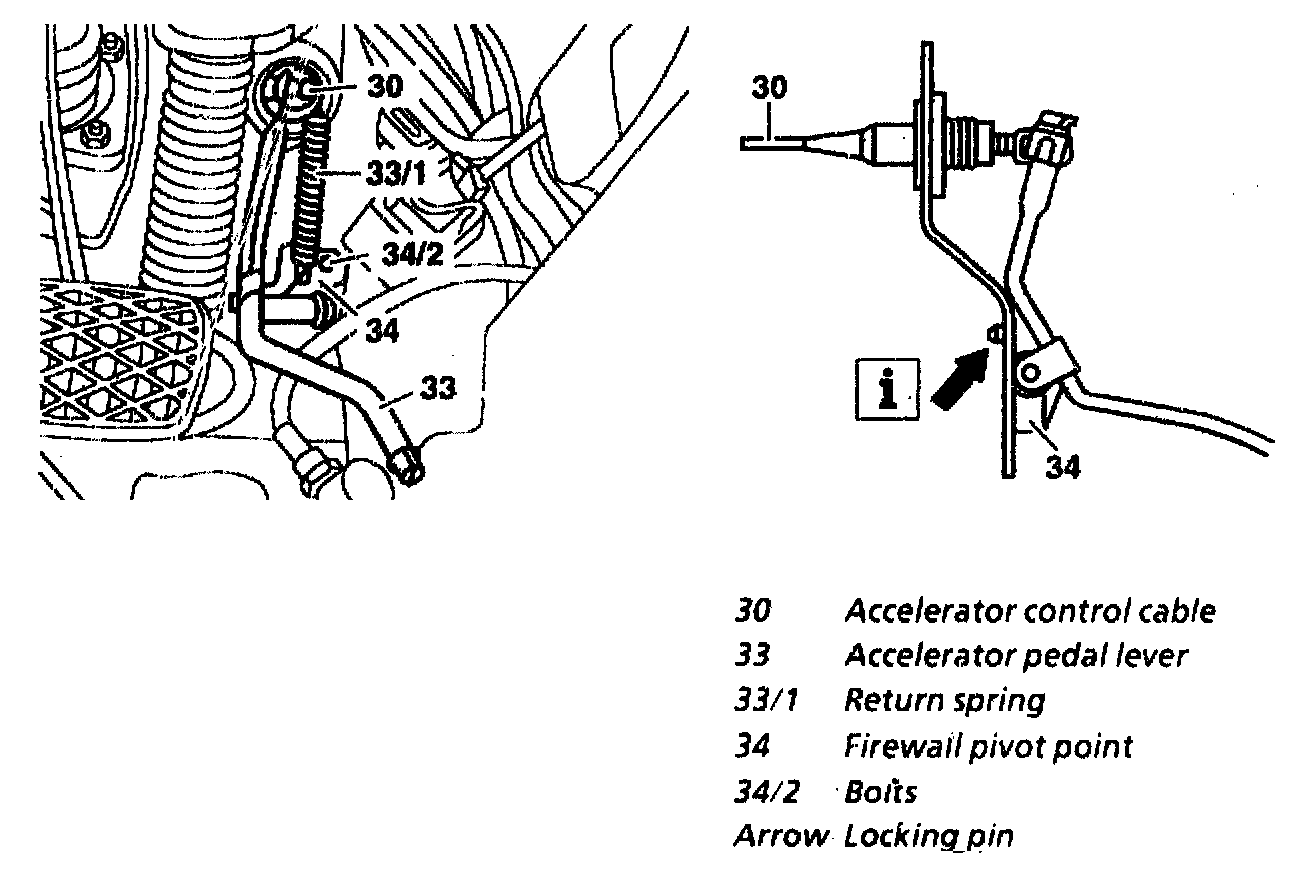

Shown on model 124

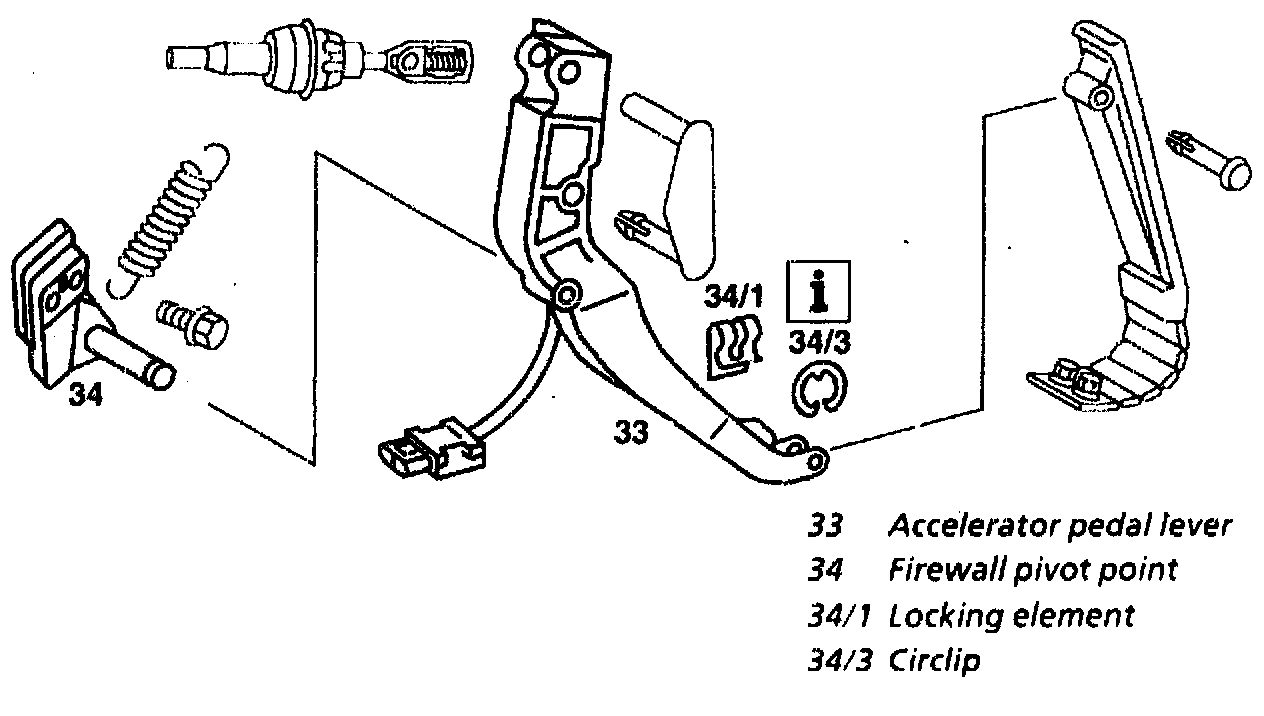

MODEL 129, 140, 202

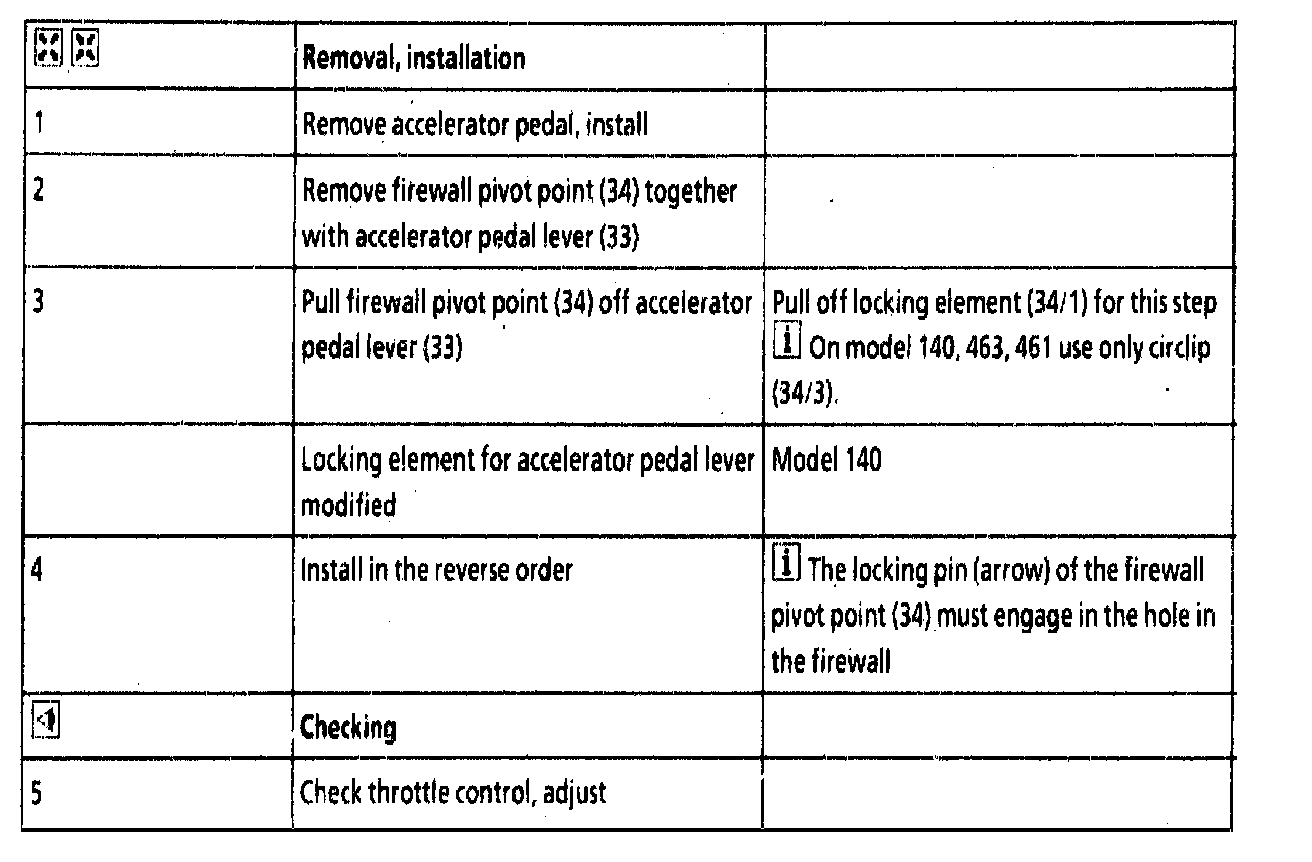

Removal, installation/Checking
