Fuel Overflow Reservoir: Service and Repair

Removing And Installing Expansion Reservoir

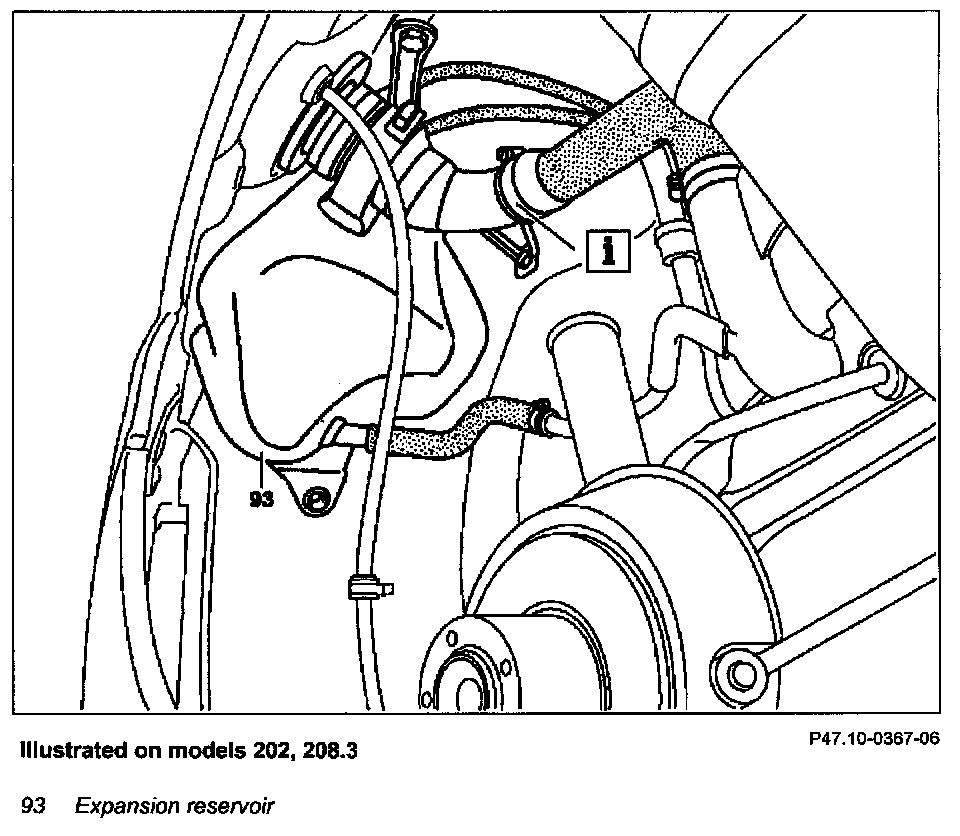

Illustrated On Models 202, 208.3:

Removing/Installing

DANGER:
- Risk of explosion from ignition. Risk of poisoning from inhaling and swallowing fuel Risk of injury as a result of fuel coming into contact with skin and eyes.
- No fire, naked flame or smoking.
- Pour fuels only into suitable and appropriately marked containers.
- Wear protective clothing when handling fuel.

NOTE:
- Hose clip
- If fuel tank is full, pump out about 8 liters of fuel

1 Disconnect vent hoses and connection hose
2 Take expansion reservoir together with filler neck (93) and cup seal down and out

NOTE: Inspect connection, vent hoses and cup seal for reuse, replace if necessary

3 Remove guide funnel
4 Install in the opposite order
