Home >> Mercedes Benz >> 2000 >> C 230K (202.024) L4-2.3L SC (111.975) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Oscilloscope Patterns and Waveforms >> Ignition System >> Ignition System - Signal Survey

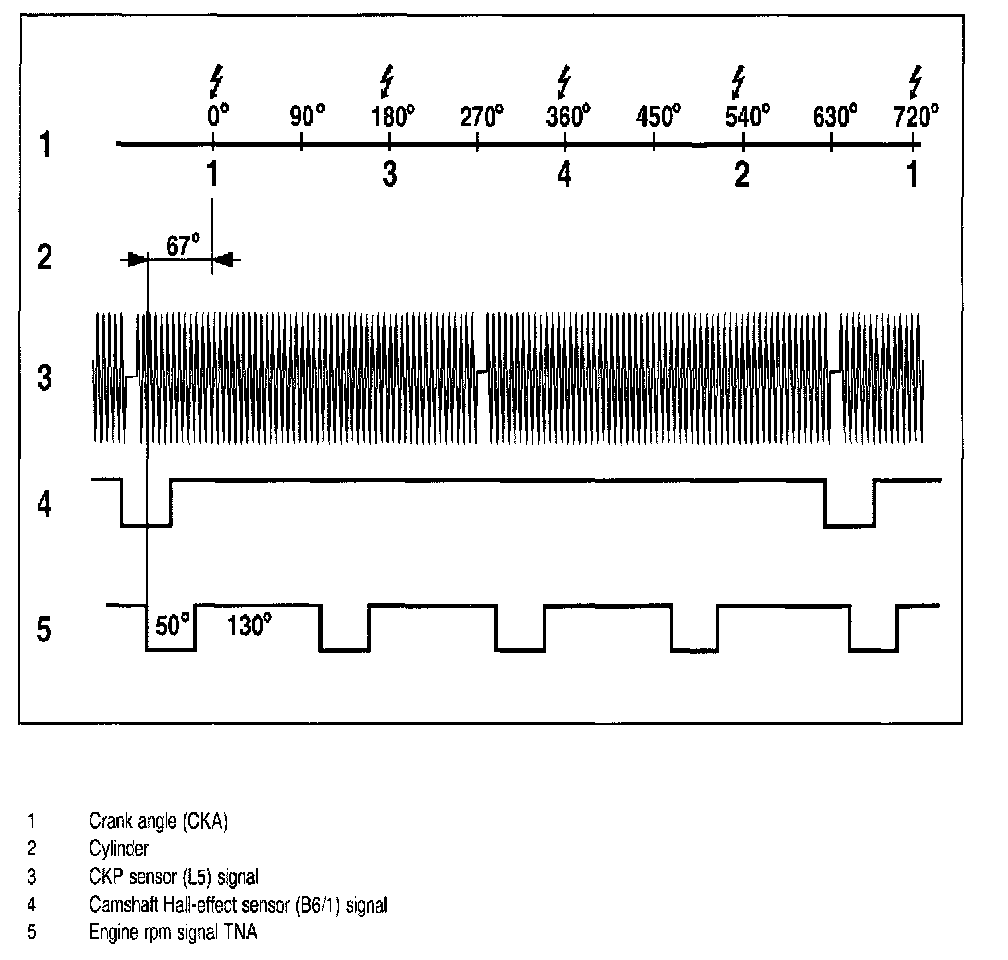

Ignition System - Signal Survey
