Secondary Air Injection Relay, Location

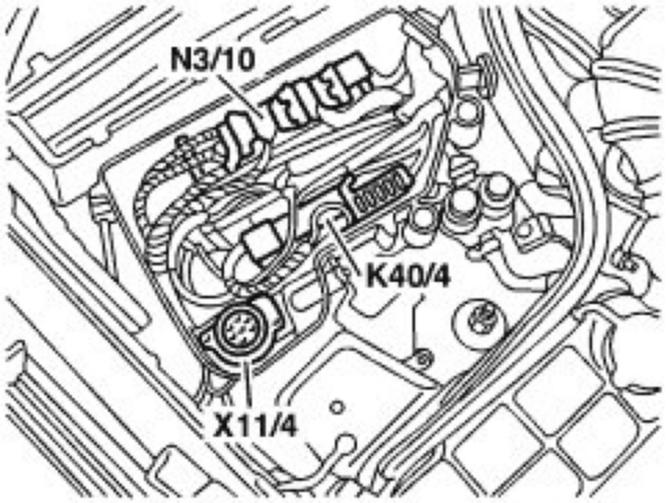

Secondary Air Injection Relay, Position




K40/4 Fuse and relay module

Secondary air injection relay in fuse and relay module
