ME-SFI Control Unit Design

ME-SFI Control Unit, Design

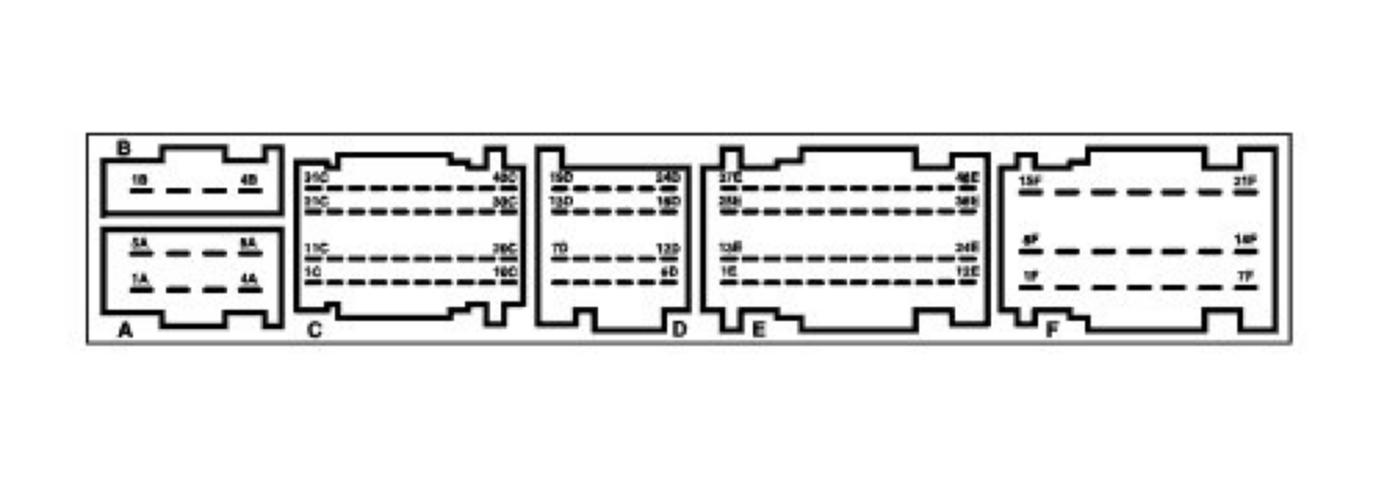

Arrangement of connectors ME-SFI control module with 6 connectors (A - F)
Connectors A - D attached to vehicle
Connectors E and F attached to engine

Aluminium die-cast housing, not watertight. Installed in watertight control module box.
Certain control module boxes with blower.
