Ignition Coils, Location

Ignition Coils, Location

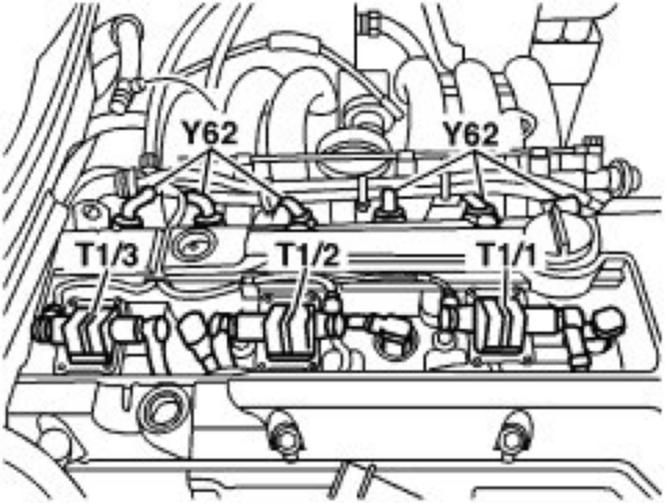

Engine 104
T1/1 Ignition coil cylinders 2 and 5
T1/2 Ignition coil cylinders 3 and 4
T1/3 Ignition coil cylinders 1 and 6

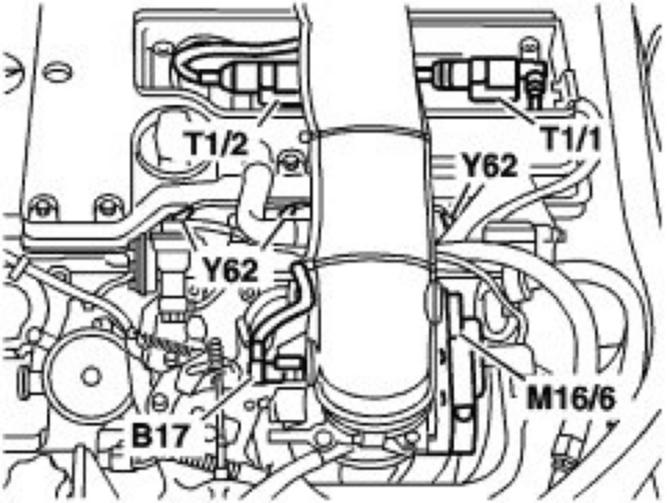

Engine 111, 1st version
T1/1 Ignition coil cylinders 1 and 4
T1/2 Ignition coil cylinders 2 and 3

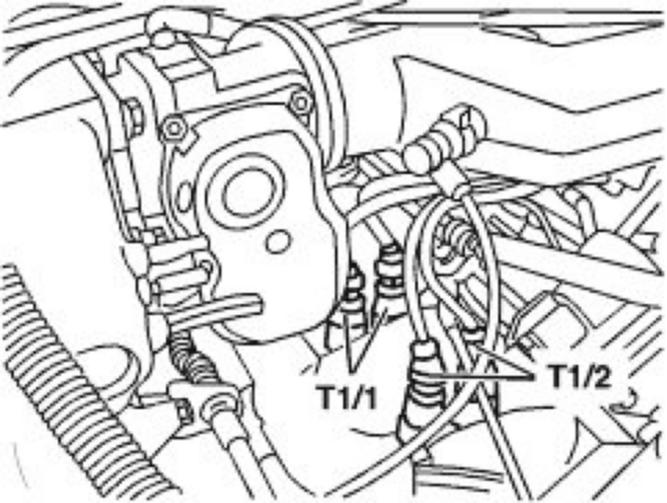

Engine 111, 2nd version
T1/1 Ignition coil, cylinders 1 and 4
T1/2 Ignition coil, cylinders 2 and 3

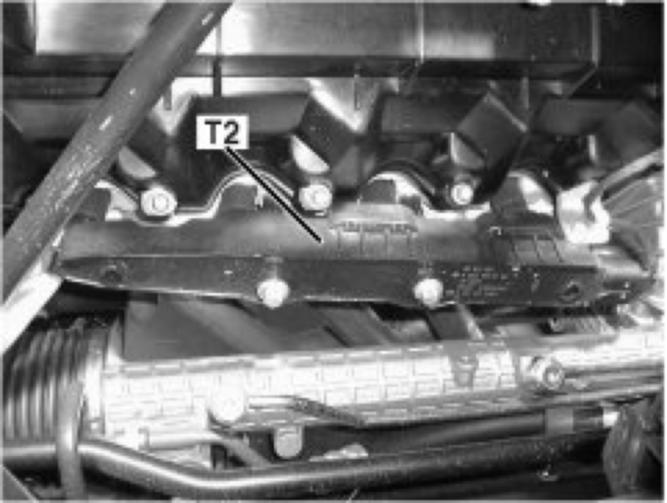

Engine 166
T2 Ignition coil module
