Hot Film Mass Air Flow Sensor, Location

Hot Film Mass Air Flow Sensor, Location

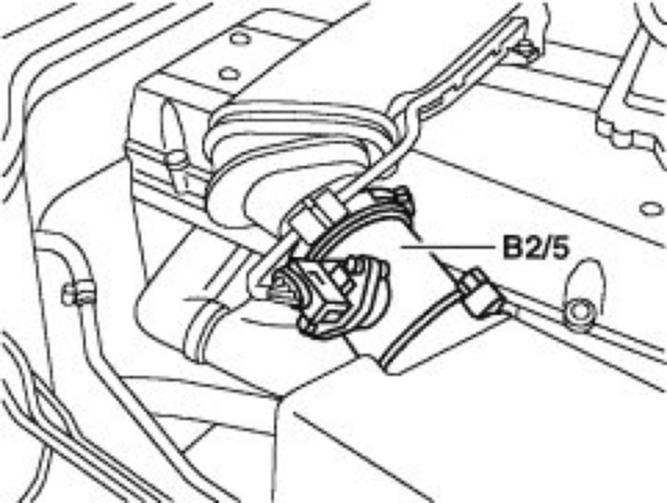

Engine 111 without supercharger
Between air cleaner and intake manifold (in air intake passage)
B2/5 Hot film MAF sensor

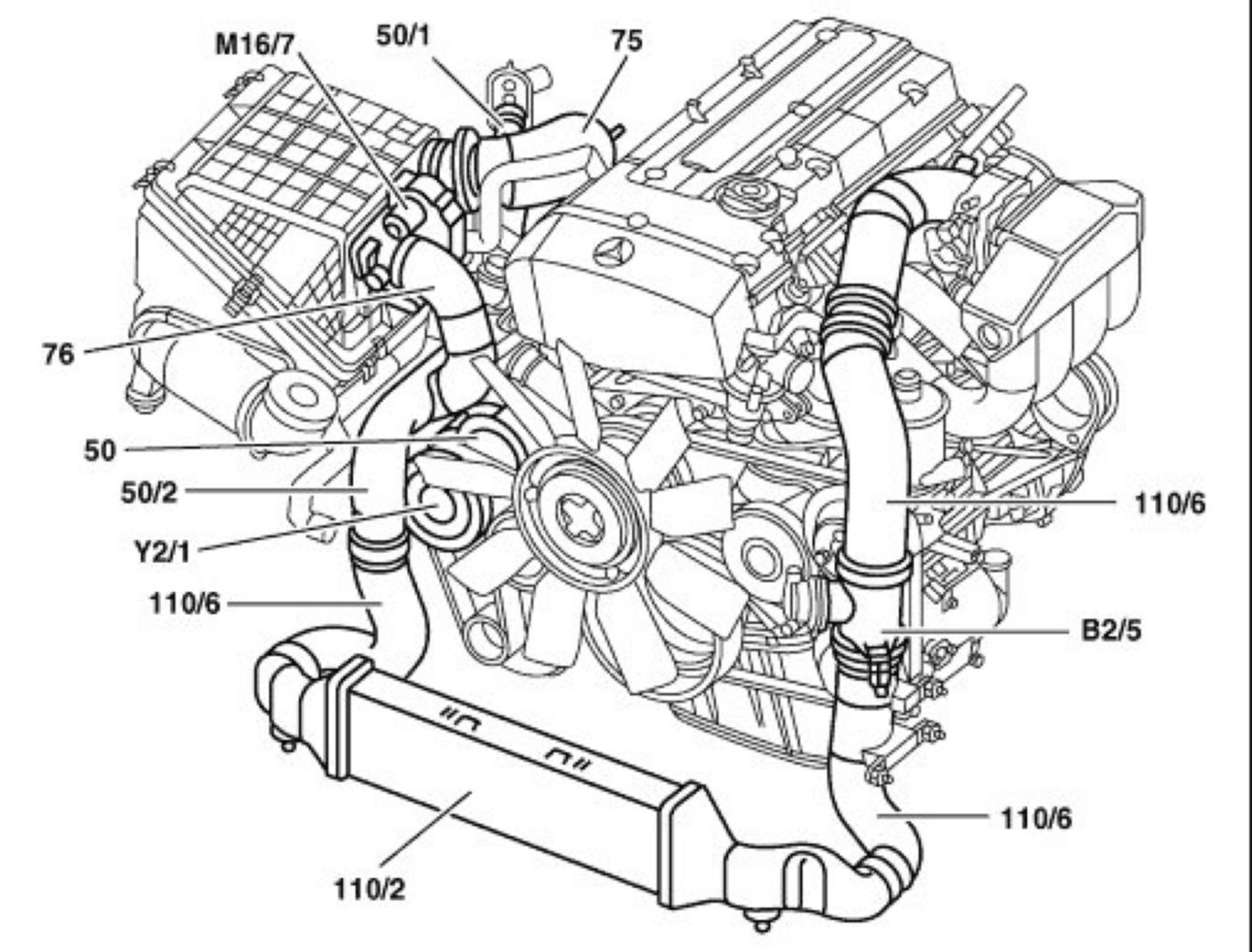

Engine 111.944/975 with supercharger
Between charge air cooler and intake manifold (in intake/charge line)
50 Supercharger
50/1 Intake connection
50/2 Pressure connection/compressor outlet
75 Suction pipe
76 Compensating line
110/2 Charge air cooler
110/6 Intake/charge line
B2/5 Hot film MAF sensor
M16/7 Recirculated air flap actuator
Y2/1 Electromagnetic clutch
