Fuel Tank, Function

Fuel Tank, Function

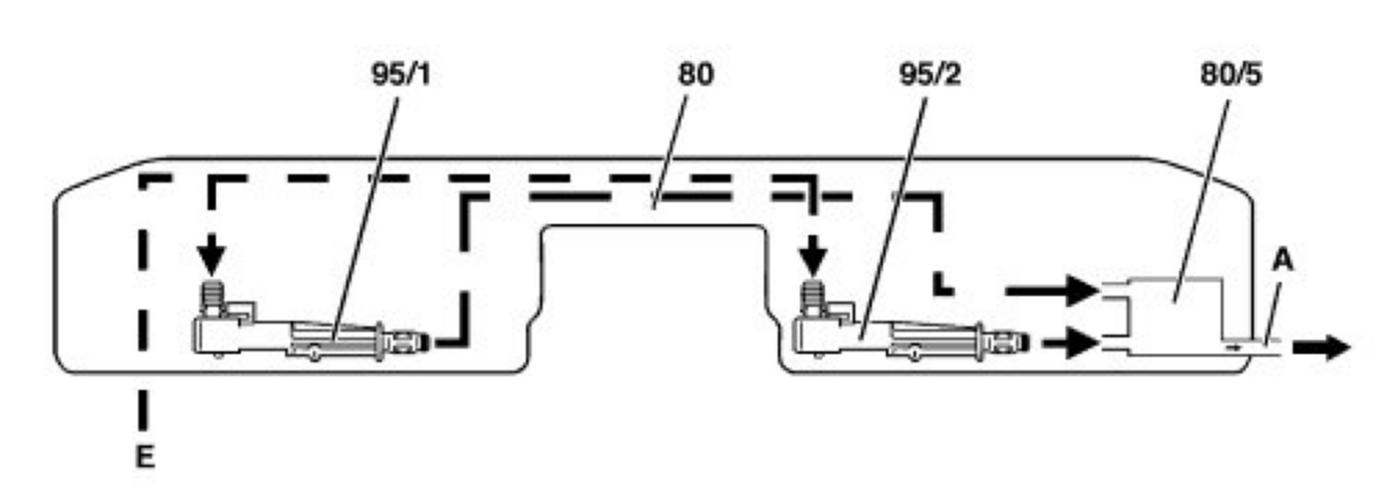

80 Fuel tank
80/5 Splash bowl
95/1 Left suction spray pump
95/2 Right suction spray pump
E Return flow pipe
A Feed pipe

The fuel flows from the return flow pipe (E) as a partial flow through the suction spray pump (95/1) in the left chamber of the fuel tank and the remaining quantity through the second suction spray pump (95/2) in the left chamber of the fuel tank along the connection pipes to the splash bowl (80/5) in the right chamber of the fuel tank.
